Brake Fluid: Bleeding

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

If any work is performed on the brake system or if air in the brake lines is suspected, bleed the air out of the brake system.

NOTE: Wash brake fluid off immediately if it adheres to any painted surface.
  1. FILL RESERVOIR WITH BRAKE FLUID

    Fluid:  SAE J1703 or FMVSS No. 116 DOT3

    Fig 1: Filling Reservoir With Brake Fluid
    G02585214Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. BLEED MASTER CYLINDER

    HINT:

    If the master cylinder has been disassembled or if the reservoir becomes empty, bleed the air out of the master cylinder.

    1. Disconnect the brake lines from the master cylinder.

      SST 09023-00101

      Fig 2: Disconnecting Brake Lines From Master Cylinder
      G02585215Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Slowly depress and hold the brake pedal.
    3. Cover the outer holes with your fingers, and release the brake pedal.
    4. Repeat ( b) and  c) 3 or 4 times.
    5. Connect the brake lines to the master cylinder.

      SST 09023-00101

      Torque:  15 N.m (155 kgf.cm, 11 ft.lbf)

      Fig 3: Connecting Brake Lines To Master Cylinder
      G02585216Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. BLEED BRAKE LINE
    1. Connect the vinyl tube to the bleeder plug.
      Fig 4: Connecting Vinyl Tube To Bleeder Plug
      G02585217Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Depress the brake pedal several times, then loosen the bleeder plug with the pedal depressed.
    3. When fluid stops coming out, tighten the bleeder plug, then release the brake pedal.
    4. Repeat ( b) and ( c) until all air in the fluid is completely bled out.
    5. Tighten the bleeder plug completely.

      Torque:  8.3 N.m (85 kgf.cm, 73 in.lbf)

    6. Repeat the above procedures for each wheel to bleed the air out of the brake line.
  4. BLEED BRAKE ACTUATOR ASSY (W/ VSC)
    NOTE: After bleeding the air from the brake system, if the height or feel of the brake pedal cannot be obtained, perform air bleeding in the brake actuator assy with a hand-held tester by following the procedures below.
    1. Depress the brake pedal more than 20 times with the engine off.
    2. Connect the hand-held tester to the DLC3, and turn the ignition switch to the ON position.

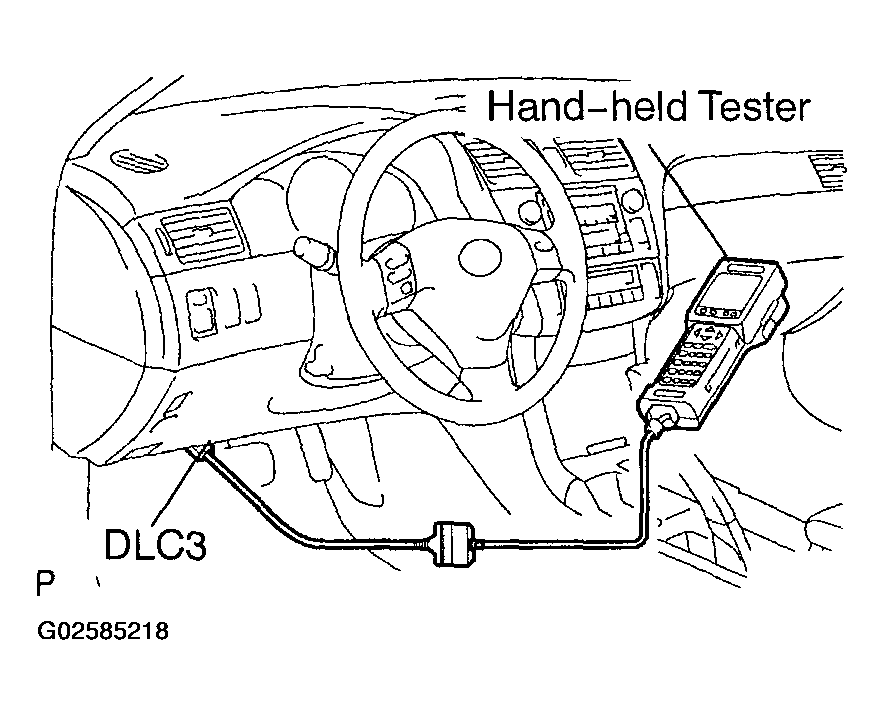

      Fig 5: Connecting Hand-Held Tester To DLC3
      G02585218Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE: Do not start the engine.
    3. Select "AIR BLEEDING" on the hand-held tester.

      HINT:

      Please refer to the hand-held tester operator's manual for further details.

    4. Bleed the air out of the brake line as usual when "Step 1: Increase" appears on the hand-held tester display.
      NOTE:
      • Bleed the air by following the steps displayed on the hand-held tester.
      • Make sure that the brake fluid in the master cylinder reservoir tank does not become empty.
      1. Connect the vinyl tube to either one of the bleeder plugs.
        Fig 6: Connecting Vinyl Tube To Either On Of Bleeder Plugs
        G02585219Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Depress the brake pedal several times, then loosen the bleeder plug connected to the vinyl tube with the pedal depressed.
      3. When fluid stops coming out, tighten the bleeder plug and release the brake pedal.
      4. Repeat  2 and  3 until all air in the fluid is completely bled out.
      5. Tighten the bleeder plug completely.

        Torque:  8.3 N.m (85 kgf.cm, 73 in.lbf)

      6. Repeat the above procedures for each wheel to bleed the air out of the brake line.
    5. Bleed the air out of the suction line when "Step 2: Inhalation" appears on the hand-held tester display.
      NOTE:
      • Bleed the air by following the steps displayed on the hand-held tester.
      • Make sure that the brake fluid in the master cylinder reservoir tank does not become empty.
      1. Connect the vinyl tube to the bleeder plug at the right front wheel or the right rear wheel and loosen the bleeder plug.
      2. Operate the brake actuator assy to bleed the air using the hand-held tester.
      NOTE:
      • This operation stops automatically after 4 seconds.
      • At this time, be sure to release the brake pedal.
    6. Check if the operation has stopped by referring to the hand-held tester display.
    7. Repeat steps ( 2) and ( 3) until all air in the fluid is completely bled out.
    8. Tighten the bleeder plug completely.

      Torque:  8.3 N.m (85 kgf.cm, 73 in.lbf)

    9. Repeat the above procedures to bleed the air out of the brake line for each wheel.
    10. Bleed the air out of the pressure reduction line when "Step 3: Decrease" appears on the hand-held tester display.
      NOTE:
      • Bleed the air by following the steps displayed on the hand-held tester.
      • Make sure that the brake fluid in the master cylinder reservoir tank does not become empty.
      1. Connect the vinyl tube to either one of the bleeder plugs.
      2. Loosen the bleeder plug.
      3. Using the hand-held tester, operate the brake actuator assy, completely depress the brake pedal and keep it.
        NOTE:
        • This operation stops automatically after 4 seconds. When performing this procedure continuously, set an interval of at least 20 seconds.
        • When the operation is complete, the brake pedal goes down slightly. This is a normal phenomenon caused when the solenoid opens.
        • During this procedure, the pedal will feel heavy, but completely depress it so that the brake fluid comes out from the bleeder plug.
        • Be sure to keep depressing the brake pedal. Do not depress and release the pedal repeatedly.
        • Tighten the bleeder plug, then release the brake pedal.
      4. Repeat  2 to  4 until all the air in the fluid is completely bled out.
      5. Tighten the bleeder plug completely.

        Torque:  8.3 N.m (85 kgf.cm, 73 in.lbf)

      6. Repeat the above procedures for each wheel to bleed the air out of the brake line.
    11. Bleed the air out of the brake line as usual again when "Step 4: Increase" appears on the hand-held tester display.
      NOTE:
      • Bleed the air by following the steps displayed on the hand-held tester.
      • Make sure that the brake fluid in the master cylinder reservoir tank does not become empty.
      1. Connect the vinyl tube to either one of the bleeder plugs.
      2. Depress the brake pedal several times, then loosen the bleeder plug connected to the vinyl tube with the pedal depressed.
      3. When fluid stops coming out, tighten the bleeder plug, then release the brake pedal.

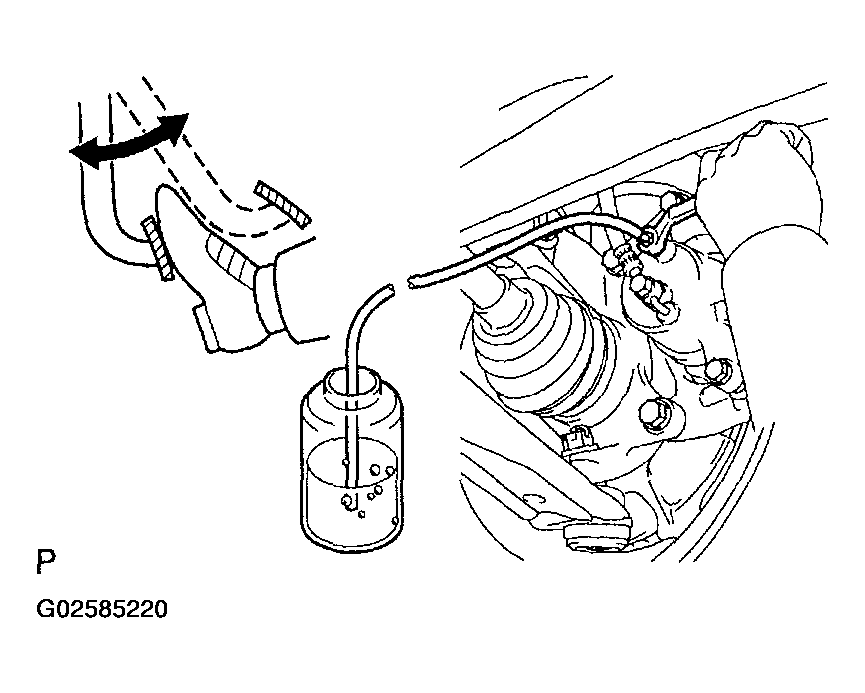

        4. Fig 7: Tightening Bleeder Plug & Releasing Brake Pedal
        G02585220Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      4. Repeat  2 and  3 until all air in the fluid is completely bled out.
      5. Tighten the bleeder plug completely.

        Torque:  8.3 N.m (85 kgf.cm, 73 in.lbf)

      6. Repeat the above procedures for each wheel to bleed the air out of the brake line.
  5. CHECK FLUID LEVEL IN RESERVOIR
    1. Check the fluid level and add fluid if necessary.
      Fig 8: Checking Fluid Level
      G02585221Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Fluid:  SAE J1703 or FMVSS No. 116 DOT3
