Section 821 (Sliding Roof System): Troubleshooting

WARNING: This page is about a different car, the 2003 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.

Sliding Roof does not stop at correct position.

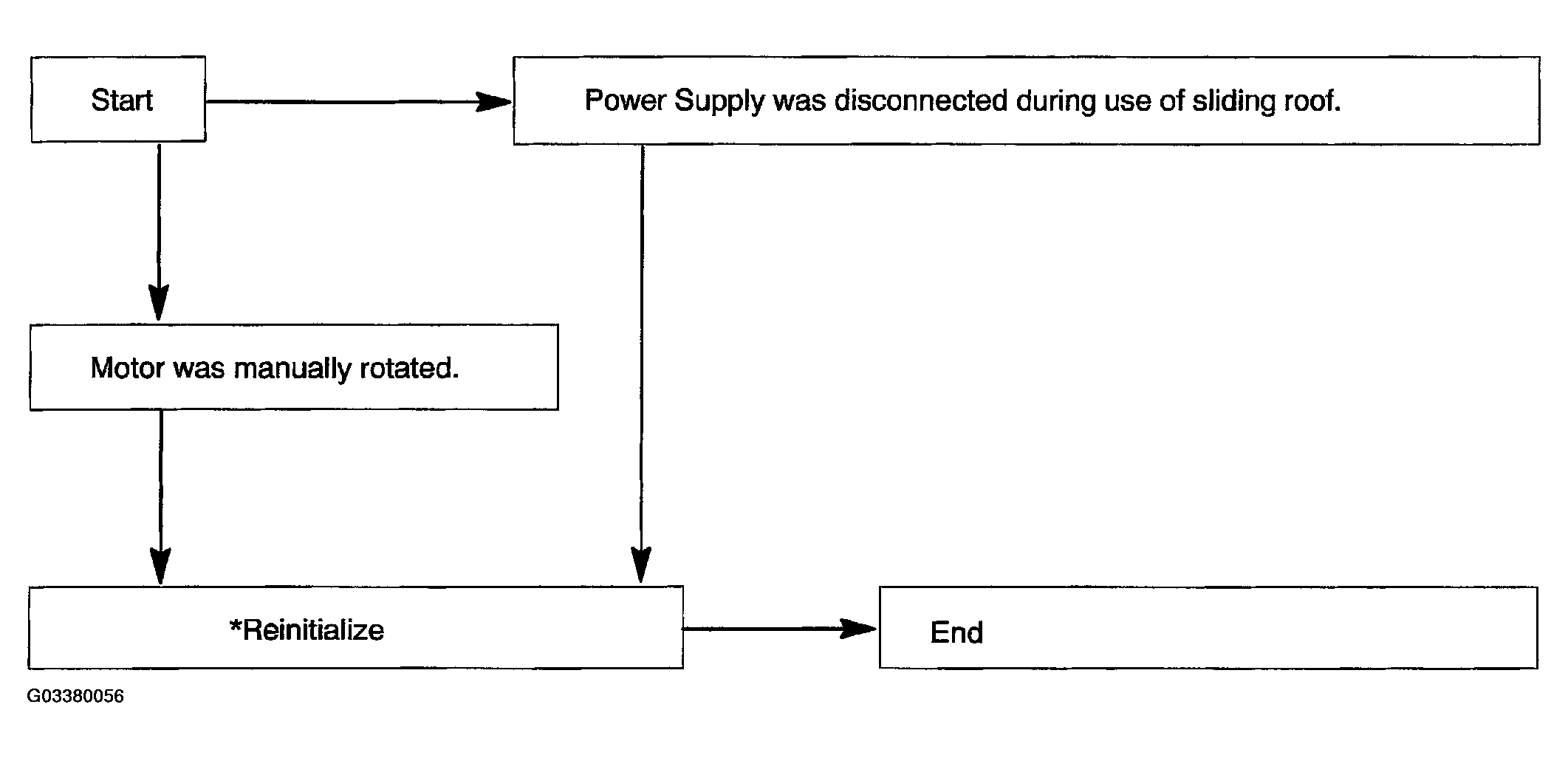

Fig 1: Sliding Roof System Troubleshooting Flow Chart (Correct Position)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Sliding Roof always reopens (anti trap function).

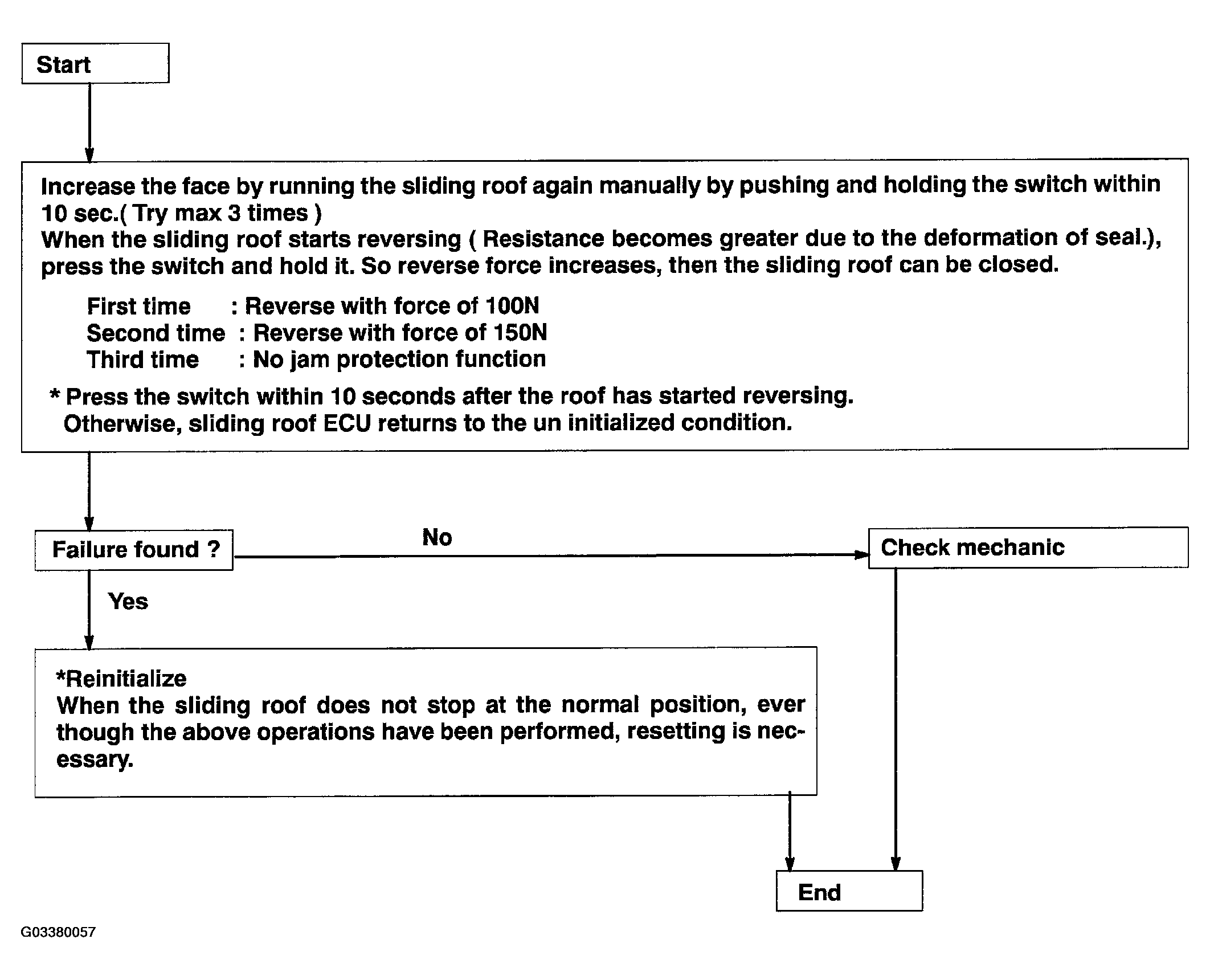

Fig 2: Sliding Roof System Troubleshooting Flow Chart (Anti Trap Function)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*Reinitializing method
1. Move the sliding roof to the maximum tilted position.
2. Release the switch, press the switch again and hold it for 10 secs.
3. The sliding roof operates in a cycle of TILT DOWN --> SLIDE OPEN --> SLIDE CLOSE --> TILT UP. This completes reinitializing.
