Section 811 (Headlight & Taillight System): Removal

HINT:

Follow the same procedure for RH as for LH.

1. Remove a part of LH front fender liner.
2. Remove a part of front bumper cover.
3. Remove the bolt, 2 nuts and 2 clips.

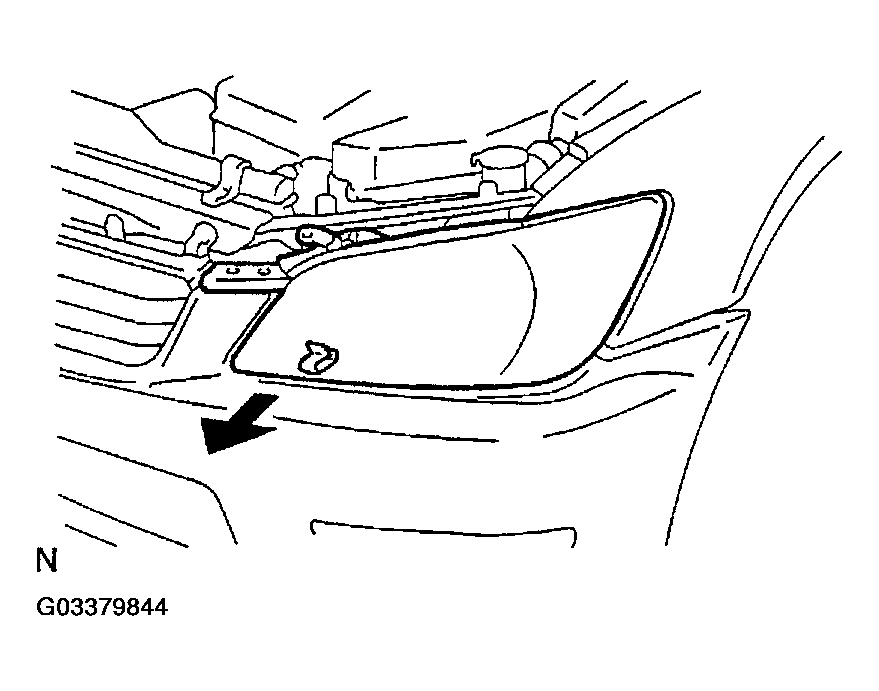

4. Lift up the front bumper and pull the headlight assembly towards the front of the vehicle, and disconnect the engagement of the headlight assembly.

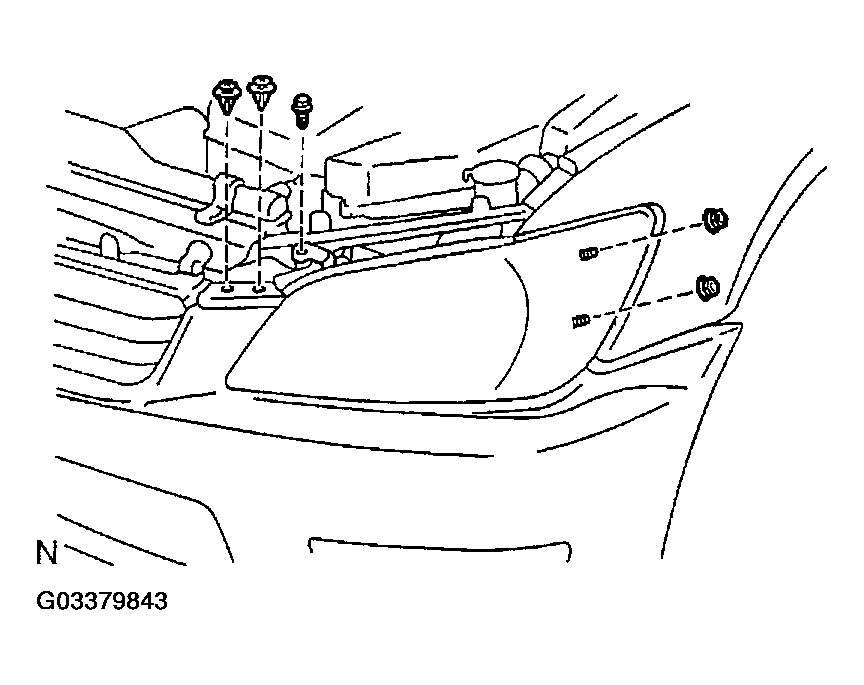

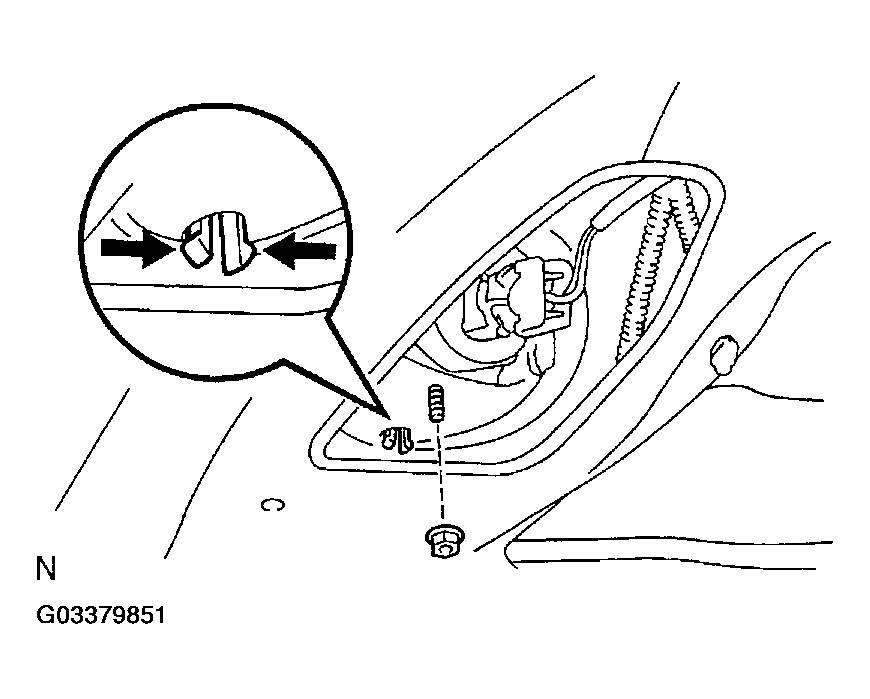

   Fig 1: Removing The Bolt, Nuts And Clips

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Install LH headlight assembly.
6. Install a part of front bumper cover.
7. Install a part of front fender liner.
8. Inspect and adjust optical axis of headlight (See ADJUSTMENT ).
   Fig 2: Installing Part Of Front Fender Liner

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

• Installation is in the reverse order of removal. Only if there is a specified procedure for installation it is shown.
• Follow the same procedure for RH as for LH.

1. Remove luggage compartment trim side cover No. 2.
2. Remove luggage compartment trim rear cover.
3. Remove a part of LH luggage compartment trim side cover.

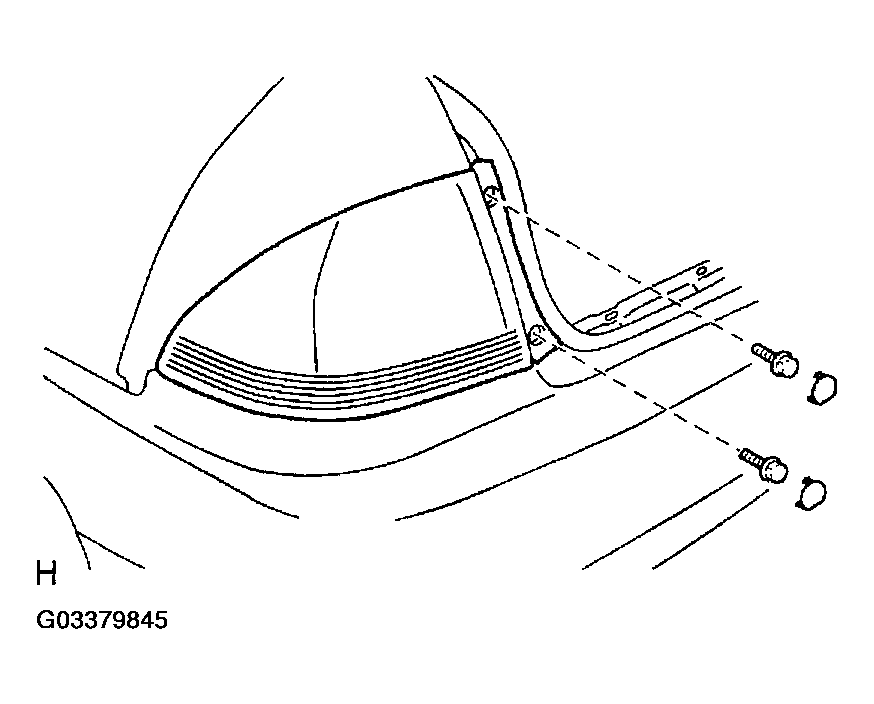

   Fig 3: Removing The Rear Light Covers And Bolts (Sedan)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the 2 rear light covers and 2 bolts.
5. Pull the pin toward the rear of the vehicle, and disconnect the engagement of 2 pins.
6. From the inside of the luggage room, separate the connector and disconnect the LH rear combination light assembly.

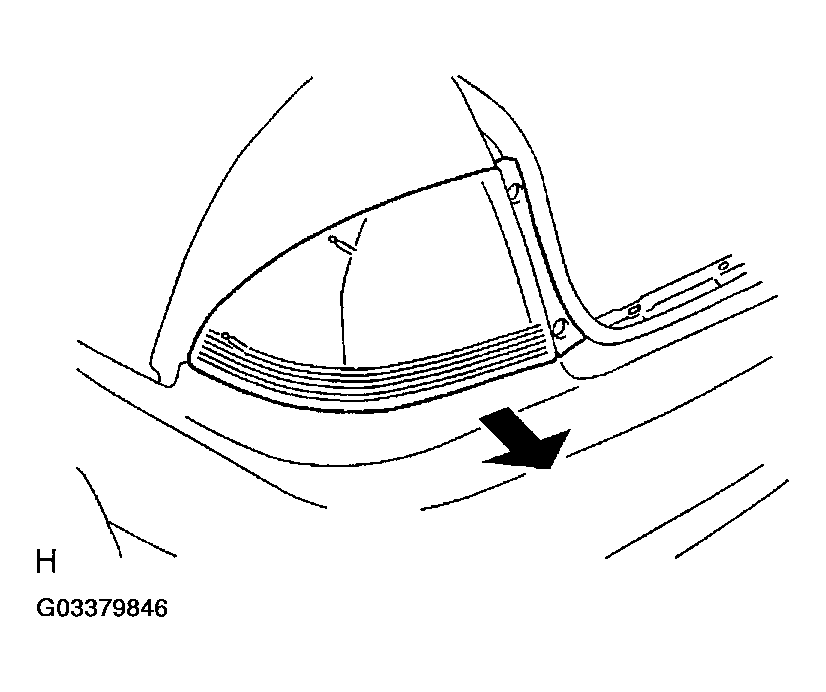

   Fig 4: Removing Rear Combination Light (Sedan)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

• Installation is in the reverse order of removal. Only if there is a specified procedure for installation it is shown.
• Follow the same procedure for RH as for LH.

1. Remove floor board and deck side board LH.
2. Remove back door scuff plate.
3. Remove a part of deck side trim board LH.

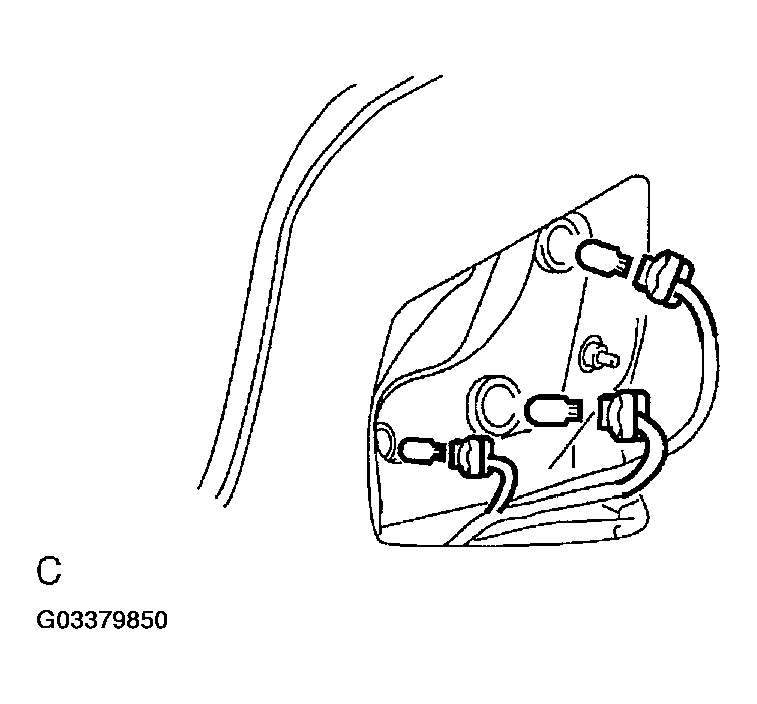

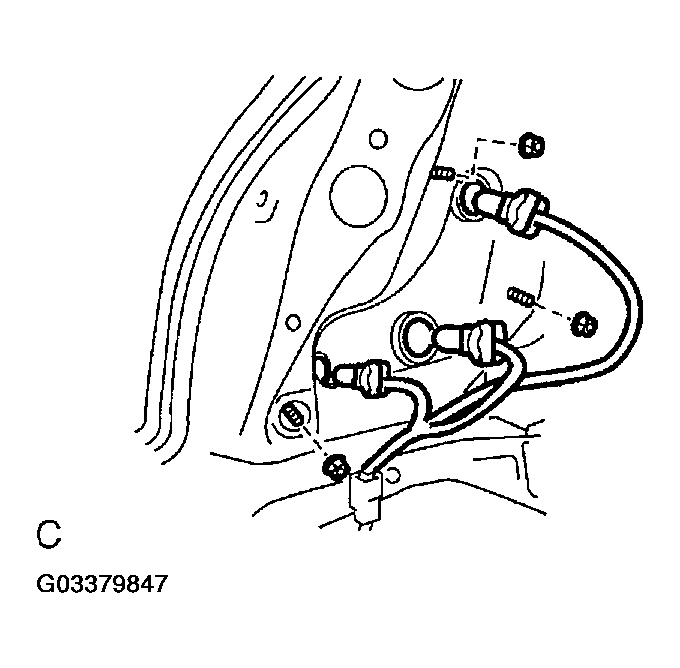

   Fig 5: Disconnecting The Bulb Sockets And Nuts (Wagon)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Disconnect the bulb sockets and 3 nuts.
5. Remove the combination light assembly.

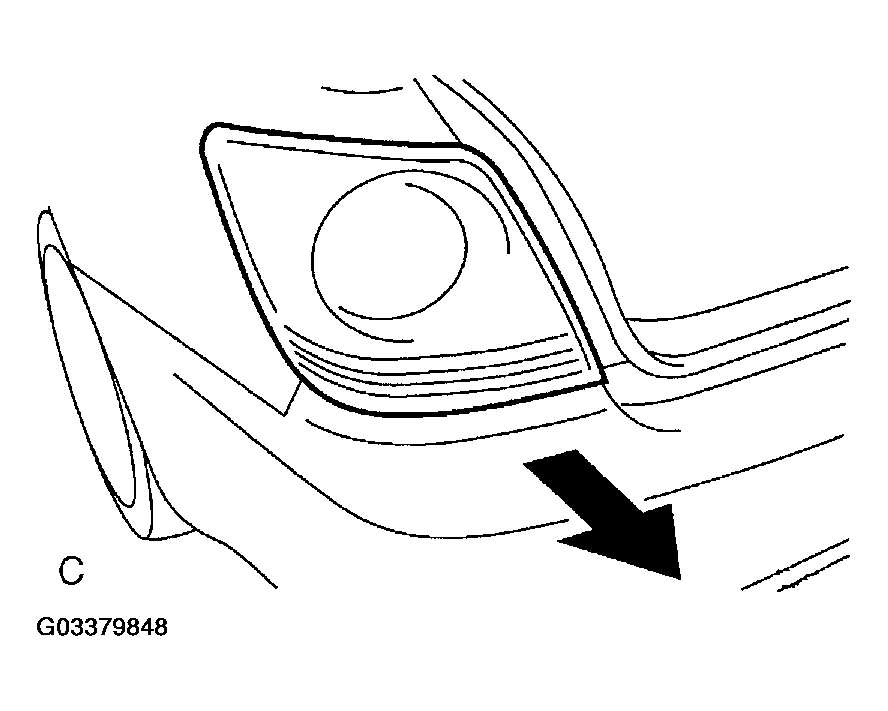

   Fig 6: Removing The Combination Light Assembly (Wagon)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

• Installation is in the reverse order of removal. Only if there is a specified procedure for installation it is shown.
• Follow the same procedure for RH as for LH.

1. Remove a part of LH combination light assembly.

   HINT:

   Remove the light unit from only the outside of the vehicle.

2. Remove the bulb sockets and remove the bulbs.

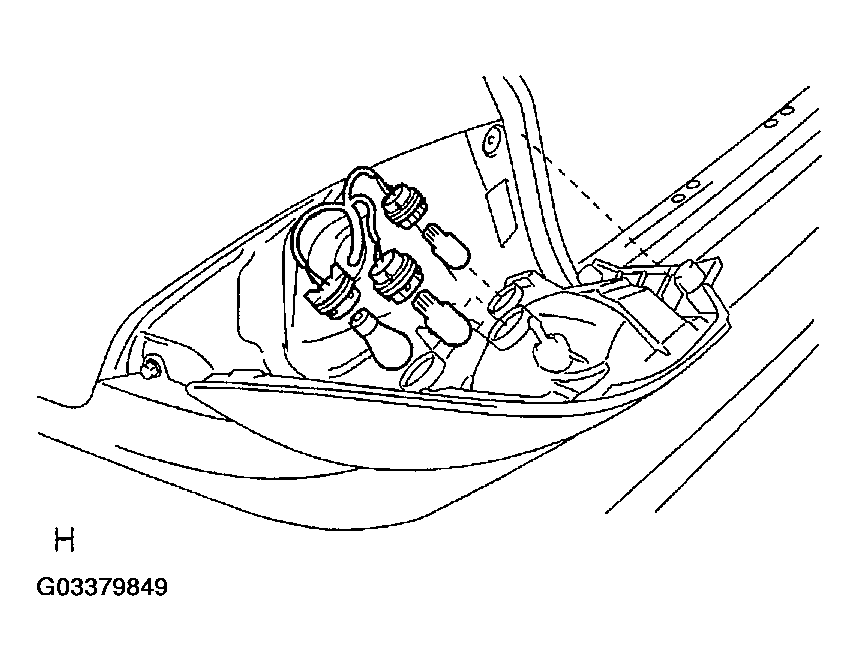

   Fig 7: Removing Rear Combination Bulb (Sedan)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

• Installation is in the reverse order of removal. Only if there is a specified procedure for installation it is shown.
• Follow the same procedure for RH as for LH.

1. Remove a service hole cover.
2. Remove the bulb sockets and remove the bulbs.
   Fig 8: Removing Rear Combination Bulb (Wagon)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

• Installation is in the reverse order of removal. Only if there is a specified procedure for installation it is shown.
• Follow the same procedure for RH as for LH.

1. Remove a part of luggage compartment door trim.
2. Remove the nut.
3. Compress the claw to disconnect the engagement as shown in the illustration.
   Fig 9: Removing Rear Lamp Assembly (Sedan)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Separate the connector and remove the rear light assembly.

HINT:

• Installation is in the reverse order of removal. Only if there is a specified procedure for installation it is shown.
• Follow the same procedure for RH as for LH.

1. Remove the back door trim service hole cover.
2. Compress the claw to disconnect the engagement as shown in the illustration.
3. Separate the connector and remove the rear light assembly.

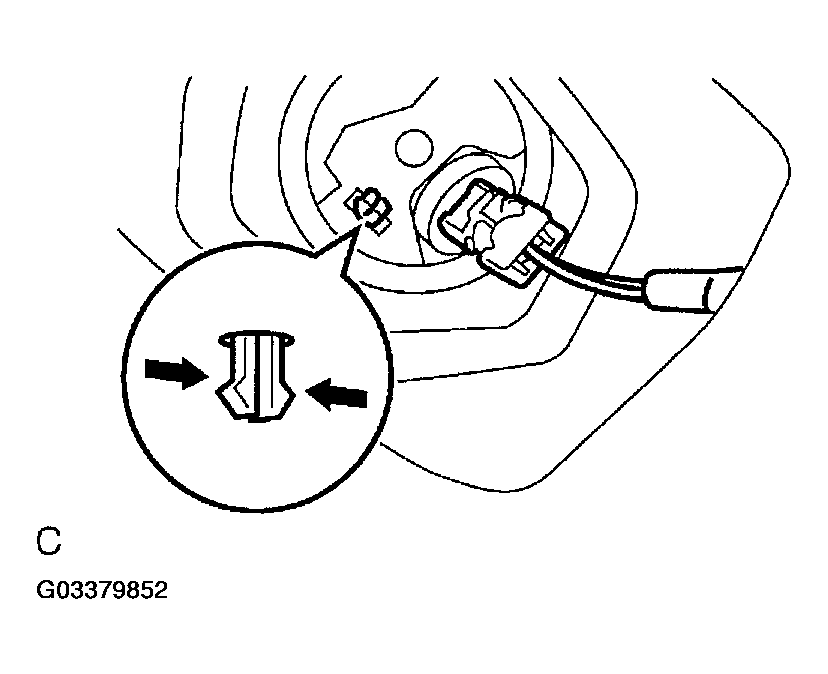

   Fig 10: Removing Rear Lamp Assembly (Wagon)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Installation is in the reverse order of removal. Only if there is a specified procedure for installation it is shown.

1. Remove a part of luggage compartment door trim.
2. Remove the bulb socket and bulb.
   Fig 11: Removing Rear Lamp Bulb (Sedan)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Installation is in the reverse order of removal. Only if there is a specified procedure for installation it is shown.

1. Remove the back door trim service hole cover.
2. Remove the bulb socket and bulb.

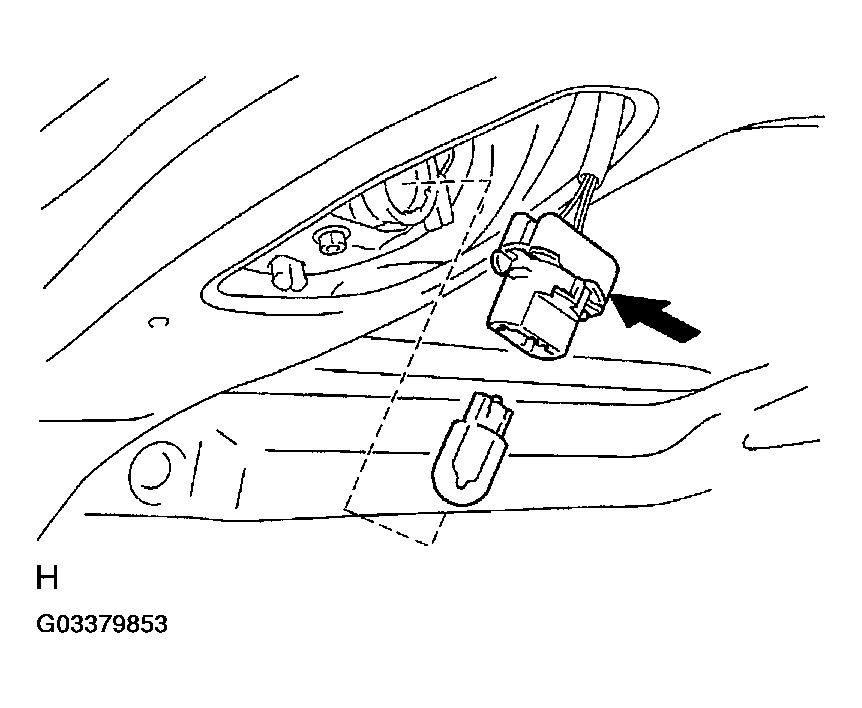

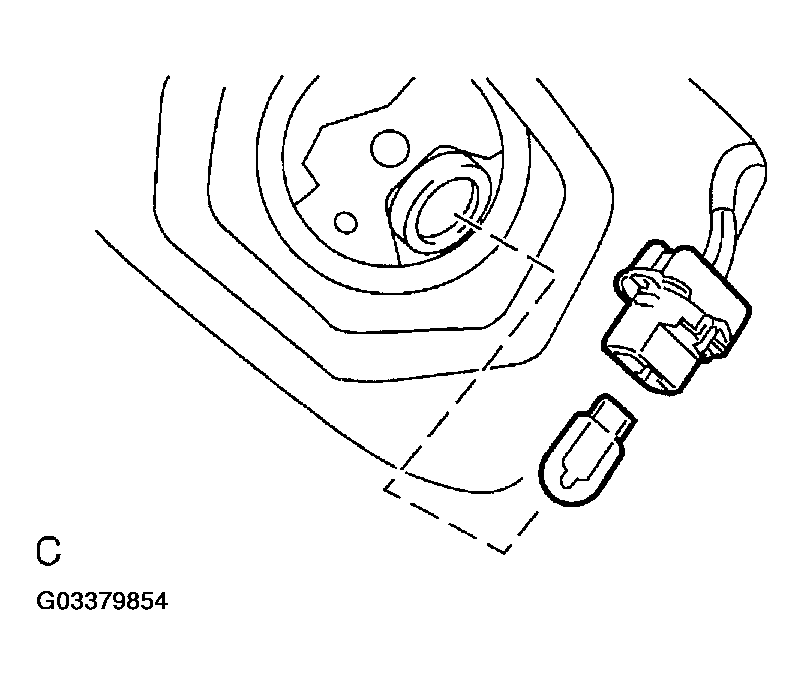

   Fig 12: Removing The Bulb Socket And Bulb (Wagon)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
