Section 707 (Throttle Body Assembly (3MZ-FE)): Replacement

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.
  1. DRAIN ENGINE COOLANT (See  REPLACEMENT  )
  2. w/ Performance rod:

    REMOVE FRONT SUSPENSION UPPER BRACE CENTER

    1. Remove the 2 nuts and upper brace.
  3. REMOVE V-BANK COVER SUB-ASSY
    1. Using a 5 mm socket hexagon wrench, remove the 3 nuts.
    2. Remove the V-bank cover.

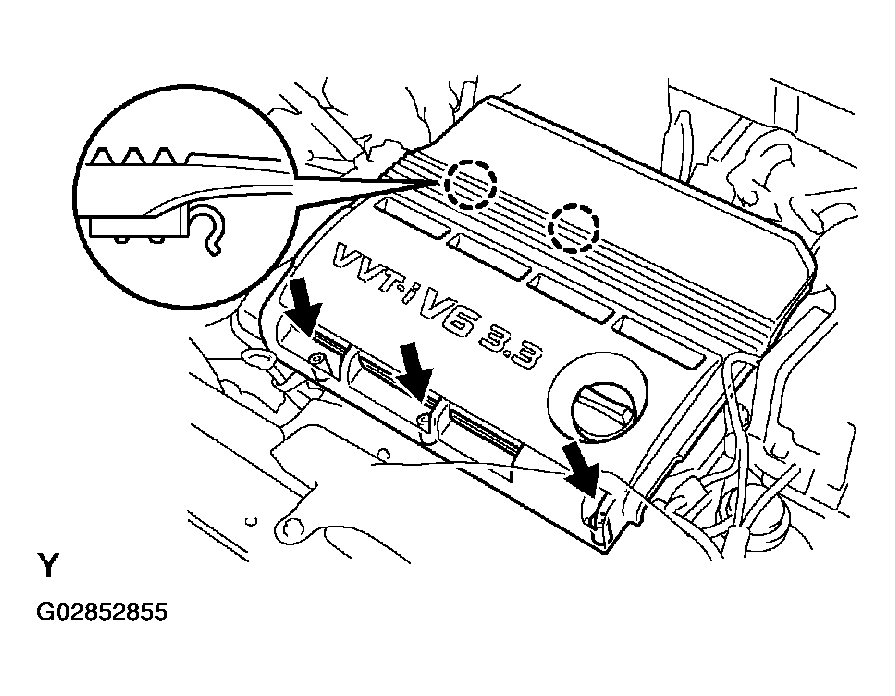

    Fig 1: Removing V-Bank Cover
    G02852855Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE AIR CLEANER INLET NO. 2 (See  REMOVAL & INSTALLATION (V6)  )
  5. REMOVE AIR CLEANER ASSY (See  REMOVAL & INSTALLATION (V6)  )
  6. REMOVE INTAKE AIR RESONATOR
    1. Remove the ventilation hose No. 2.
    2. Remove the fuel vapor feed hose from the 2 hose clamps.
    3. Loosen the air cleaner hose clamp bolt, and then remove the intake air resonator.

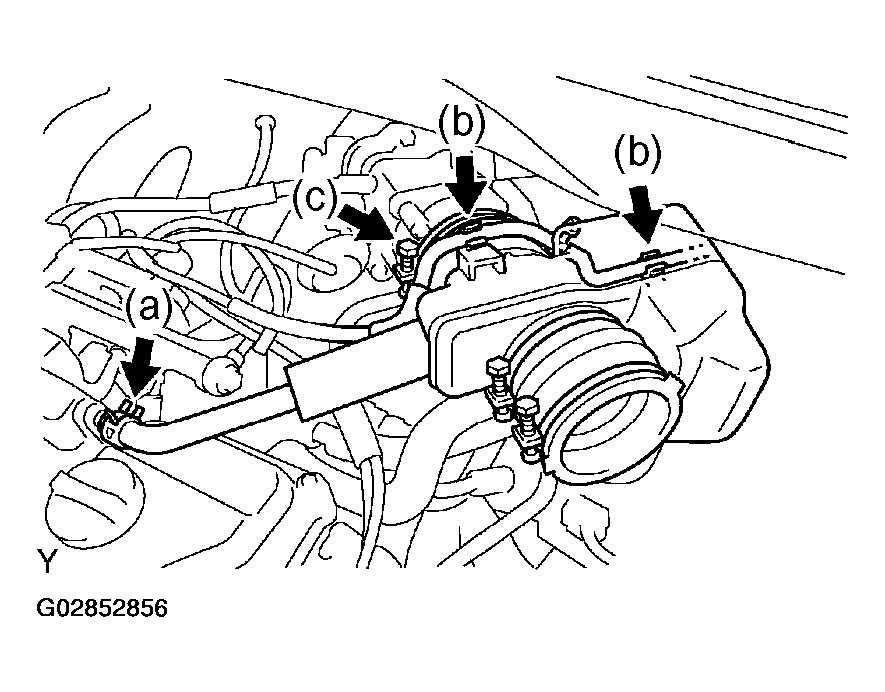

    Fig 2: Removing Intake Air Resonator
    G02852856Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE THROTTLE BODY ASSY
    1. Disconnect the throttle control motor & throttle position sensor connector.

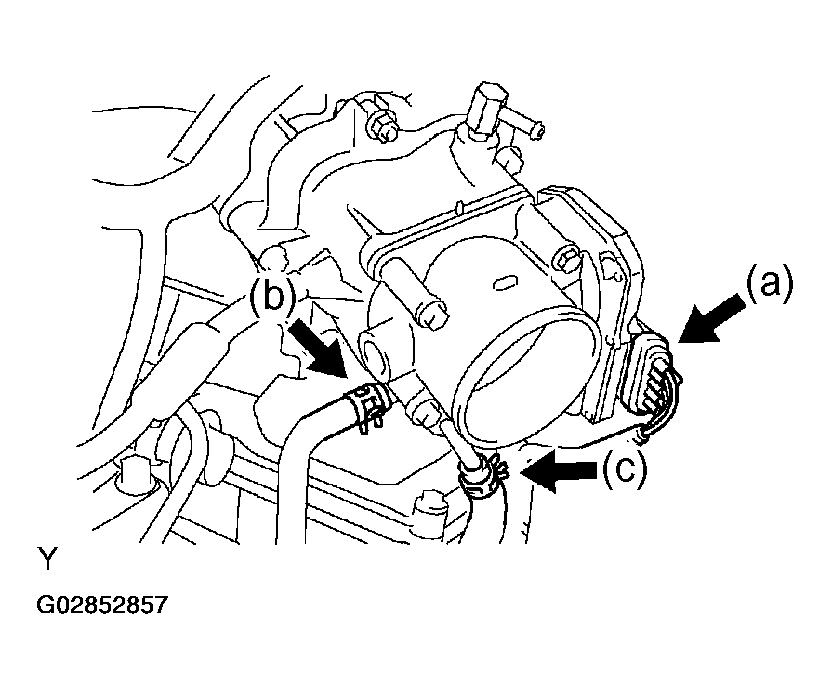

      Fig 3: Disconnecting Throttle Control Motor & Throttle Position Sensor
      G02852857Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the water by-pass hose No. 2.
    3. Disconnect the water by-pass hose No. 3.
    4. Remove the 2 bolts, 2 nuts and throttle body.
    5. Remove the gasket.

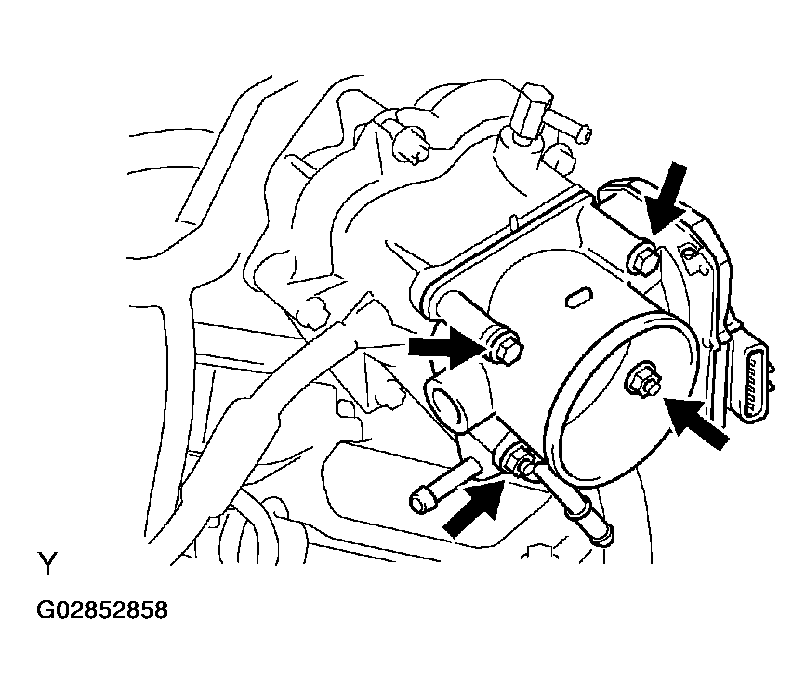

    Fig 4: Removing Throttle Body
    G02852858Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL THROTTLE BODY ASSY
    1. Install a new gasket to the intake air connector.
    2. Install the throttle body with the 2 bolts and 2 nuts.

      Torque:  11 N.m (112 kgf.cm, 8 ft.lbf)

    3. Connect the water by-pass hose No. 3.
    4. Connect the water by-pass hose No. 2.
    5. Connect the throttle control motor & throttle position sensor connector.
  9. INSTALL INTAKE AIR RESONATOR
  10. INSTALL AIR CLEANER ASSY (See  REMOVAL & INSTALLATION (V6)  )
  11. INSTALL AIR CLEANER INLET NO. 2 (See  REMOVAL & INSTALLATION (V6)  )
  12. CHECK CONNECTION OF VACUUM HOSE (See  REPLACEMENT  )
  13. ADD ENGINE COOLANT (See  REPLACEMENT  )
  14. CHECK FOR ENGINE COOLANT LEAKS (See  ON-VEHICLE INSPECTION  )
  15. INSTALL V-BANK COVER SUB-ASSY
    1. Fit the 2 retainers and install the V-bank cover.
    2. Using a 5 mm socket hexagon wrench 5, tighten the 3 nuts.

      Torque:  7.9 N.m (81 kgf.cm, 70 in.lbf)

  16. w/ Performance Rod:

    INSTALL FRONT SUSPENSION UPPER BRACE CENTER

    1. Install the upper brace with the 2 nuts.

      Torque:  80 N.m (815 kgf.cm, 59 ft.lbf)
