Combination Meter ASSY: Overhaul

WARNING: This page is about a different car, the 2004 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

COMPONENTS: See COMPONENTS

REMOVE INSTRUMENT CLUSTER FINISH PANEL (See REPLACEMENT )
REMOVE COMBINATION METER ASSY
1. Remove the 2 screws and disengage the 2 clips.
2. Disconnect the connectors and remove the combination meter assy.

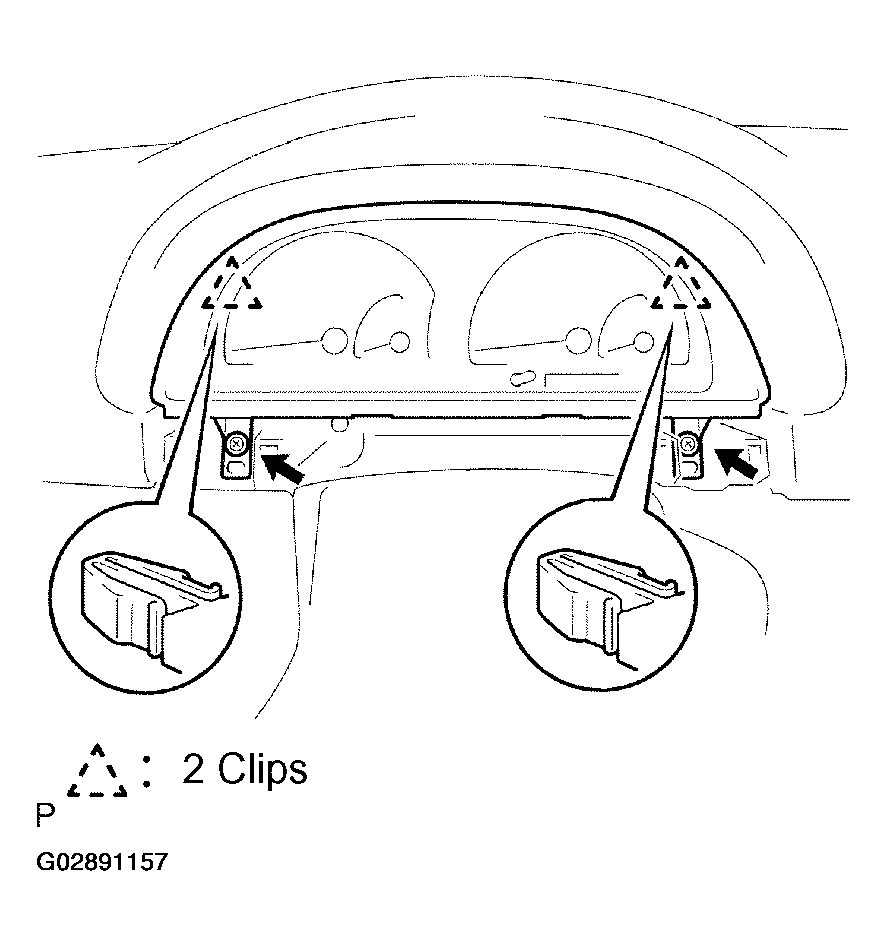

  Fig 1: Removing Combination Meter Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE COMBINATION METER GLASS
1. Reverse the combination meter and remove the 2 screws.
2. Remove the tape.
3. Disengage the 7 claws and remove the combination meter glass.

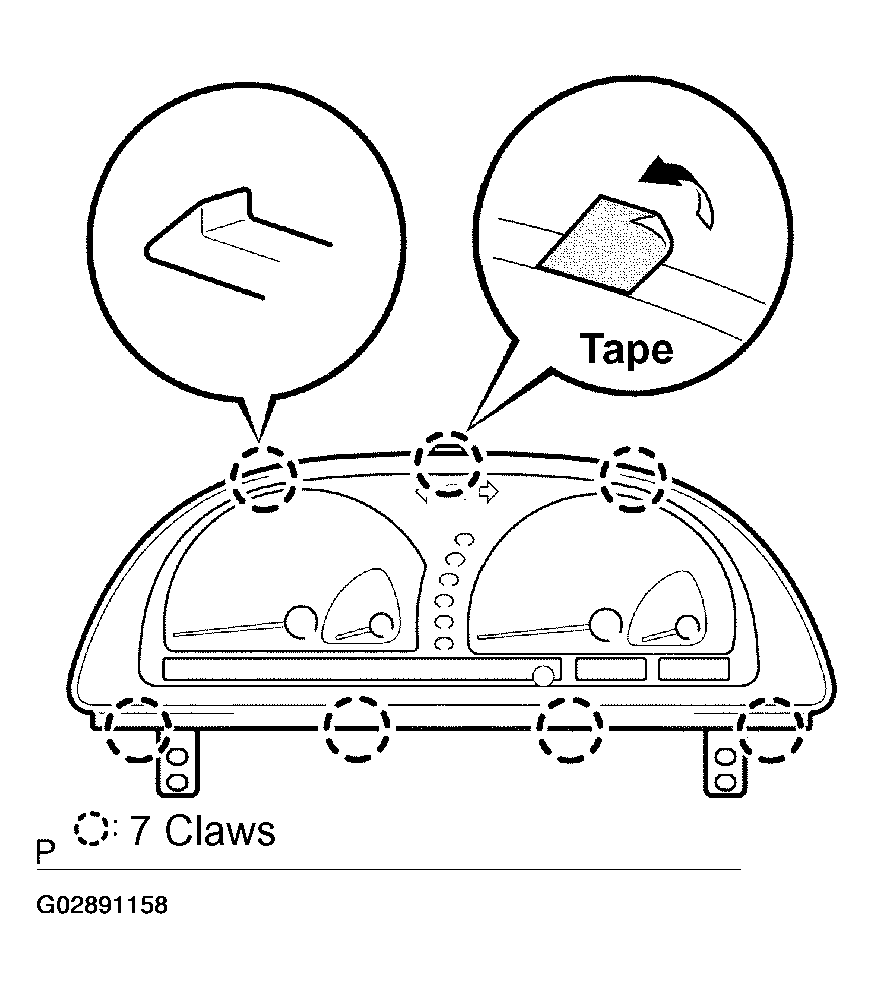

  Fig 2: Removing Combination Meter Glass
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
