Section 654 (Tire & Wheel): Inspection

WARNING: This page is about a different car, the 2004 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT TIRE
1. Check the tires for wear and proper inflation pressure.

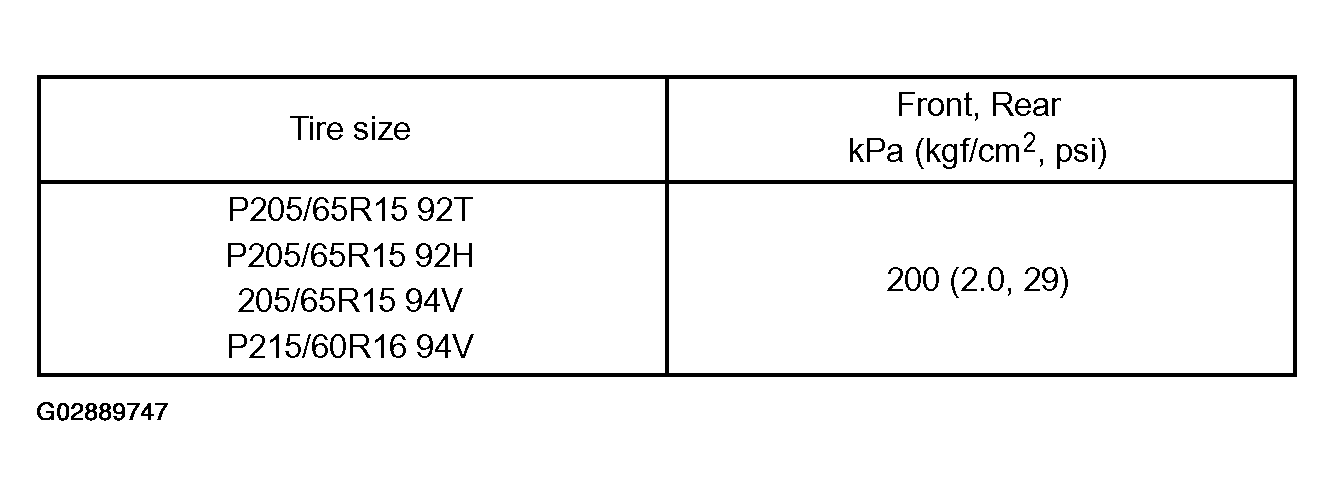

  Cold tire inflation pressure:

  Fig 1: Checking Tires For Wear & Proper Inflation Pressure
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

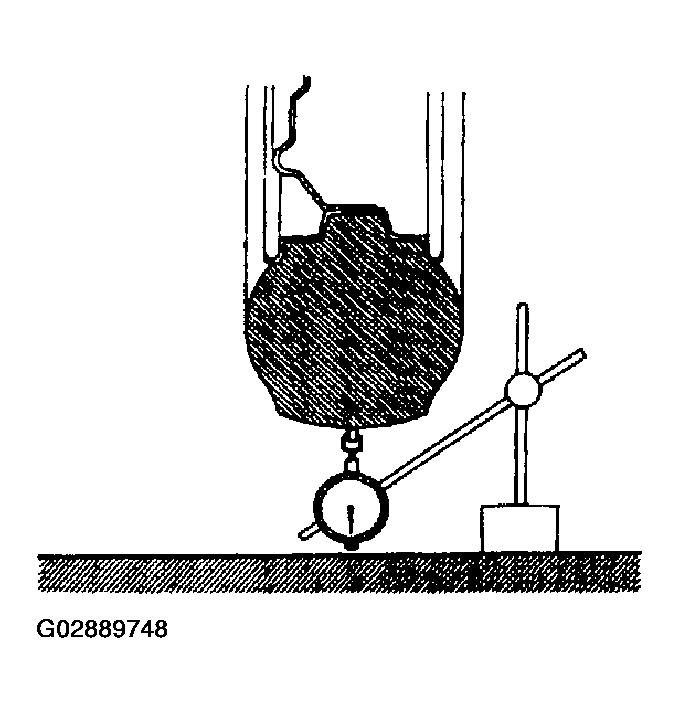

Using a dial indicator, check the tire runout.
Tire runout: 1.0 mm (0.039 in.) or less

Fig 2: Checking Tire Runout
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ROTATE TIRE
HINT:

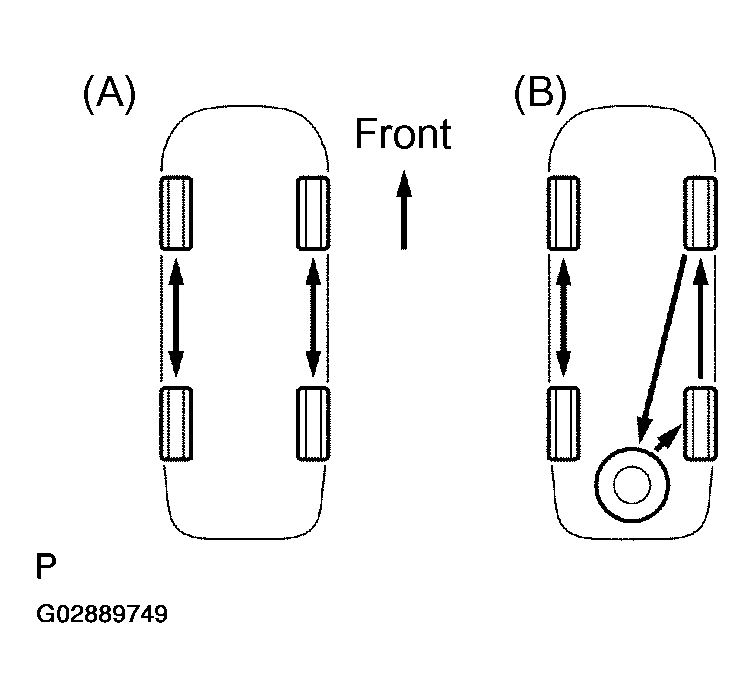

- Rotate tires as shown in the illustration.
- Rotate as shown in (B) if the spare tire is included in the rotation.

  Fig 3: Performing Tire Rotation
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT WHEEL BALANCE

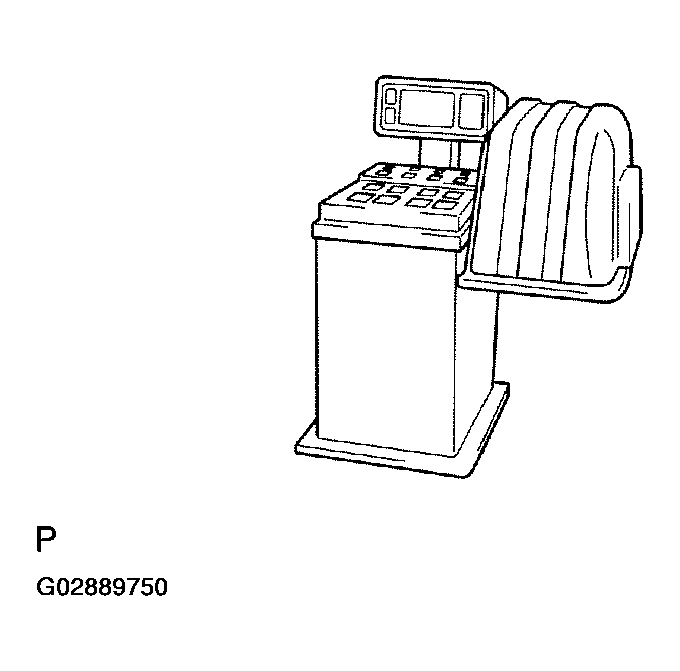

1. Check and adjust the Off-the-car balance.

  Fig 4: Adjusting On Car Balance
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. If necessary, check and adjust the On-the-car balance.
  Imbalance after adjustment: 8.0 g (0.018 lb) or less
INSPECT BEARING BACKLASH (See SERVICE DATA )
INSPECT BEARING BACKLASH (See SERVICE DATA )
INSPECT AXLE HUB DEVIATION (See SERVICE DATA )
INSPECT AXLE HUB DEVIATION (See SERVICE DATA )
