Section 592 (Blower Unit): Removal

WARNING: This page is about a different car, the 2003 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE CONSOLE UPPER PANEL
  2. REMOVE REAR CONSOLE BOX
  3. REMOVE FRONT CONSOLE BOX
  4. REMOVE LOWER LH FINISH PANEL
  5. REMOVE GLOVE COMPARTMENT DOOR
  6. REMOVE LOWER NO. 2 FINISH PANEL
  7. REMOVE LOWER COVER
  8. REMOVE COOLING UNIT (See  REMOVAL  )
  9. REMOVE BLOWER UNIT

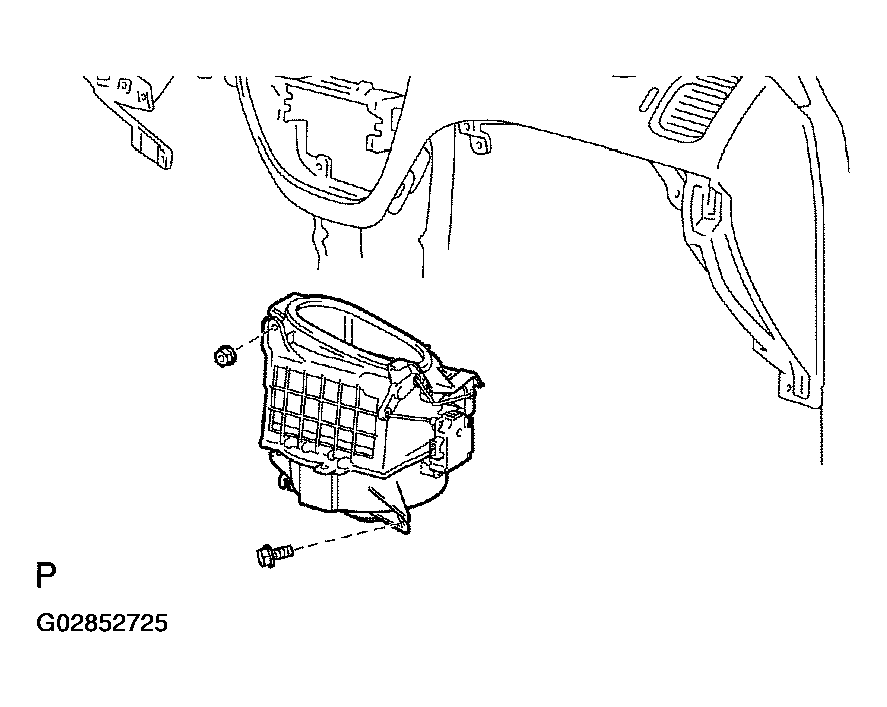

    Fig 1: Removing Blower Unit
    G02852725Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the connector from the blower motor.
    2. Disconnect the connector from the air inlet servomotor.
    3. Remove a nut, bolt and blower unit.
