Problem Symptoms Table

WARNING: This page is about a different car, the 2003 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

Front A/C:

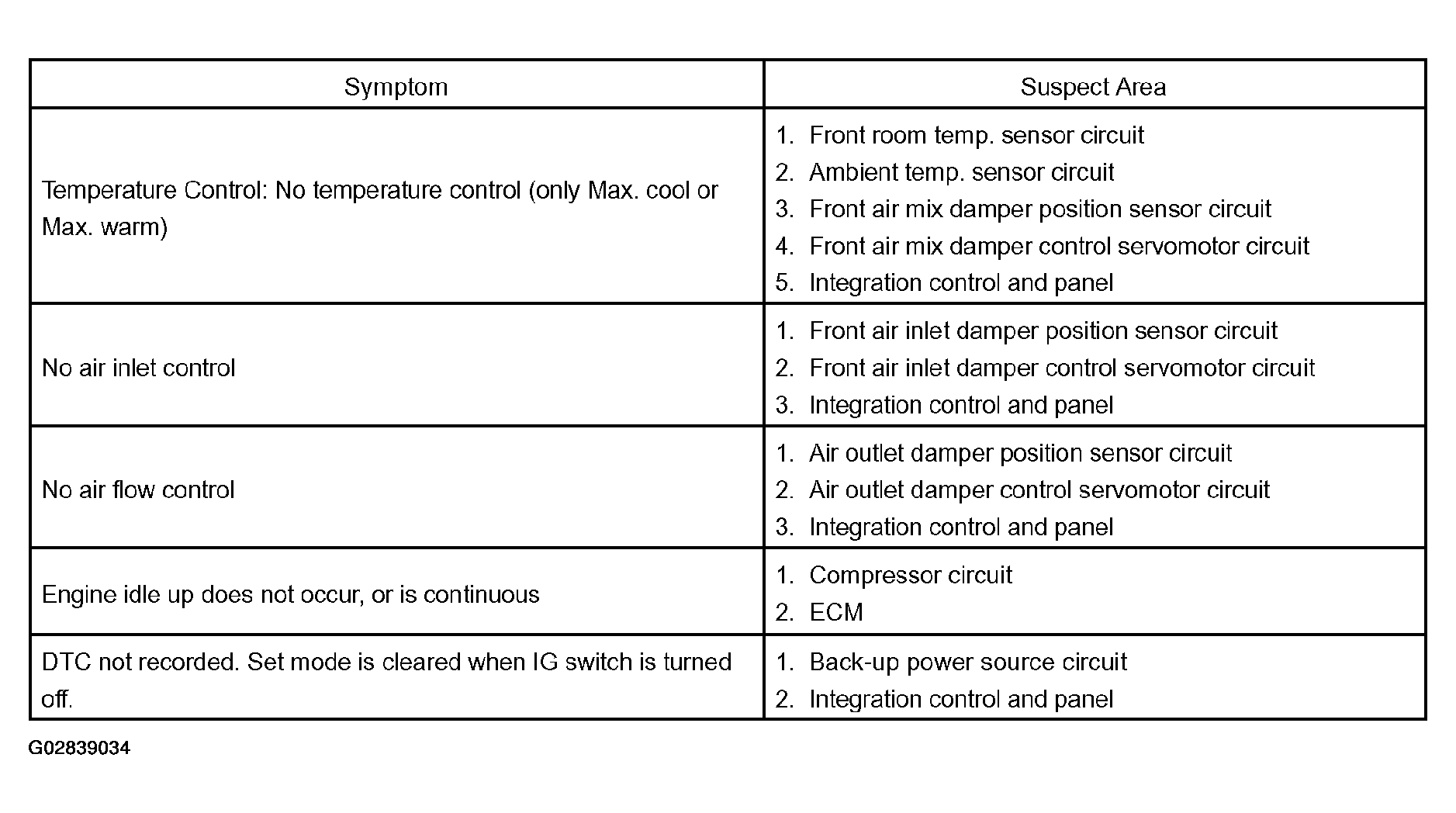

Fig 1: Front A/C Problem Symptoms Chart (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

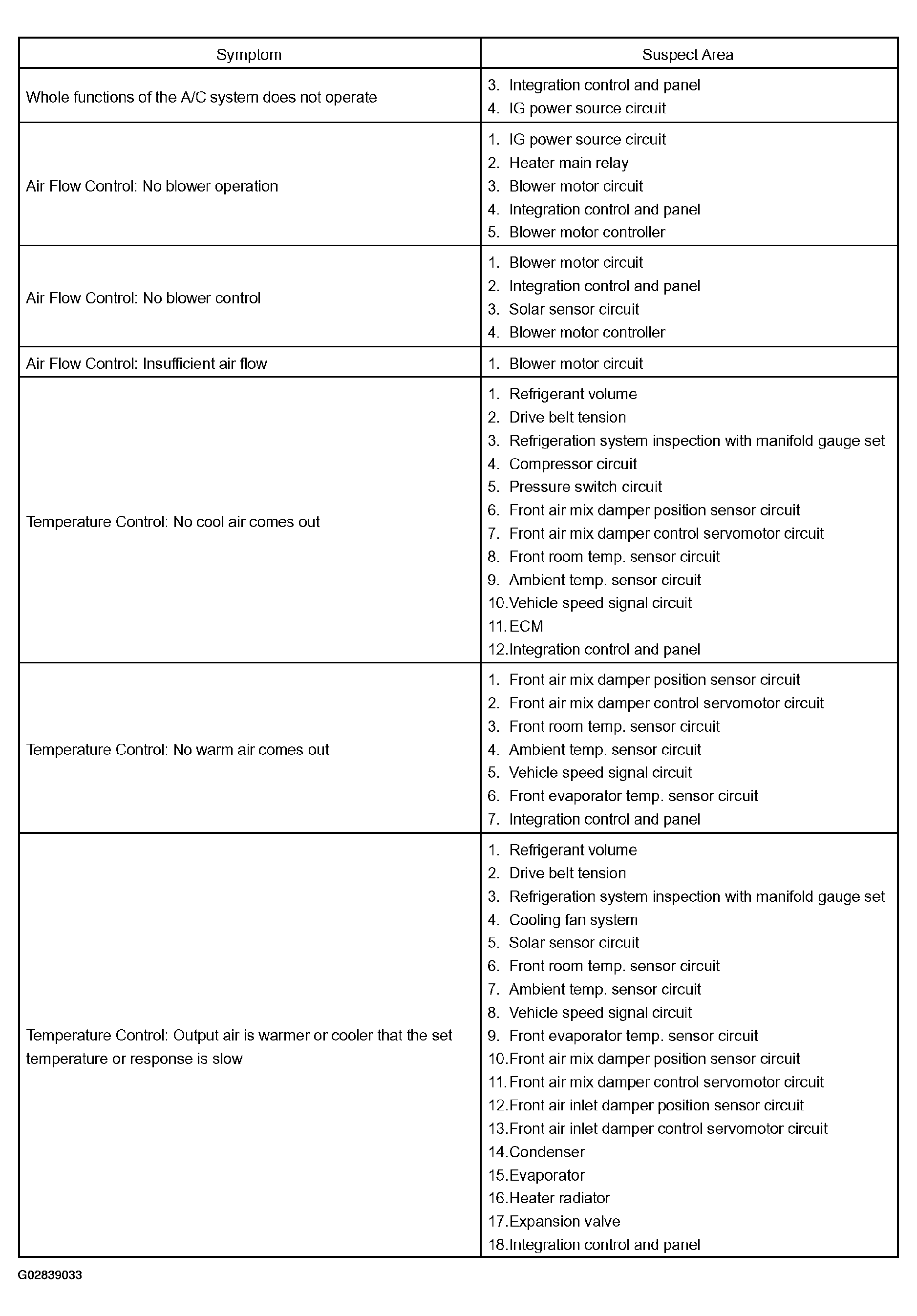

Fig 2: Front A/C Problem Symptoms Chart (2 Of 2)

Rear A/C:

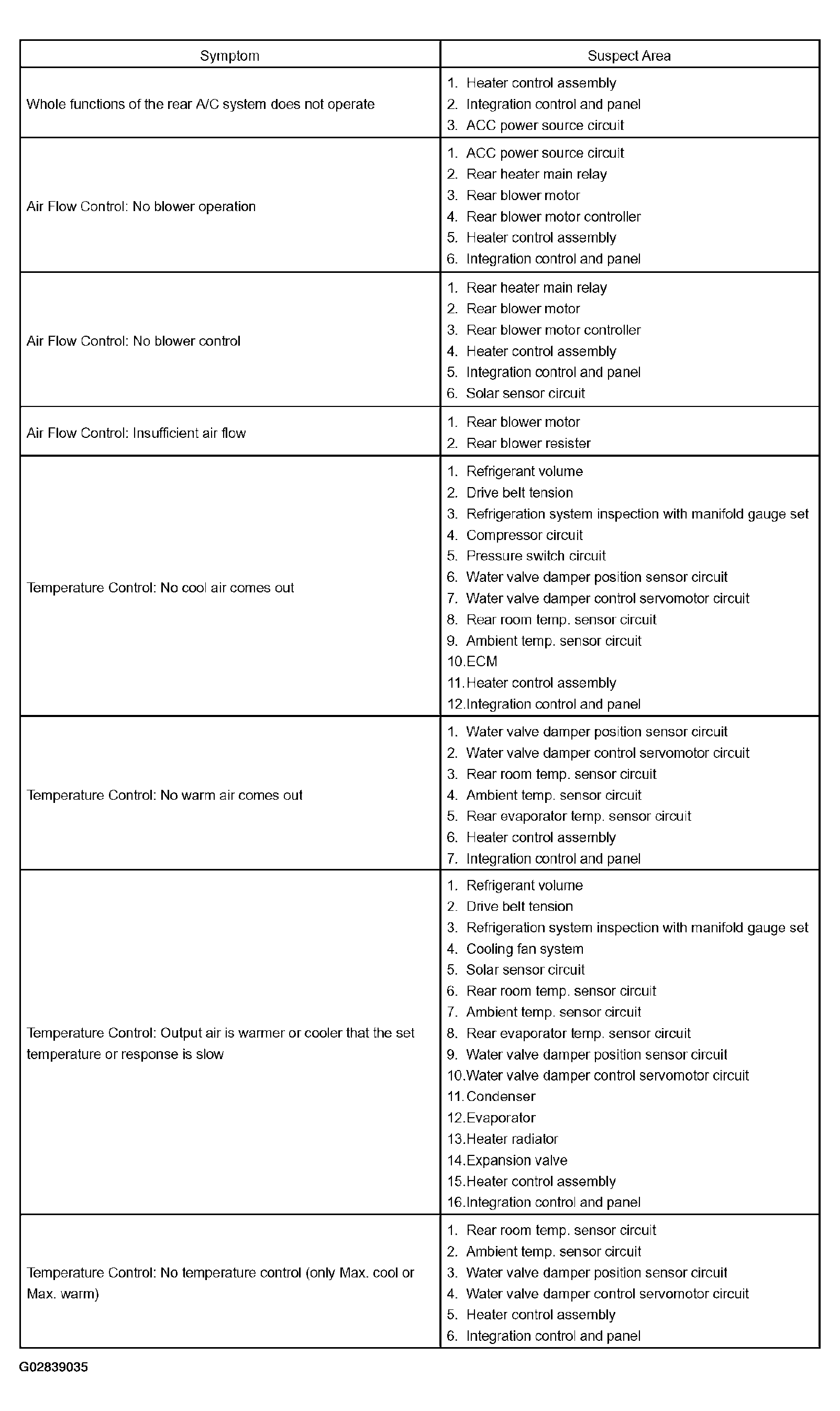

Fig 3: Rear A/C Problem Symptoms Chart
