Inspection Procedure
WARNING: This page is about a different car, the 2003 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
If not using the TOYOTA hand-held tester, start from STEP 3.
- Check sliding roof pulse plate operation.
PREPARATION:
- Connect the TOYOTA hand-held tester to the DLC3.
- Turn ignition switch ON and TOYOTA hand-held tester main switch ON.
- Select the ACTIVE TEST mode on the TOYOTA hand-held tester.
CHECK:
- Operate the slide roof as the TOYOTA hand-held tester directs.

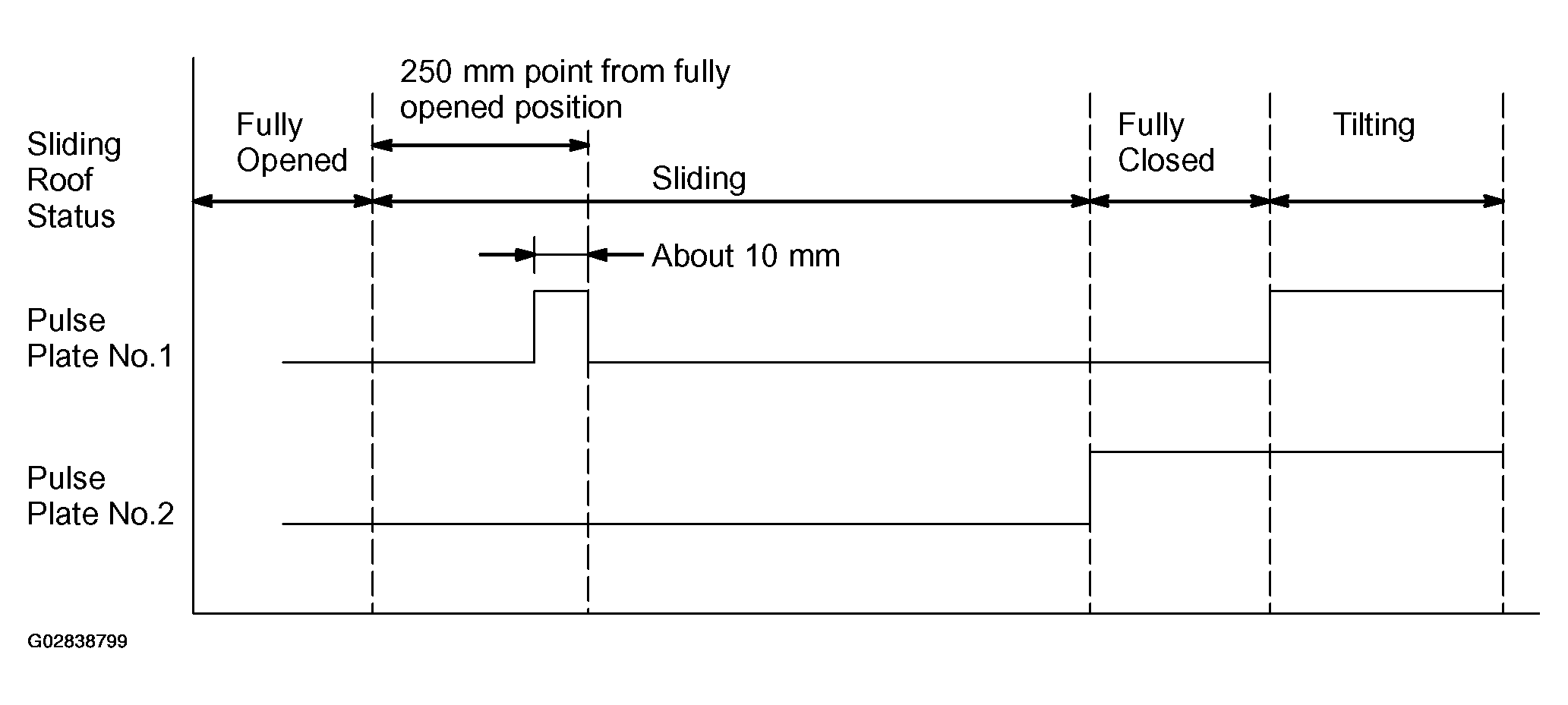

- At this time, check that status (ON/OFF) of pulse plate No.1 and No.2 changes on the TOYOTA handhold tester screen as shown in the chart below.
NOTE: Caution is necessary for a part of body not to be caught in as the jam protection system does not operate during conducting ACTIVE TEST.OK:
- NG : Replace sliding roof gear assembly.
- OK : go to next step
- Check sliding roof motor status.
PREPARATION:
Connect the TOYOTA hand-held tester to the DLC3.
CHECK:
- Enter into ACTIVE TEST mode of TOYOTA hand-held tester.
- Check that "Sliding Roof" operates as the TOYOTA hand-held tester directs.
- At this time, check that motor status changes on the screen of the TOYOTA hand-held tester as the sliding roof switch of the vehicle is turned.
OK:
The motor operates normally.
- NG : Replace sliding roof gear assembly.
- OK : Go to step 4
- Perform forced operation.

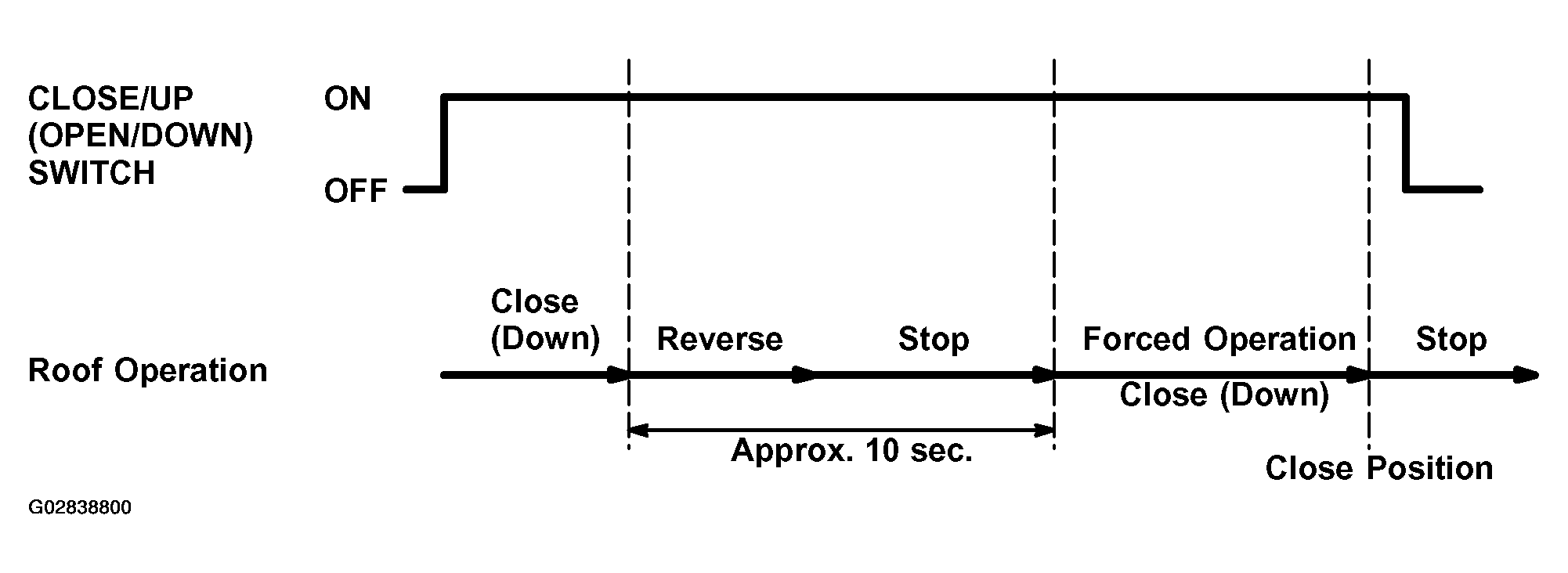

Operate the sliding roof control switch in the CLOSE/UP direction. The jam protection function starts to operate and reverses. Keeping the CLOSE/UP direction further some 10 seconds restricts the jam protection function forcibly and begins manual operation.
NOTE: To conduct the sliding roof alignment, restricting the jam protection function is required. - Check sliding roof glass alignment. (Mechanical malfunction) (See
ON-VEHICLE INSPECTION
).
- NG : Adjust sliding roof (See ADJUST SLIDING ROOF GLASS IN CLEARANCE ).
- OK : Replace sliding roof gear assembly.
