Expansion Valve: Removal

WARNING: This page is about a different car, the 2003 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.

DISCHARGE REFRIGERANT FROM REFRIGERATION SYSTEM
HINT:

At the time of installation, please refer to the following item.

Evacuate air from refrigeration system.

Charge system with refrigerant and inspect for leakage of refrigerant.

Specified amount: 600 +/- 50 g (21.16 +/- 1.76 oz.)
REMOVE INSTRUMENT PANEL (See INSTRUMENT PANEL )
REMOVE EXPANSION VALVE
1. Pry out the packings.
  HINT:

  At the time of installation, please refer to the following item.

  Do not reuse the packing.
2. Using SST, remove the 4 bolts and separate the expansion valve and tube and accessory.
  SST 07110-61050

  Torque: 4.1 N.m (42 kgf.cm, 36 in.lbf)
NOTE: Cap the open fittings immediately to keep moisture or dirt out of the system.

HINT:

At the time of installation, please refer to the following item.

Lubricate 6 new O-rings with compressor oil and install them to the tube and valve.

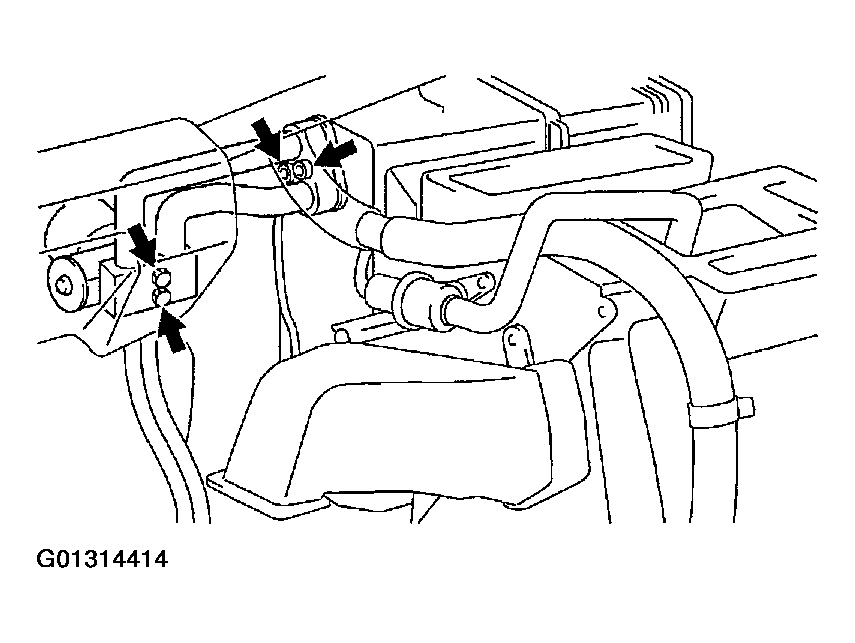

Fig 1: Removing Expansion Valve
