Drive Belt: Removal

WARNING: This page is about a different car, the 2003 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE ENGINE UNDER COVER
REMOVE DRIVE BELT
Using SST, loosen the drive belt tension by turning the drive belt tensioner arm clockwise from the bottom side, and remove the drive belt.

SST 09216-00041

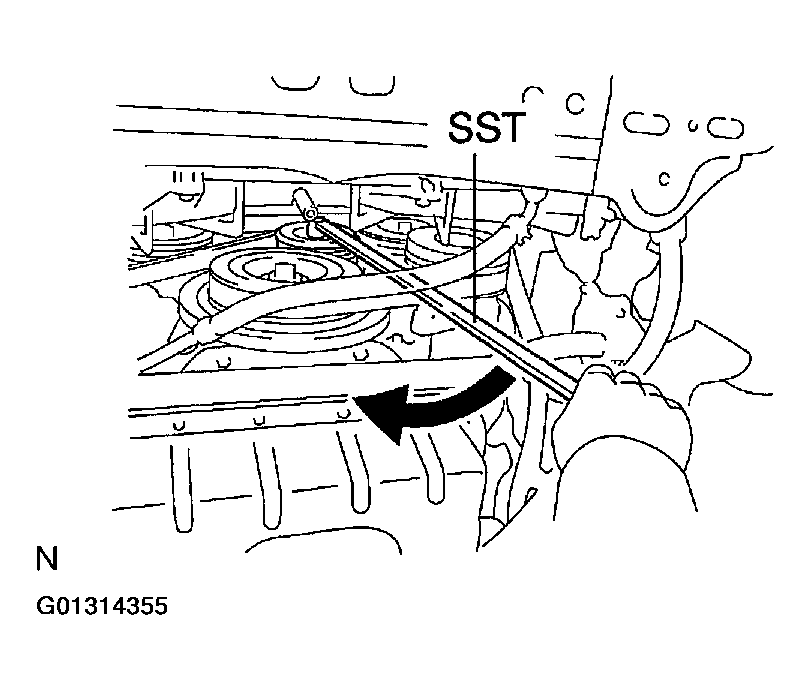

Fig 1: Using SST To Loosen Drive Belt Tension
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
