Condenser Fan: Removal

WARNING: This page is about a different car, the 2003 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.

DRAIN ENGINE COOLANT FROM RADIATOR
HINT:

It is not necessary to drain out all coolant.
REMOVE AIR CLEANER INLET
REMOVE AIR CLEANER AND MAF METER ASSEMBLY
REMOVE COOLING FAN
1. Disconnect the upper radiator hose from the radiator.
2. Disconnect the ECM outlet duct from the ECM box.
3. Disconnect the wire for cooling fan from the clamp on the cooling fan.
4. Disconnect the 2 cooling fan connector.
5. Disconnect the radiator reservoir hose from the radiator.
6. Remove the 6 bolts and cooling fan.

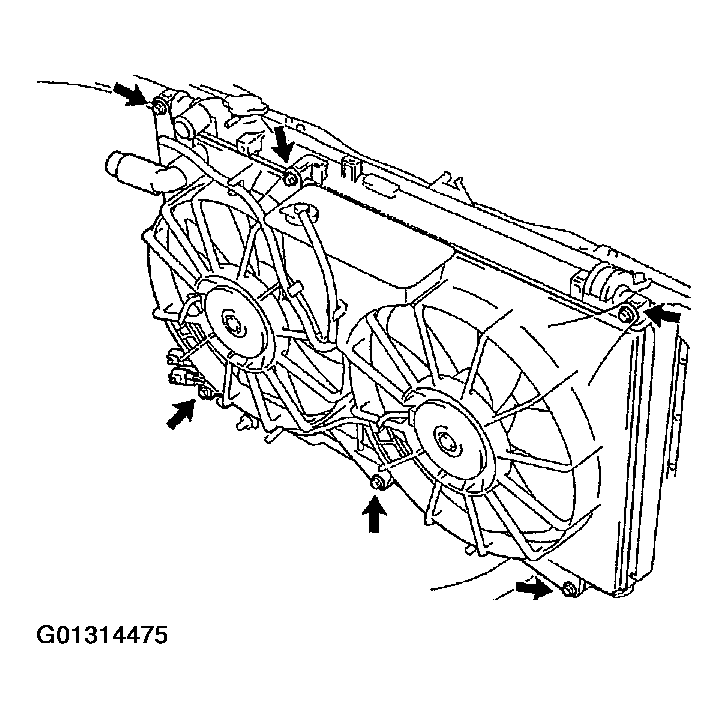

Fig 1: Locating Condenser Fan Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
