Compressor And Magnetic Clutch: Reassembly

1. Install the stator.
   1. Install the stator on compressor.
   2. Install the new snap ring.

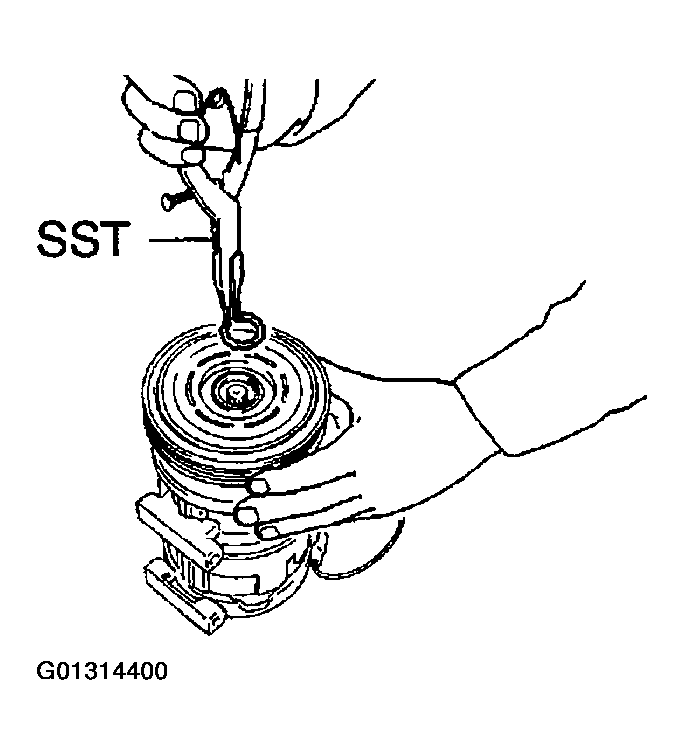

      Fig 1: Installing New Snap Ring

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE: The snap ring should be installed so that its beveled side faces up.
   3. Connect the stator lead wire to the compressor.

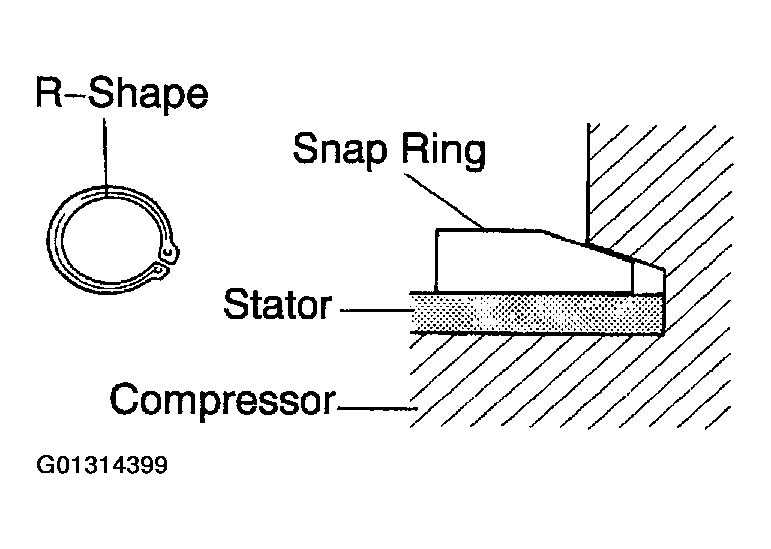

   Fig 2: Installing Snap Ring With Beveled Side Face Up

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the rotor.
   1. Install the rotor on the compressor.
   2. Install the new snap ring.

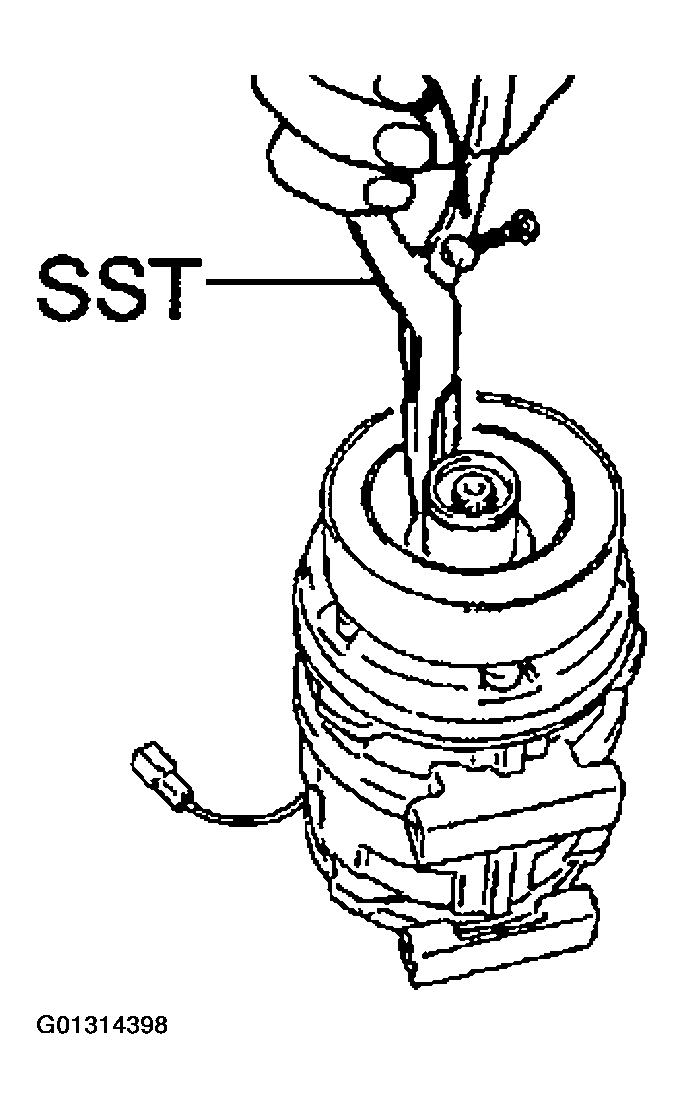

   Fig 3: Installing Rotor

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   NOTE: The snap ring should be installed so that its beveled side faces up.

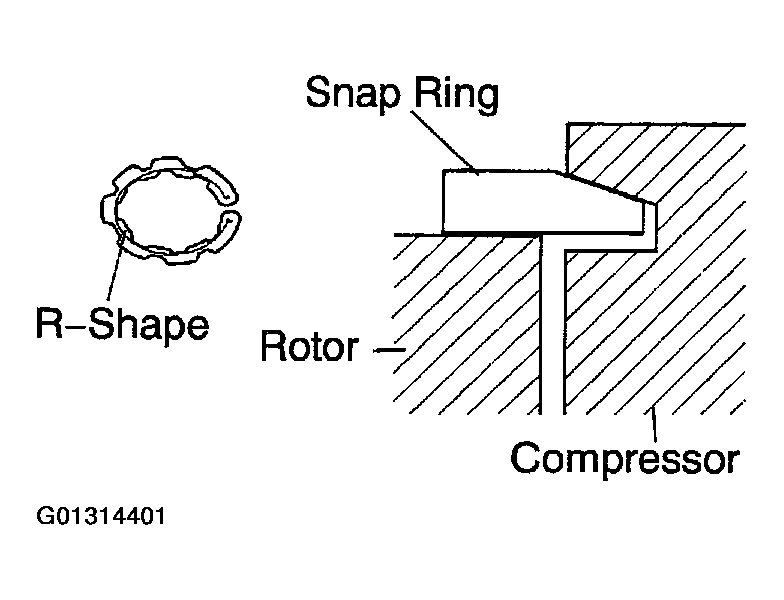

   Fig 4: Installing Snap Ring With Beveled Side Face Up

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the pressure plate.
   1. Install the shims to the pressure plate.
   2. Install the pressure plate on the rotor.

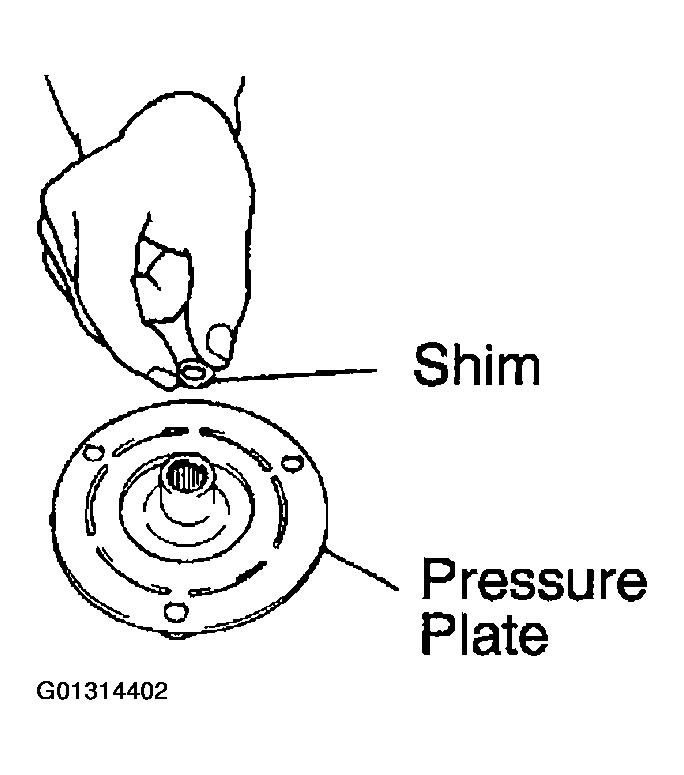

      Fig 5: Installing Shims To Pressure Plate

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Using SST and a torque wrench, install the shaft bolt.

      Torque: 13.2 N.m (135 kgf.cm, 9 ft.lbf)

      SST 07112-76060

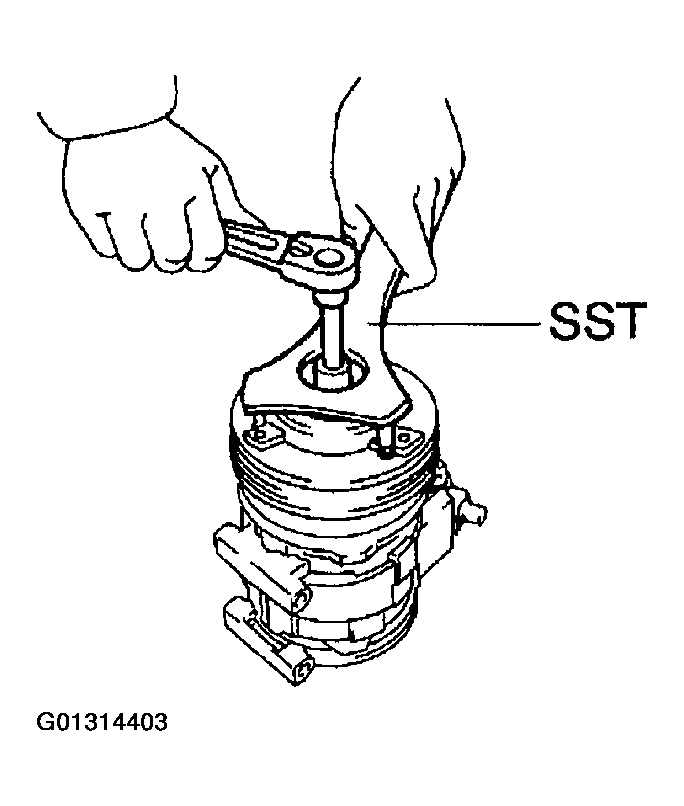

Fig 6: Installing Shaft Bolt Using SST And Torque Wrench

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Set the dial indicator to the pressure plate of the magnetic clutch.
2. Connect the magnetic clutch lead wire to the positive (+) terminal of the battery.
3. Check the clearance between the pressure plate and rotor when connecting the negative (-) terminal to the battery.

   Standard clearance:

   0.5 +/- 0.15 mm (0.020 +/- 0.0059 in.)

If the clearance is not within the standard clearance, adjust the clearance using shims to obtain the standard clearance.

Shim thickness:

0.1 mm (0.004 in.)

0.3 mm (0.012 in.)

0.5 mm (0.020in.)

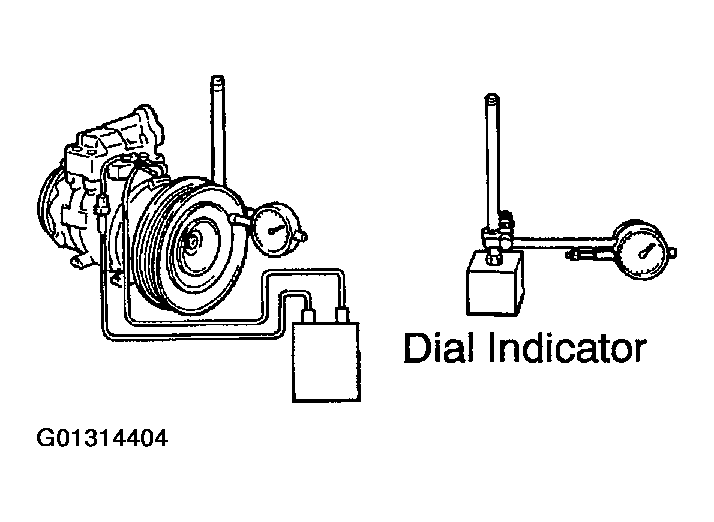

Fig 7: Checking Magnetic Clutch Clearance

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
