Sprocket Driven & Counter Drive Gear: Overhaul

WARNING: This page is about a different car, the 2004 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE COUNTER DRIVE GEAR RADIAL BALL BEARING
1. Using SST and a press, remove the bearing from the counter drive gear.
  1. SST 09950-00020, 09950-60010 (09951-00330), 09950-70010 (09951-07100)

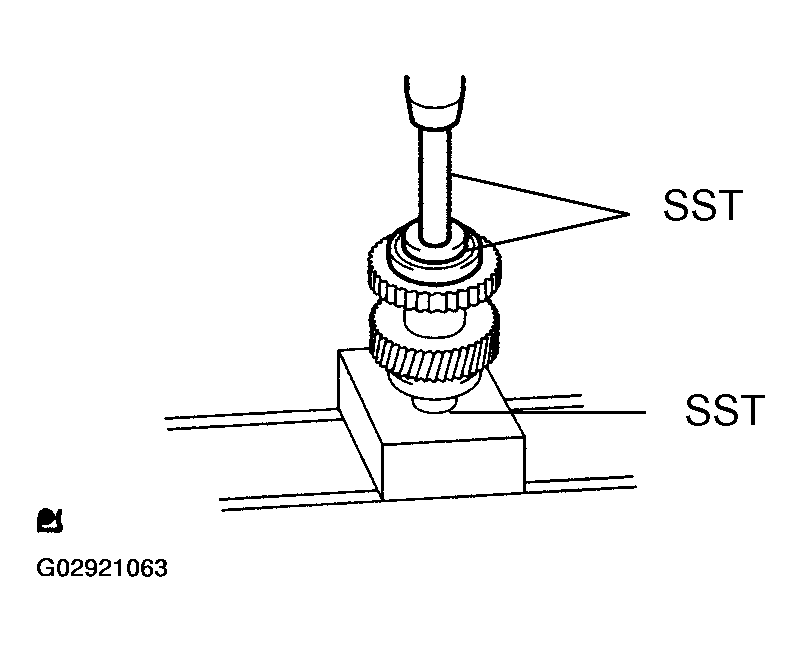

  Fig 1: Removing Bearing From Counter Drive Gear
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using SST and a press, remove the bearing from the counter drive gear.
  1. SST 09950-00020, 09950-60010 (09951-00330), 09950-70010 (09951-07100)

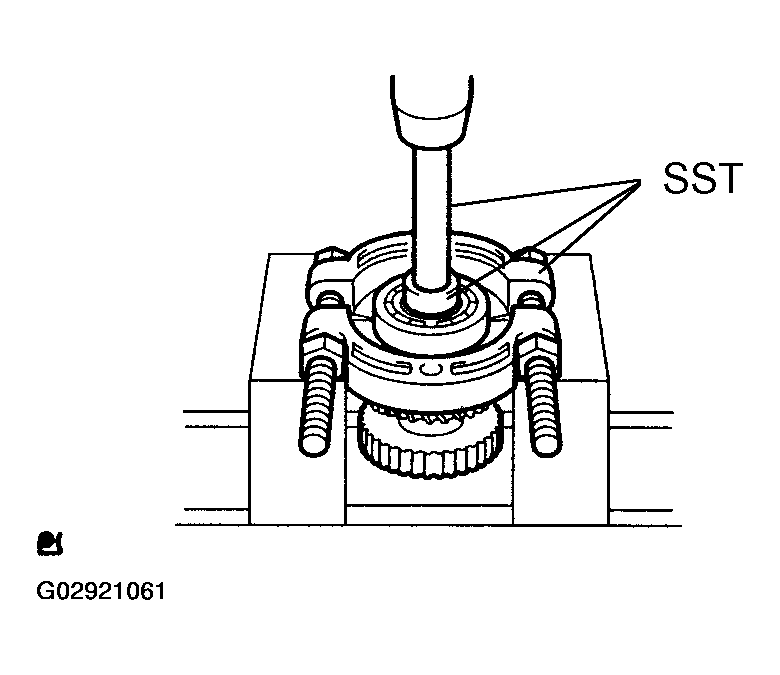

Fig 2: Removing Bearing From Counter Drive Gear
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT COUNTER DRIVE GEAR RADIAL BALL BEARING
1. Check the bearing for abnormal wear or color change.
HINT:

Replace the bearing with a new one if abnormal wear or color change is observed.
INSTALL COUNTER DRIVE GEAR RADIAL BALL BEARING
1. Using SST and a press, install a new bearing into the counter drive gear.
  1. SST 09950-60010 (09951-00330, 09951-00460), 09950-70010 (09951-07100)

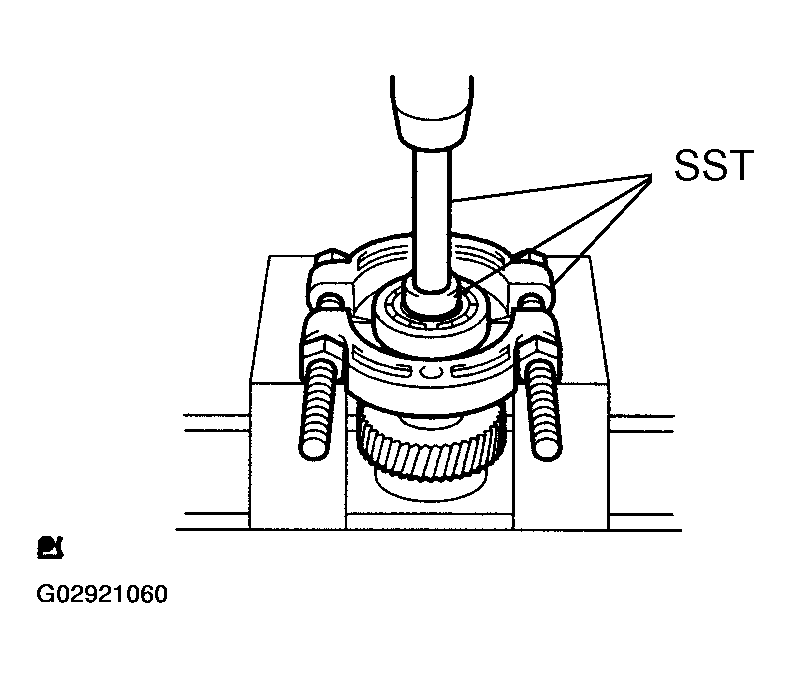

  Fig 3: Installing New Bearing Into Counter Drive Gear
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using SST and a press, install a new bearing into the counter drive gear.
  1. SST 09950-60010 (09951-00330, 09951-00460), 09950-70010 (09951-07100)

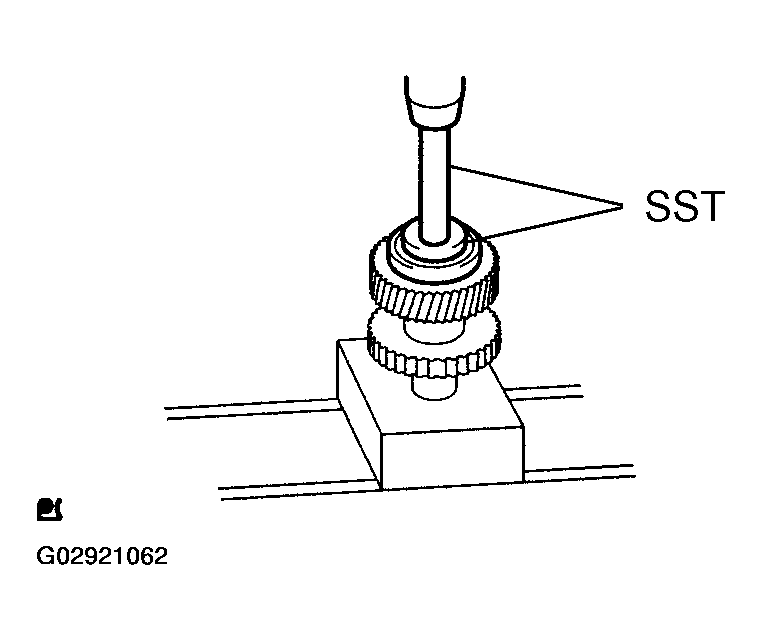

Fig 4: Installing New Bearing Into Counter Drive Gear
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
