Navigation Ecu

WARNING: This page is about a different car, the 2002 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

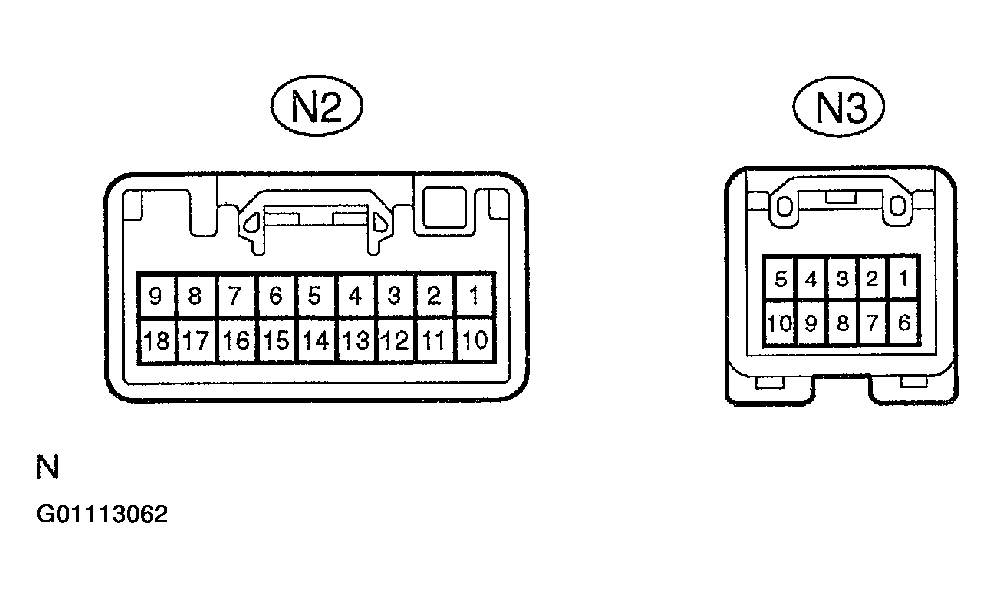

Fig 1: Identifying Navigation ECU Terminals
G01113062Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

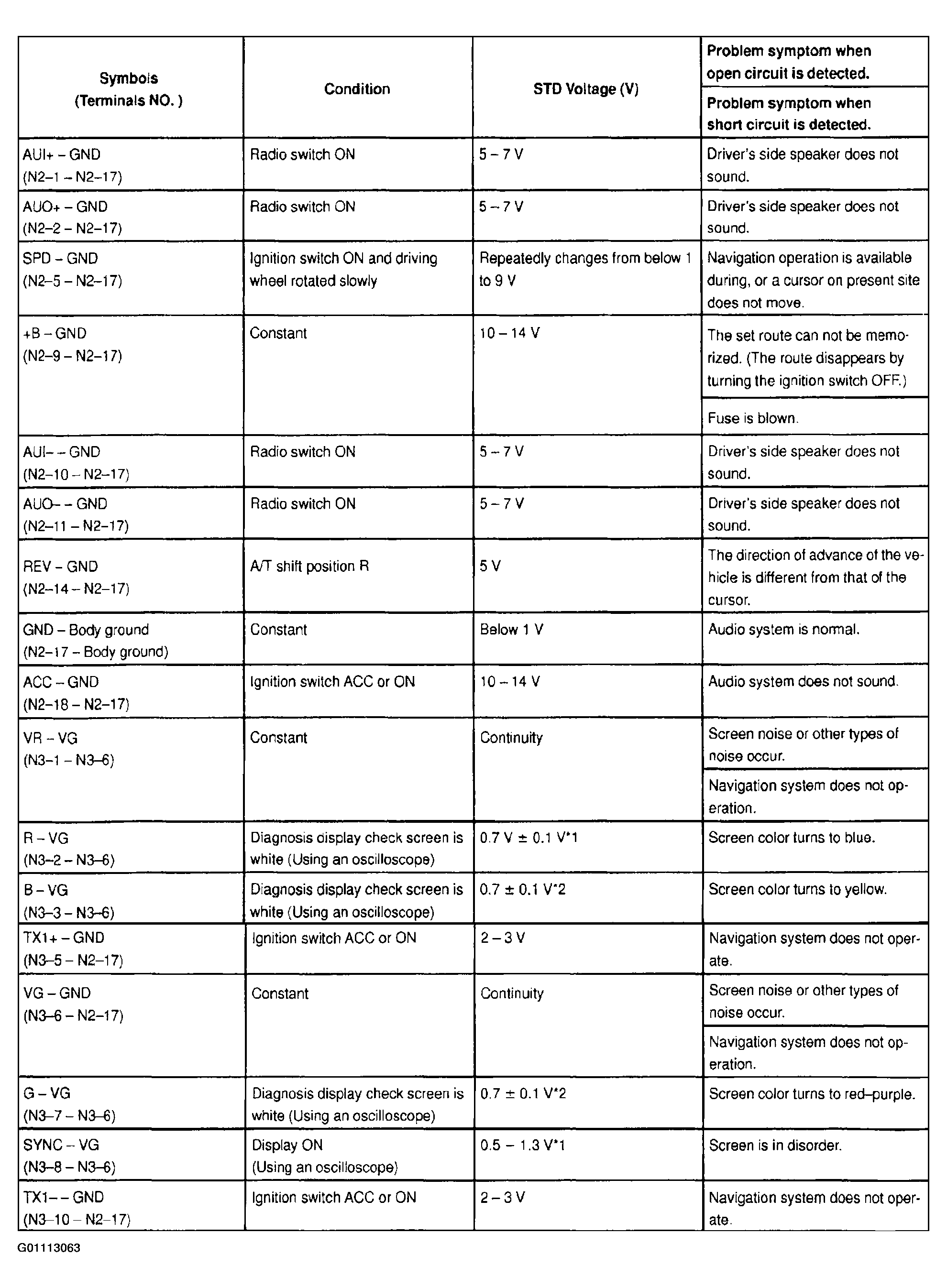

Fig 2: Navigation ECU Terminal Specifications
G01113063Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

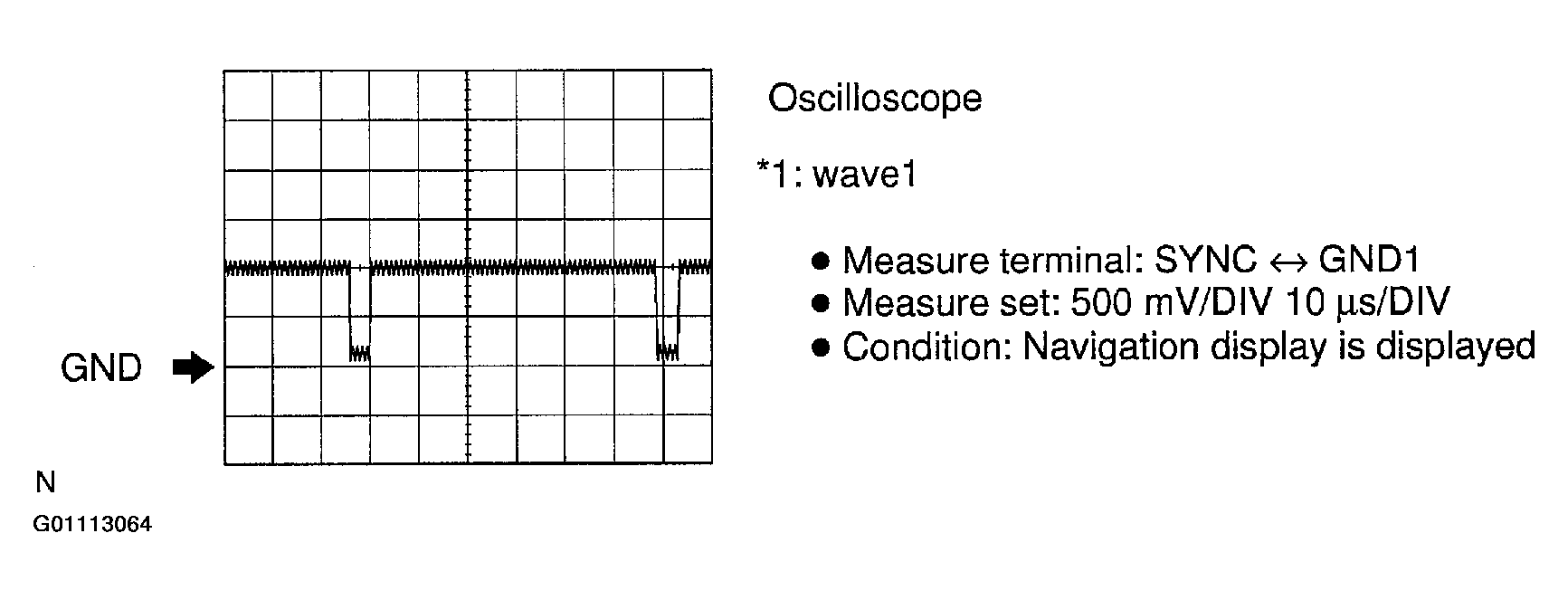

Fig 3: Reading Oscilloscope Wave 1
G01113064Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

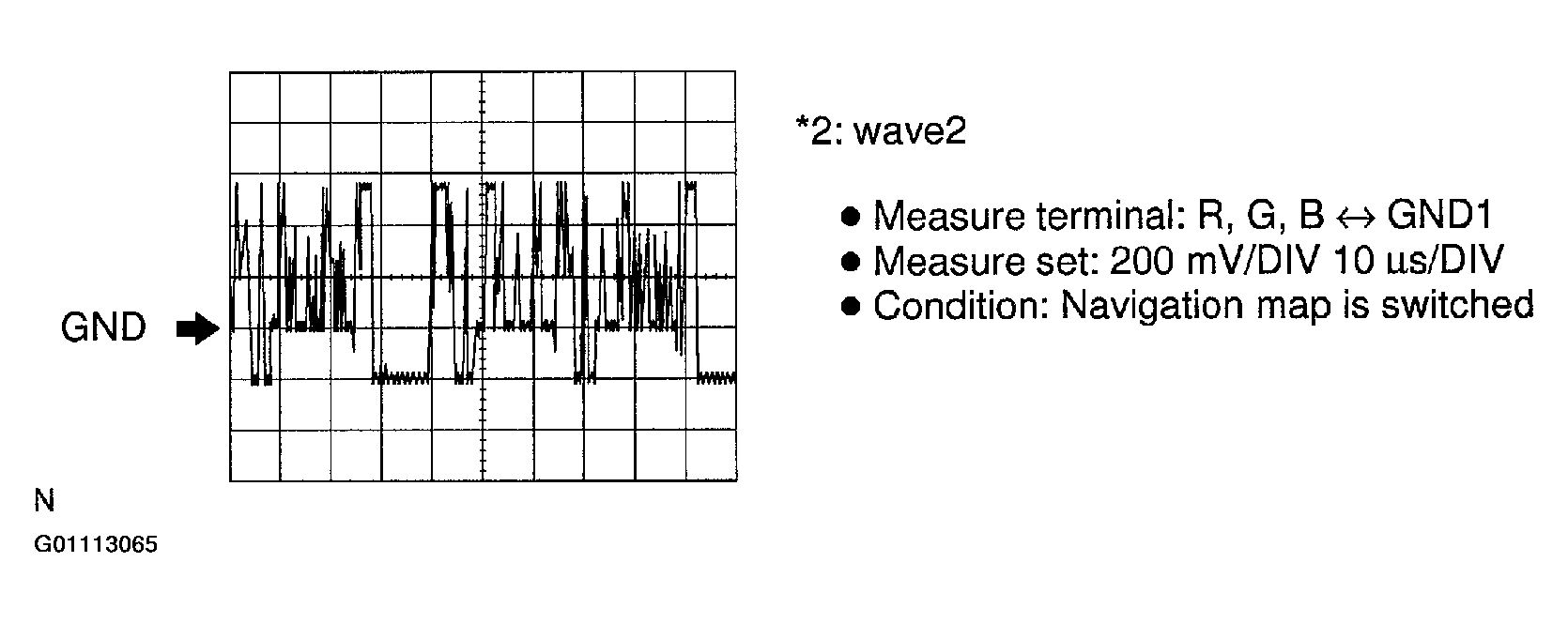

Fig 4: Reading Oscilloscope Wave 2
G01113065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
