Set On

WARNING: This page is about a different car, the 2002 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.

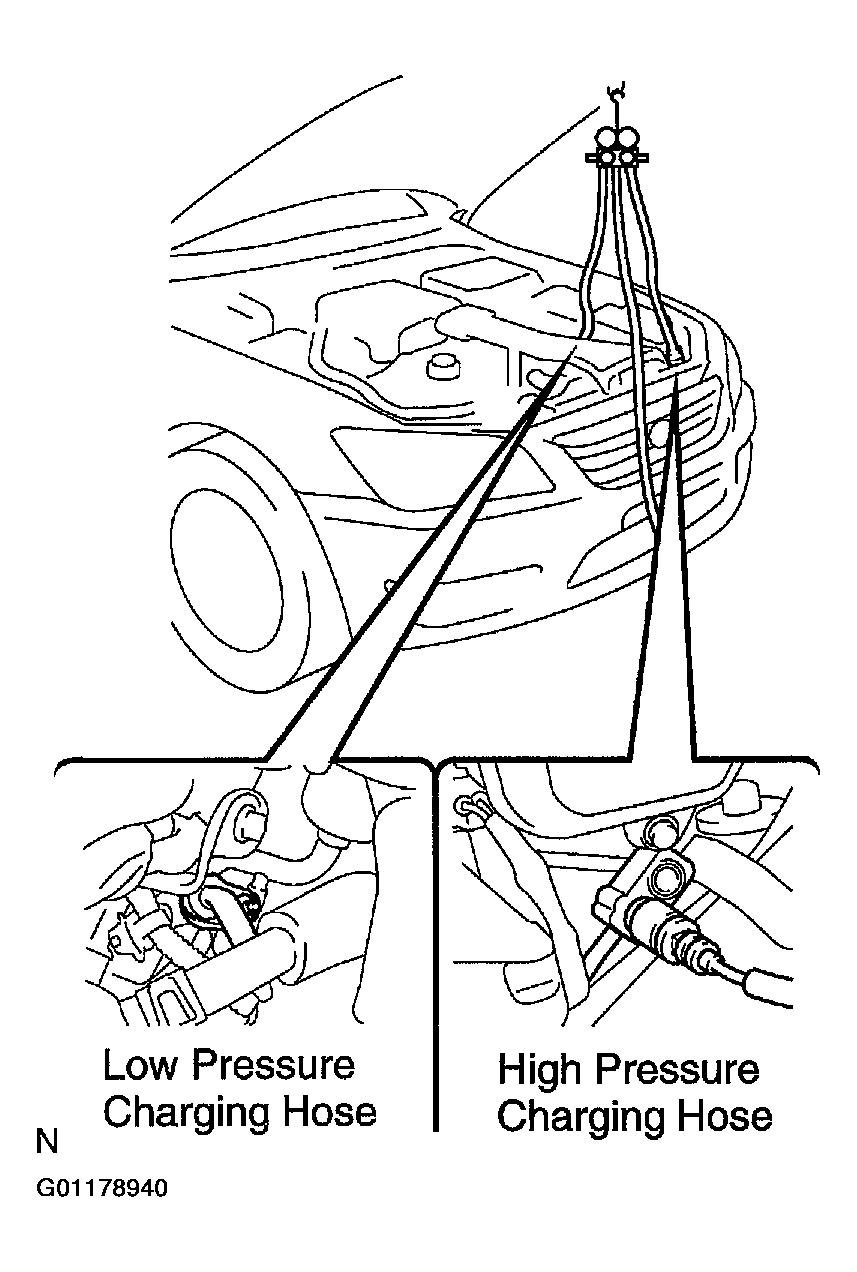

  1. Connect Charging Hoses To Manifold Gauge Set
    Fig 1: Connecting Manifold Gauge Set
    G01178940Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Tighten the nuts by hand.

    CAUTION: Do not connect the wrong hoses.

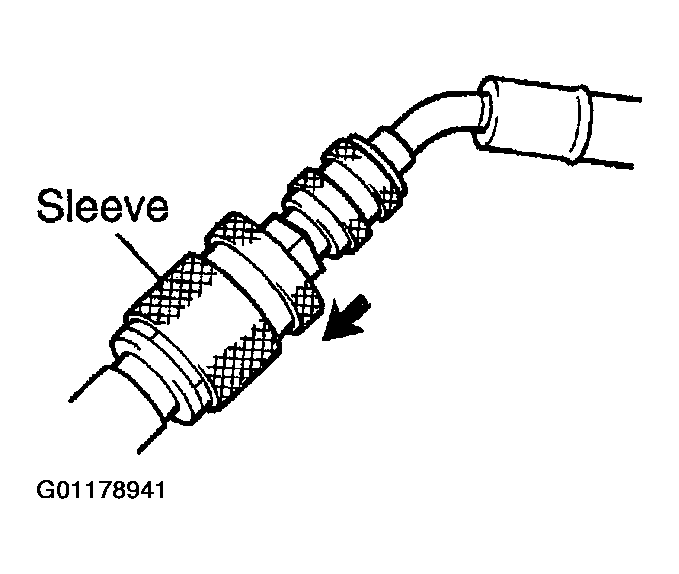

  2. Connect Quick Disconnect Adapters To Charging Hoses
    Fig 2: Connecting Quick Disconnect Adapter Onto Service Valve
    G01178941Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Tighten the nuts by hand.

  3. Close Both Hand Valves Of Manifold Gauge Set
  4. Remove Caps From Service Valve On Refrigerant Lines
  5. Connect Quick Disconnect Adapters To Service Valves

    HINT:

    Push the quick disconnect adapter onto the service valve, then slide the sleeve of the quick disconnect adapter downward to lock it.
