Condenser Fan: Installation

WARNING: This page is about a different car, the 2002 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install Cooling Fan

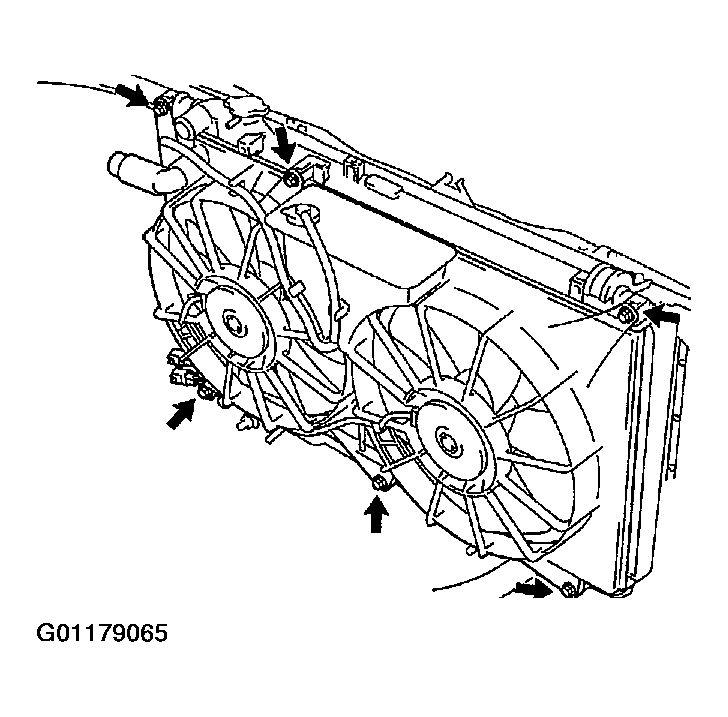

      Fig 1: Installing Cooling Fan With 6 Bolts
      G01179065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the cooling fan with the 6 bolts.

      Torque: 5.0 N.m (50 kgf.cm, 44 in.lbf)

    2. Connect the upper radiator hose to the radiator.
    3. Connect the ECM outlet duct to the ECM box.
    4. Connect the wire for cooling fan to clamp on the cooling fan.
    5. Connect the 2 cooling fan connectors.
    6. Connect the radiator reservoir hose to the radiator.
  2. Install Air Cleaner And MAF Meter Assembly
  3. Install Air Cleaner Inlet
  4. Fill With Engine Coolant
  5. Start Engine And Check For Coolant Leaks
