On-Vehicle Repair

WARNING: This page is about a different car, the 2004 Lexus IS 300 and 2003 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE NO. 1 AND NO. 2 ENGINE UNDER COVERS
  2. REMOVE LH FRONT FLOOR CENTER COVER
  3. REMOVE NO. 1 REAR FLOOR BOARD
  4. DISCONNECT O/D DIRECT CLUTCH SPEED SENSOR CONNECTOR
  5. REMOVE O/D DIRECT CLUTCH SPEED SENSOR
    1. Remove the bolt and O/D direct clutch speed sensor.
    2. Remove the O-ring from the O/D direct clutch speed sensor.
  6. INSTALL O/D DIRECT CLUTCH SPEED SENSOR
    1. Coat a new O-ring with ATF and install it to the O/D direct clutch speed sensor.
    2. Install the O/D direct clutch speed sensor to the transmission case and torque the bolt.

      Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)

  7. INSTALL NO. 1 REAR FLOOR BOARD
  8. INSTALL LH FRONT FLOOR CENTER COVER
  9. INSTALL NO. 1 AND NO. 2 ENGINE UNDER COVERS

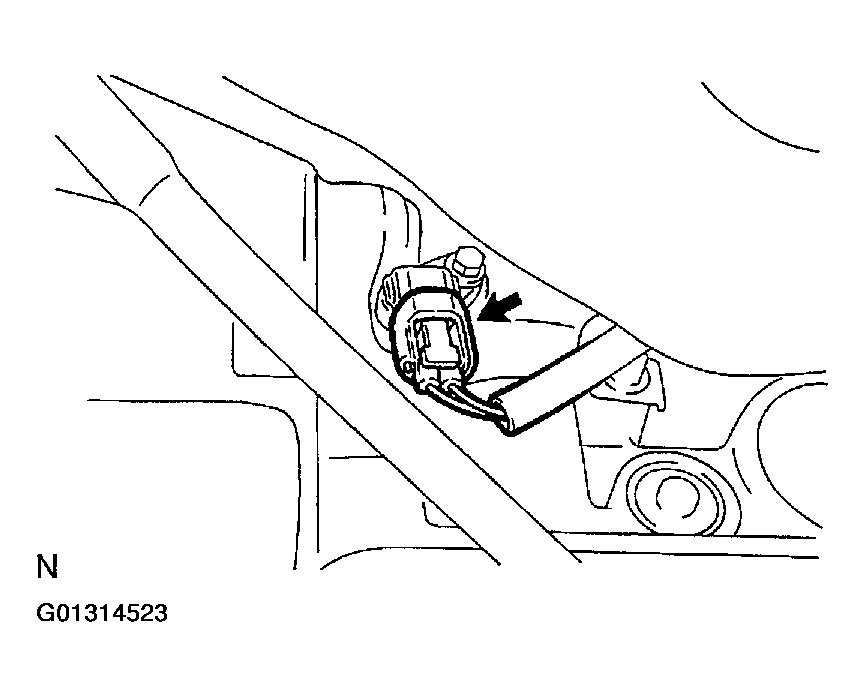

    Fig 1: Disconnecting O/D Direct Clutch Speed Sensor Connector
    G01314523Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
