Front Washer Nozzle: Inspection

WARNING: This page is about a different car, the 2003 Lexus IS 300 and 2002 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.

While operating the washer check whether the points where the washer fluid hits the windshield and the surge area are within the range indicated by the hatched line. See Fig 1.
- A

  Approximately 5.91 in. (150 mm).
- B

  Approximately 1.97 in. (50 mm).
- C

  Approximately 7.142 in. (181.4 mm).
- D

  Approximately 12.622 in. (320.6 mm).
- E

  Approximately 6.925 in. (175.9 mm).
- F

  Approximately 6.949 in. (176.5 mm).
- G

  Approximately 7.13 in. (181 mm).
- H

  Approximately 4.638 in. (117.8 mm).
- I

  Approximately 4.72 in. (120 mm).
- J

  Approximately 21.52 in. (546.6 mm).
- K

  Approximately 17.468 in. (443.7 mm).
- L

  Approximately 17.6 in. (447 mm).
Check if the outer point where the washer fluid hits the windshield is within the range of the wiping pattern (the area of the glass which is wiped by the wiper blades).

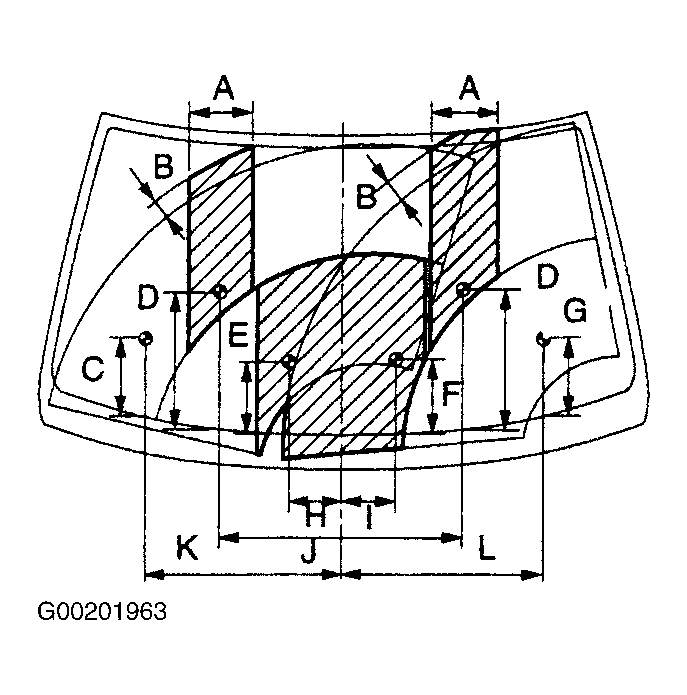

Fig 1: Inspecting Front Washer Nozzle
