FOGLIGHT Aim

WARNING: This page is about a different car, the 2003 Lexus IS 300 and 2002 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.

Insert a driver into the hole for aiming in the fender liner to perform aiming (A-bolt: vertical direction). See Fig 1.

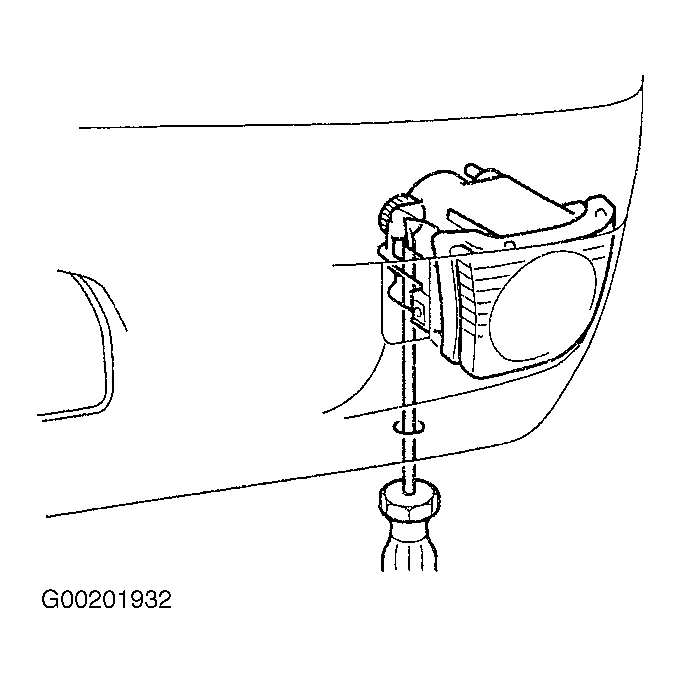

Fig 1: Adjusting Foglight Aim
G00201932Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
