Component Locations

WARNING: This page is about a different car, the 2002 Lexus GS 430 and 2002 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.

For component locations, see Fig 1.

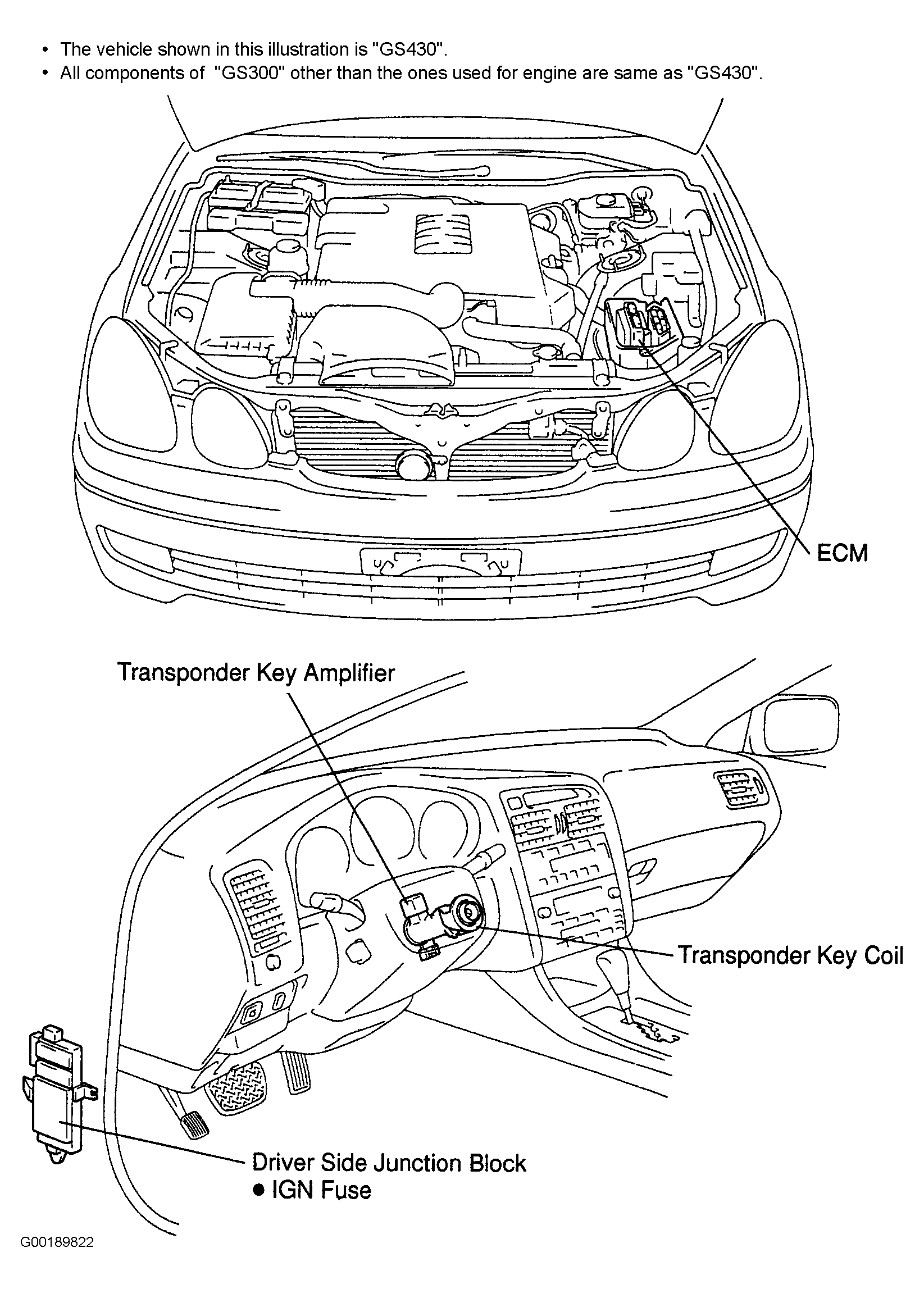

Fig 1: Identifying Engine Immobilizer Component Locations
G00189822Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
