Diagnosis & Repair

WARNING: This page is about a different car, the 2003 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Using Toyota hand-held tester or scan tool, read FREEZE FRAME data. Freeze frame data records engine conditions when malfunction is detected.

After confirming DTC P0100, use Toyota hand-held tester or scan tool to access CURRENT DATA to confirm MAF meter air flow rate. If MAF meter air flow rate is 0.0 gm/sec., VG circuit may be open or shorted, or power source circuit may be open. If MAF meter air flow rate is 271.0 gm/sec. or more, E2G circuit may be open.

For diagnosis and repair procedure, see Fig 1 - Fig 3 .

When access to, or replacement of ECM is necessary, Engine Control Module (ECM) is located behind glove box. See Figure. For ECM connector terminal view, see Figure. For MAF meter circuit wiring diagram, see Fig 4.

For testing of systems or components, see SYSTEM & COMPONENT TESTING - 4-CYLINDER article. For removal and installation of components, see REMOVAL, OVERHAUL & INSTALLATION - 4-CYLINDER article.

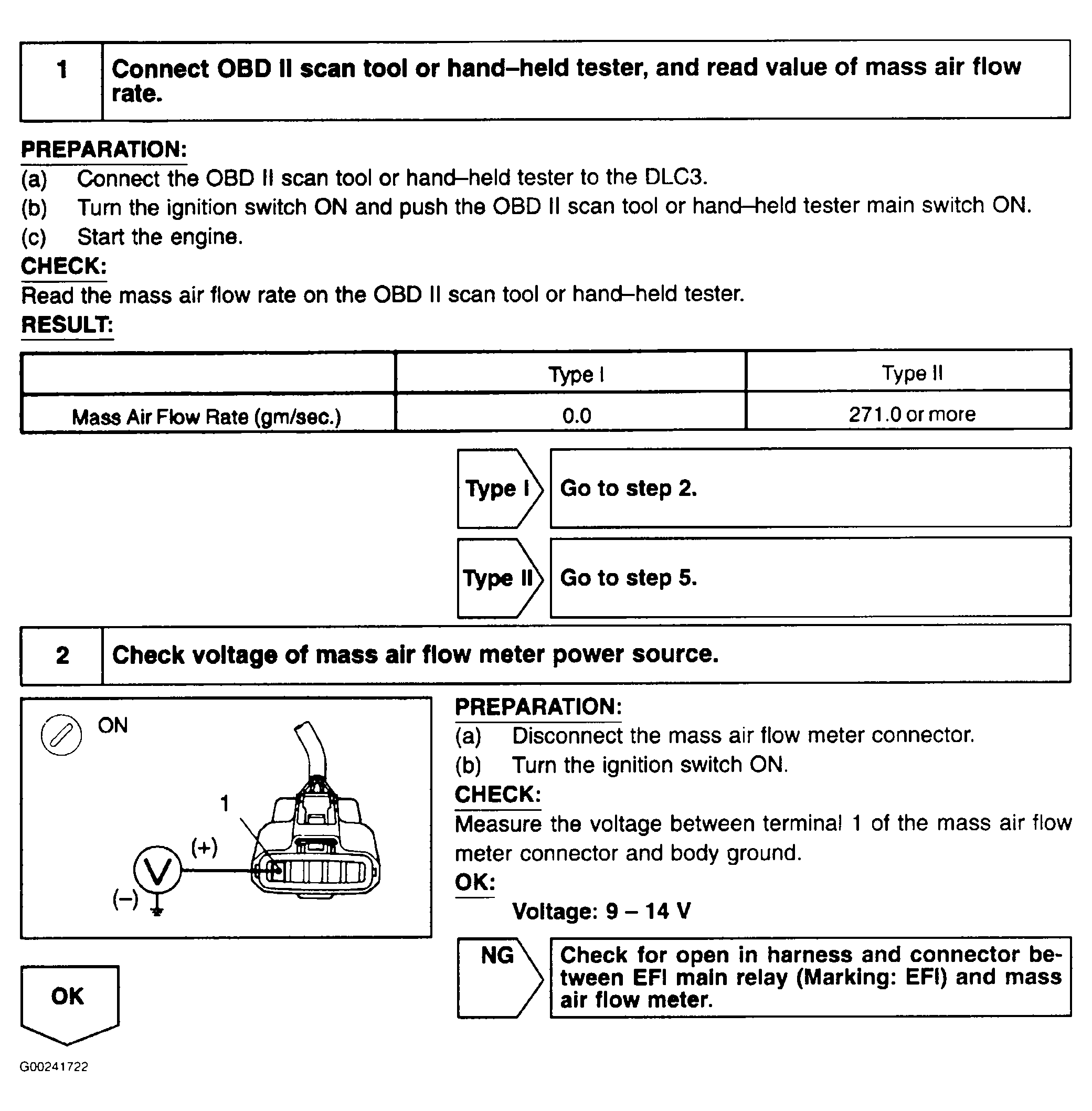

Fig 1: DTC P0100 Diagnostic Procedure (Steps 1-2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

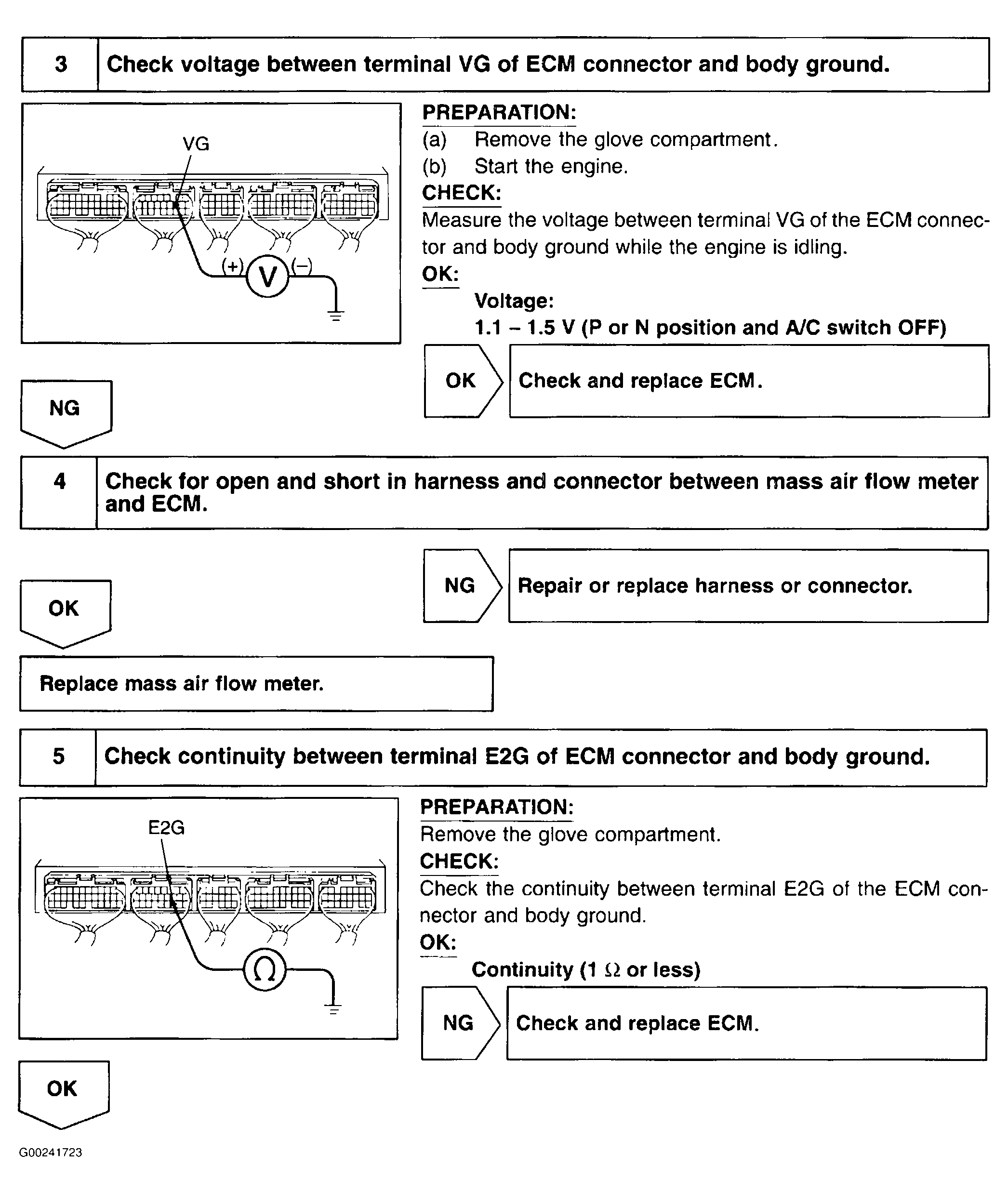

Fig 2: DTC P0100 Diagnostic Procedure (Steps 3-5)

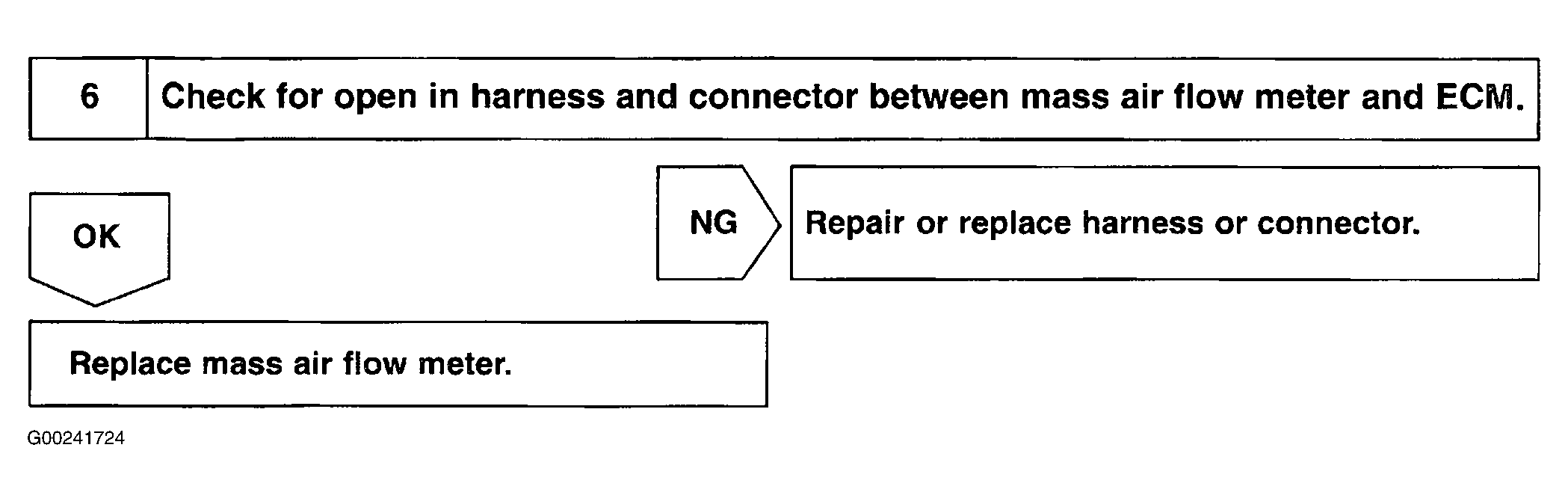

Fig 3: DTC P0100 Diagnostic Procedure (Step 6)

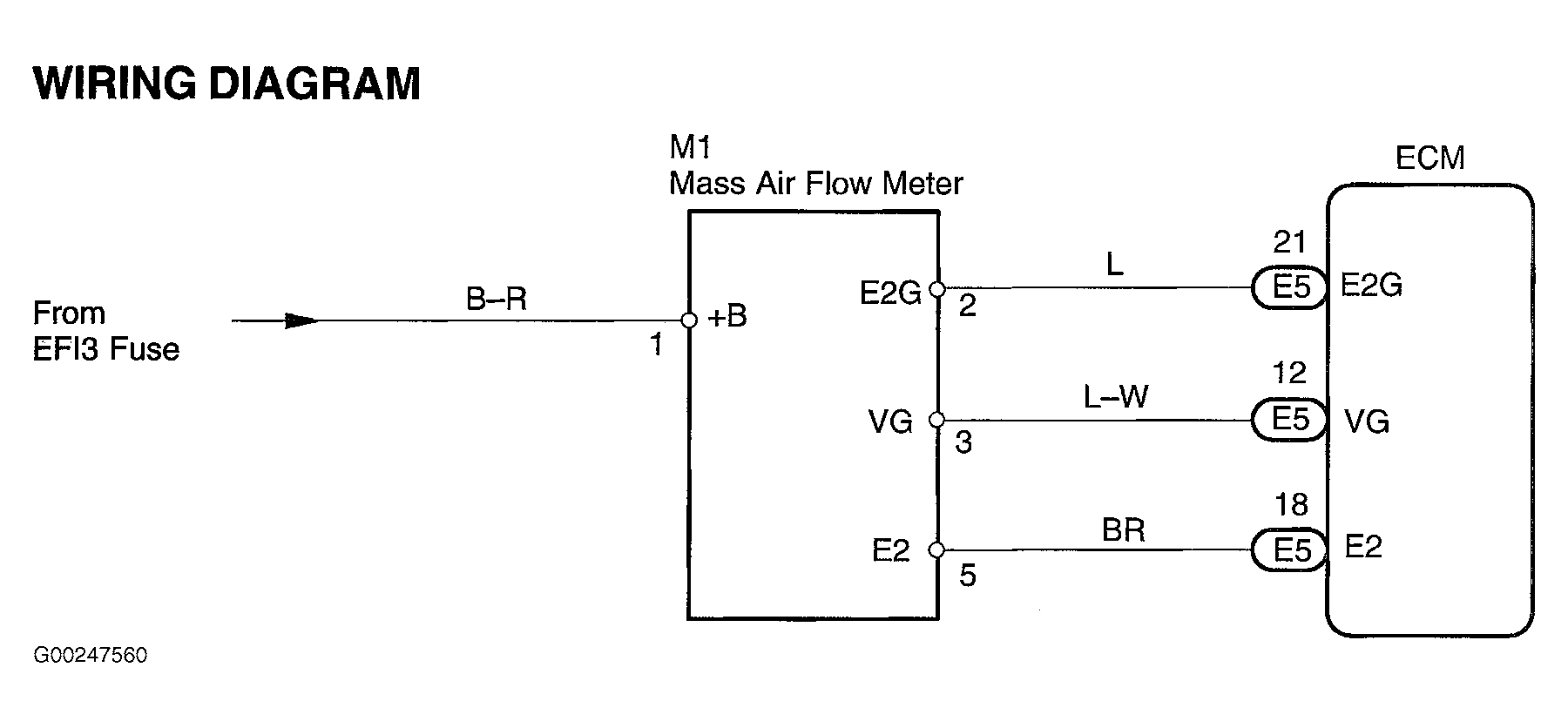

Fig 4: MAF Meter Circuit Wiring Diagram
