Cruise Control Ecu ASSY: Replacement

  1. REMOVE METER HOOD SUB-ASSY (See  OVERHAUL  )
  2. REMOVE COMBINATION METER ASSY (See  OVERHAUL  )
  3. REMOVE CRUISE CONTROL ECU ASSY
    1. Disconnect the connector.
    2. Remove the screw and cruise control ECU assy.

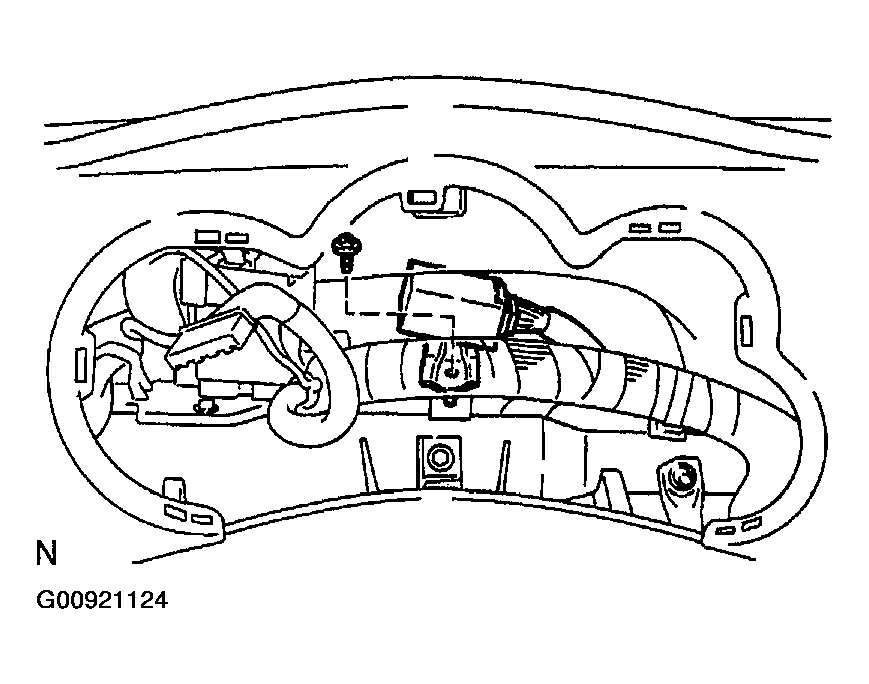

    Fig 1: Removing Screw And Cruise Control ECU Assy
    G00921124Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
