DTC C0278/11: Open Circuit In Abs Solenoid Relay Circuit, DTC C0279/12: Short Circuit In Abs Solenoid Relay Circuit: Wiring Diagram

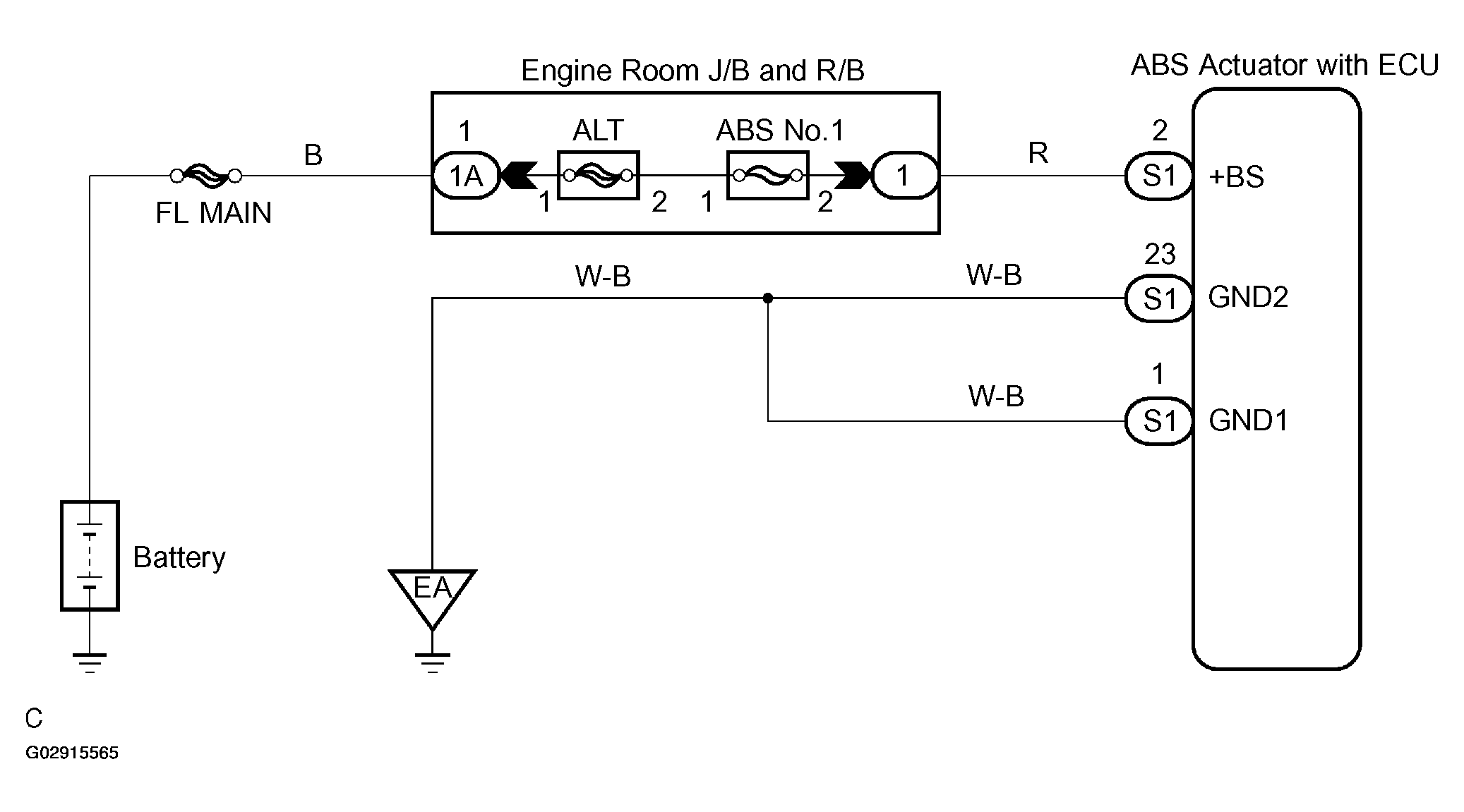

Fig 1: Wiring Diagram - ABS Solenoid Relay Circuit
G02915565Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
