Specifications & Procedures

Automatic belt tension is used to provide proper tension on serpentine drive belt. No adjustment is necessary.

DRIVE BELT ROUTING

Automatic belt tension is used to provide proper tension on serpentine drive belt. For serpentine drive belt routing, see Fig 1.

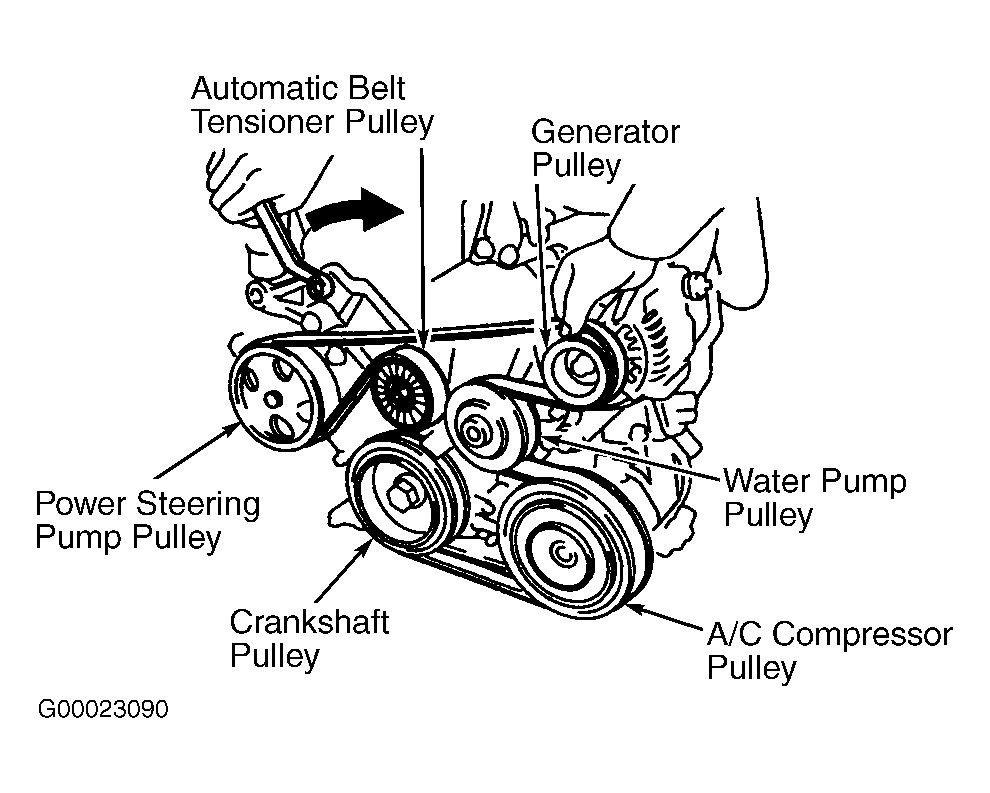

Fig 1: Drive Belt
G00023090Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
