How To Determine Bolt Strength

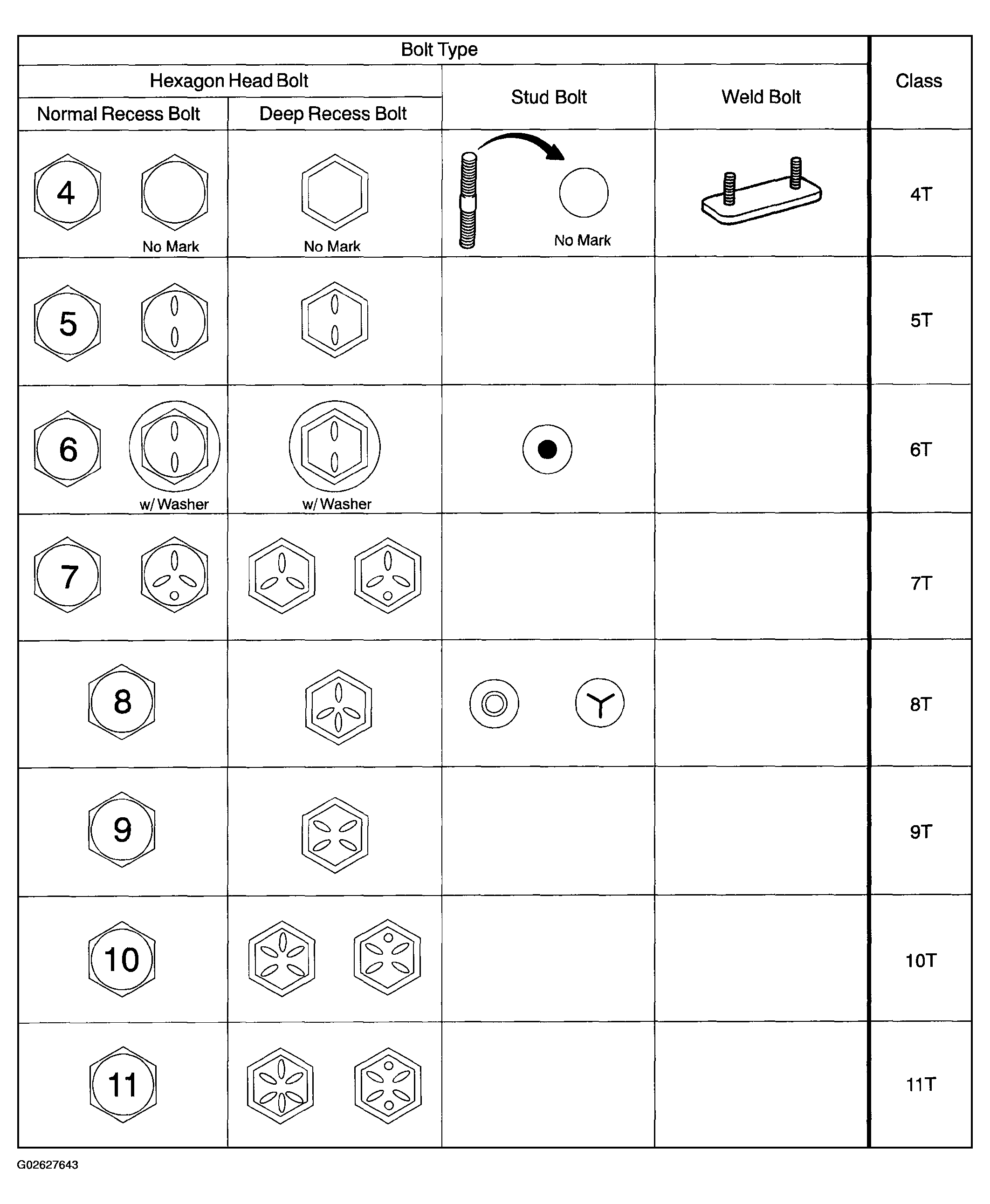

Fig 1: Bolt Size And Shape Description Chart
G02627643Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
