Vacuum Reservoir: Installation
WARNING: This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

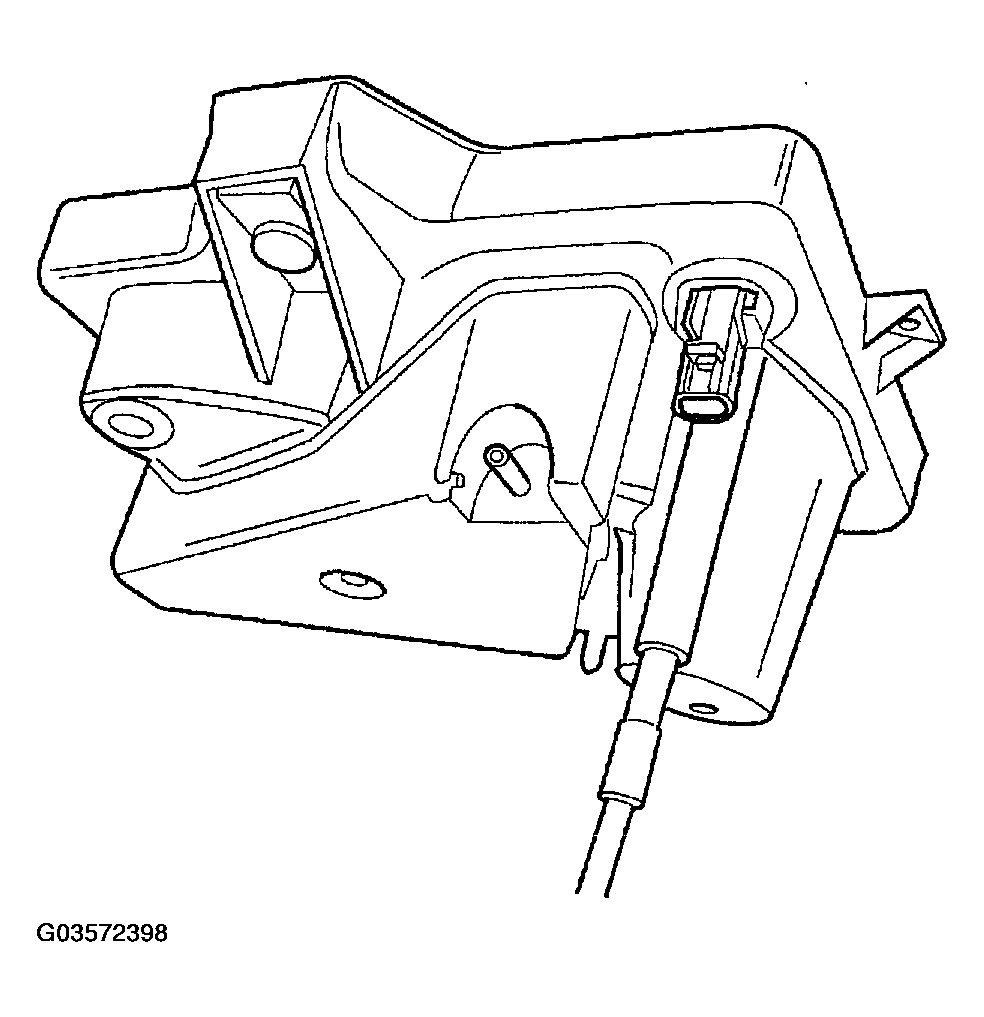

- Connect the vacuum line to battery tray/vacuum reservoir (Fig 2
).
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.

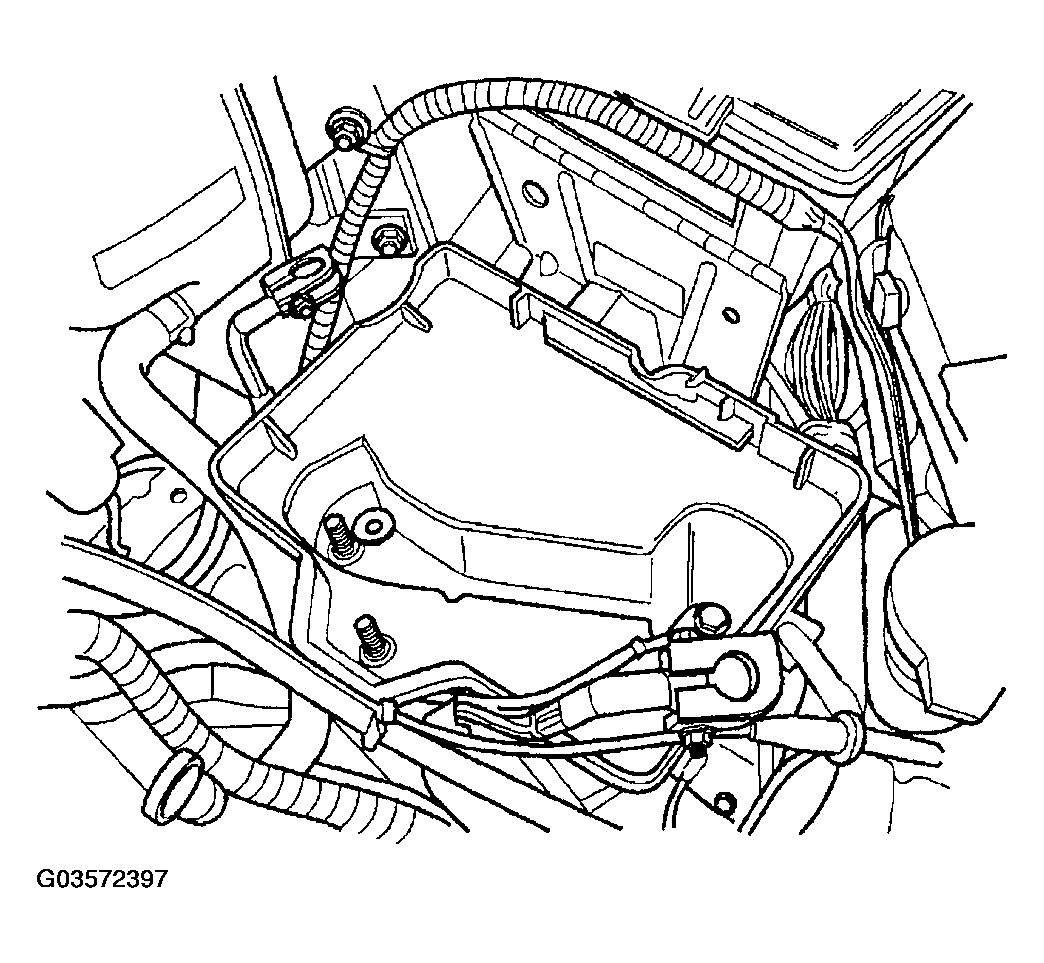

- Install the battery tray (Fig 1
).
- Connect the wiring harness to battery tray.
- Install battery.
- Connect the positive and then the negative battery cable.
