Overhead Console: Disassembly

WARNING: This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the overhead console from the vehicle (Refer to REMOVAL - OVERHEAD CONSOLE  ).

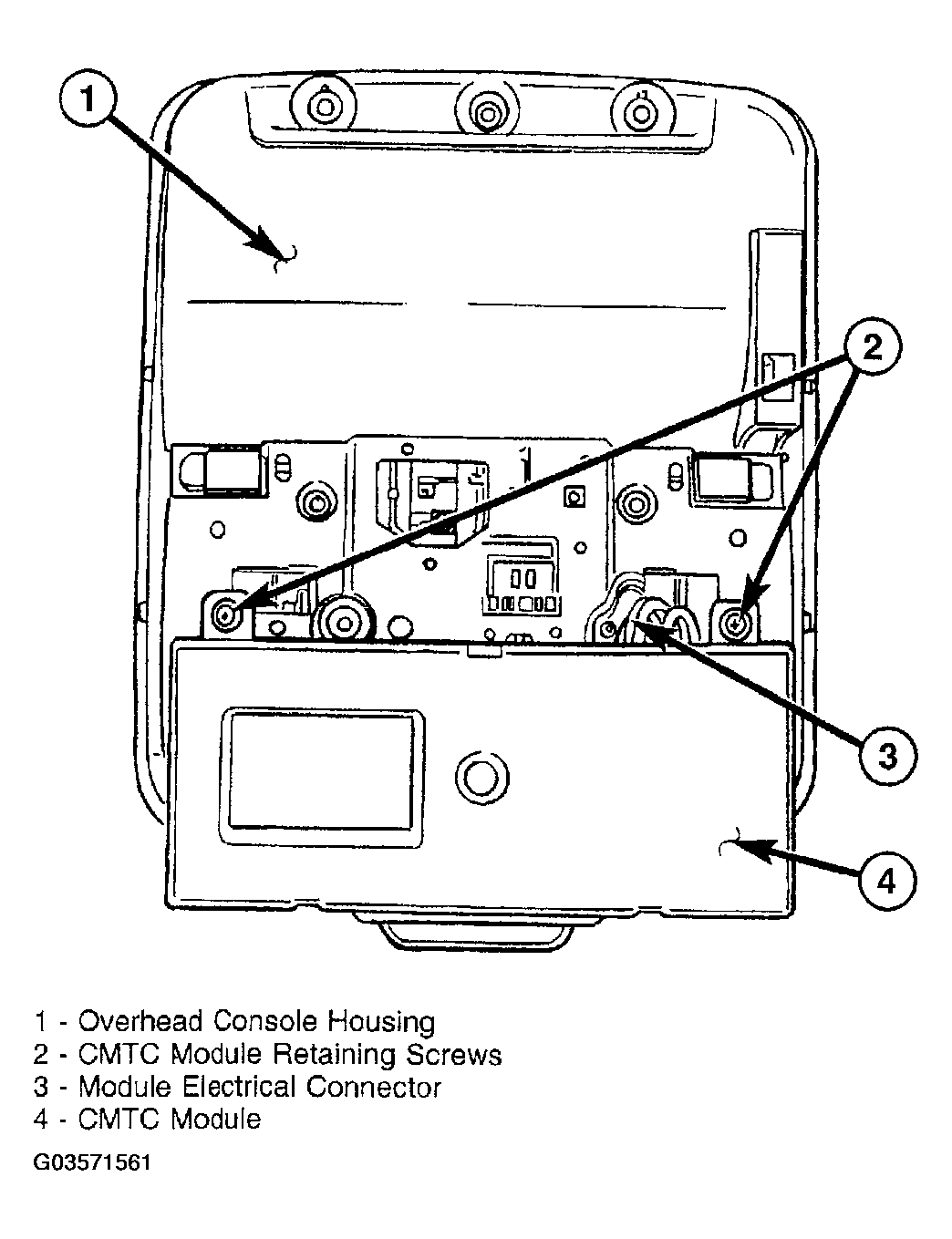

  2. Remove the two module retaining screws (Figure ).
  3. Disconnect the module electrical connector. Depress the connector retaining tab and pull straight apart.
  4. Remove the module from the overhead console.
