Engine Block Heater: Removal

WARNING: This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

Drain coolant from radiator and cylinder block (Refer to STANDARD PROCEDURE - COOLING SYSTEM DRAINING ).
Disconnect the power cord plug from heater.
Loosen bolt. Remove the block heater assembly (Fig 1 ).

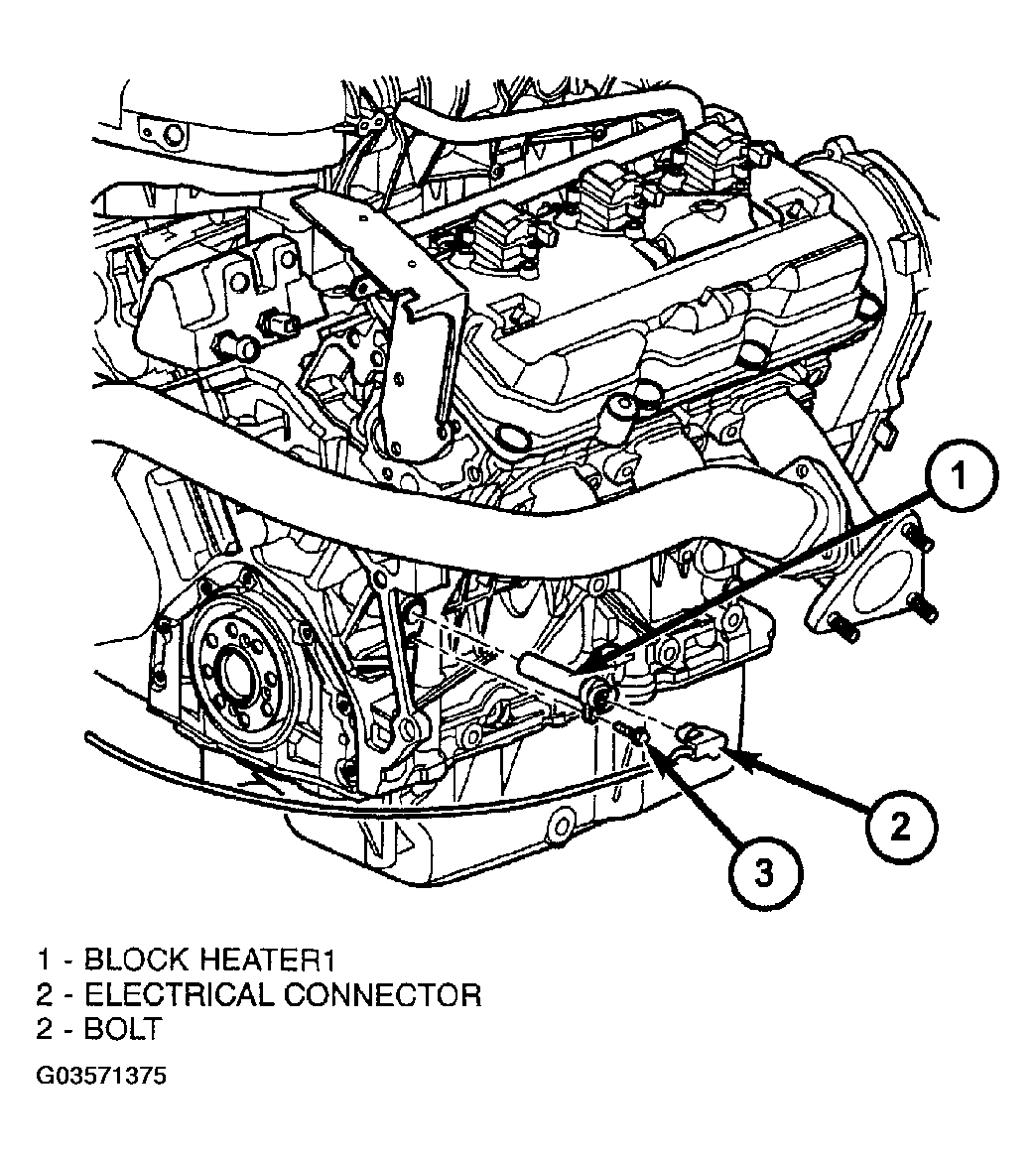

Fig 1: Removing Block Heater
Courtesy of DAIMLERCHRYSLER CORP.
