Input Flange Seal: Removal

WARNING: This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

Raise vehicle on hoist.
Remove propeller shaft. (Refer to PROPELLER SHAFT (AWD) )
Using tool 6958, loosen input flange nut (Fig 1 ).

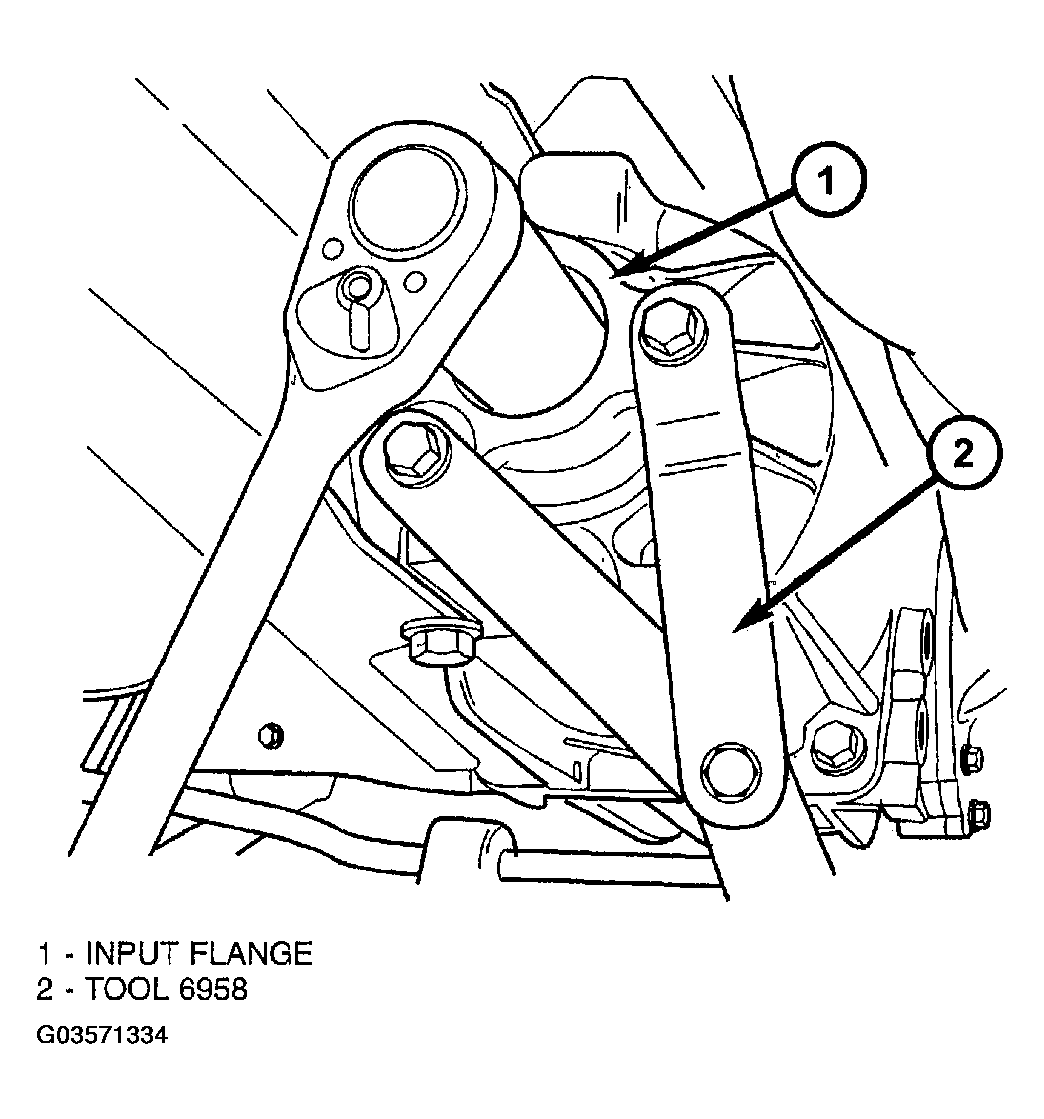

Fig 1: Loosening Input Flange Nut
Courtesy of DAIMLERCHRYSLER CORP.
Remove input flange nut and washer (Fig 2 ) (Fig 3 )
Remove input flange (Fig 4 ).
Using suitable screwdriver, remove input flange seal from overrunning clutch housing (Fig 5 ).

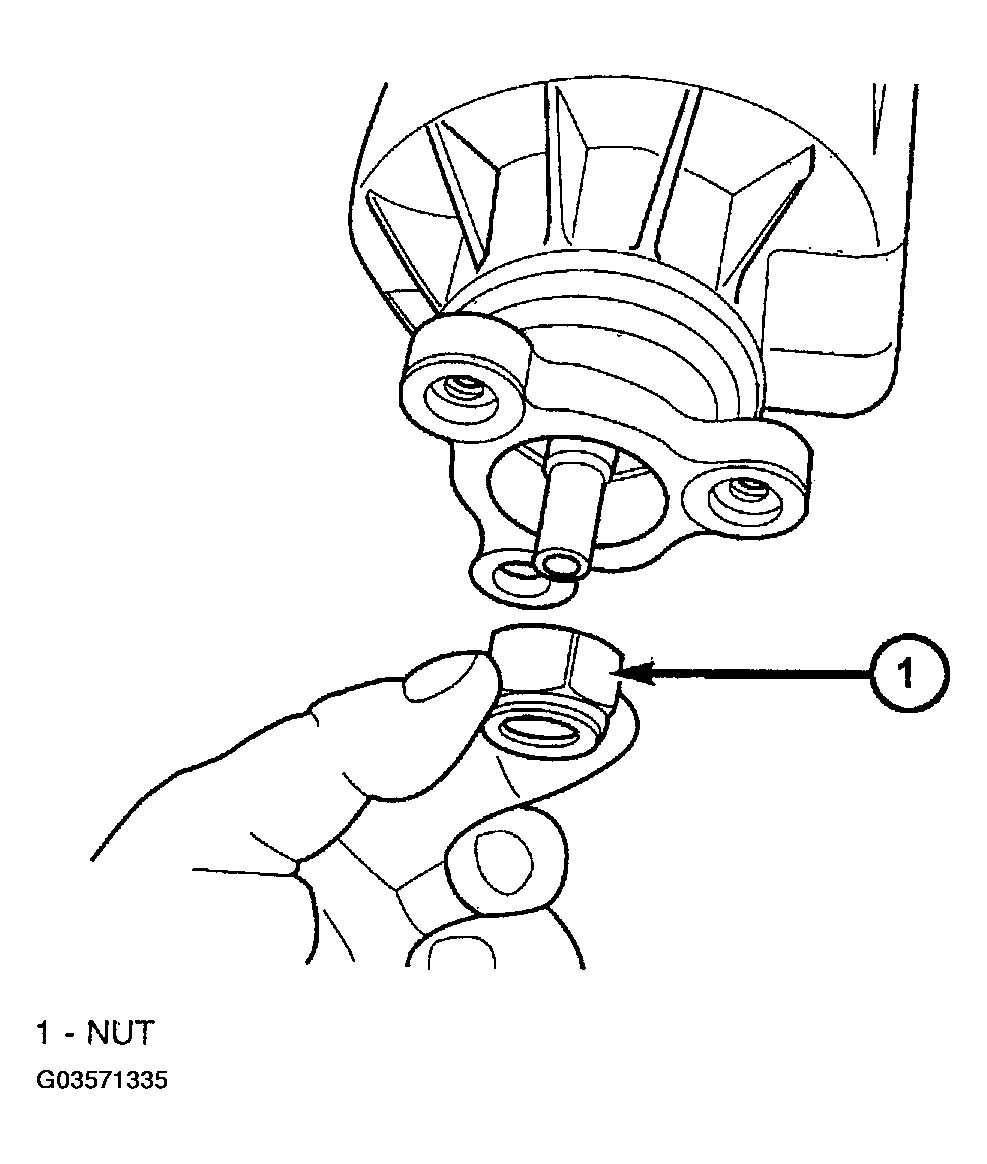

Fig 2: Removing Input Flange Nut
Courtesy of DAIMLERCHRYSLER CORP.

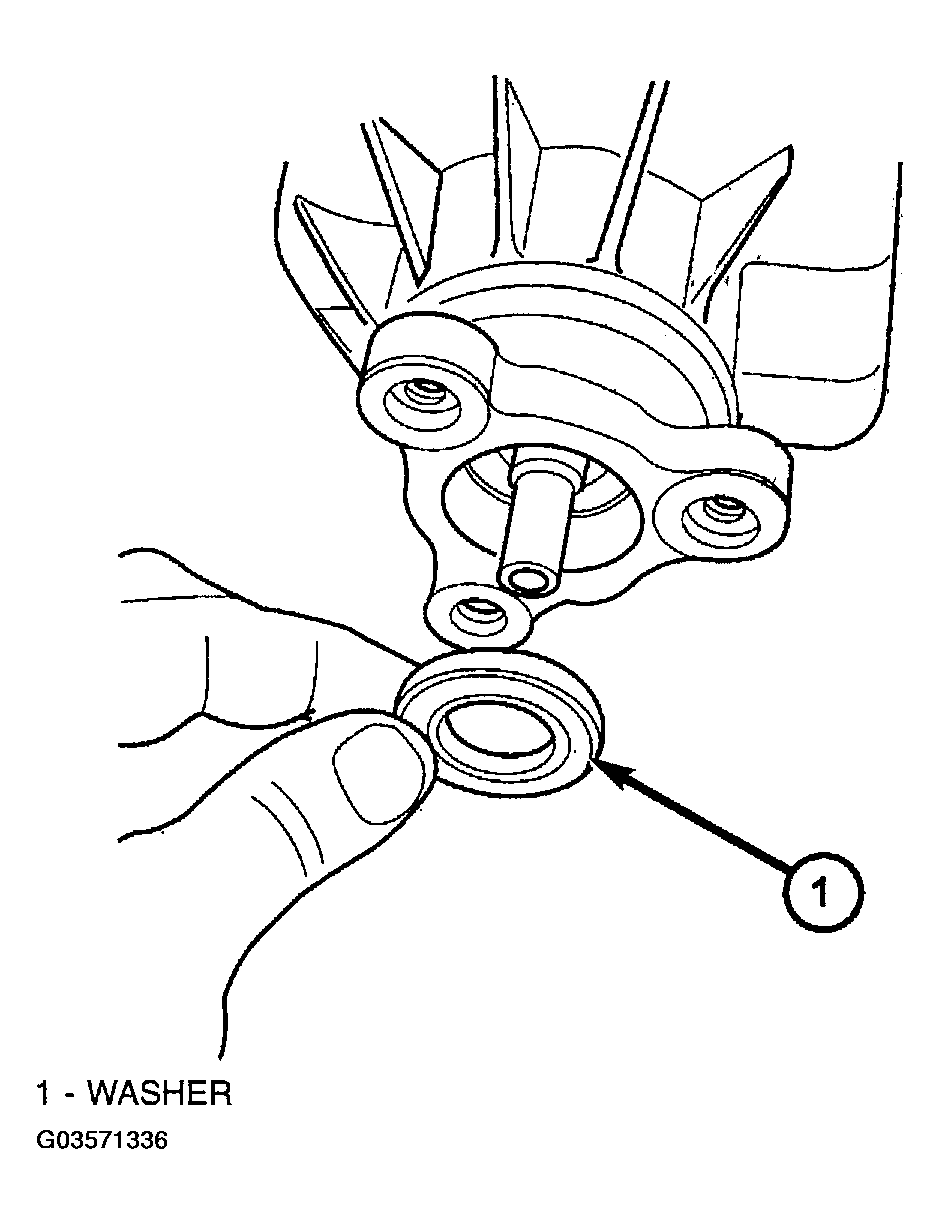

Fig 3: Removing Input Flange Washer
Courtesy of DAIMLERCHRYSLER CORP.

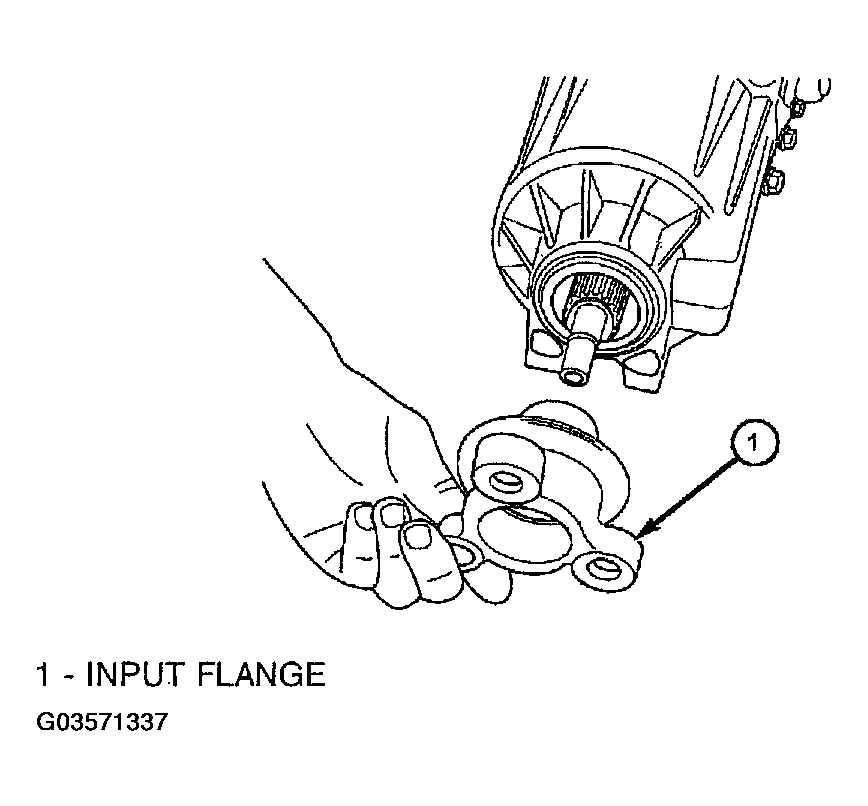

Fig 4: Removing Input Flange

Courtesy of DAIMLERCHRYSLER CORP.

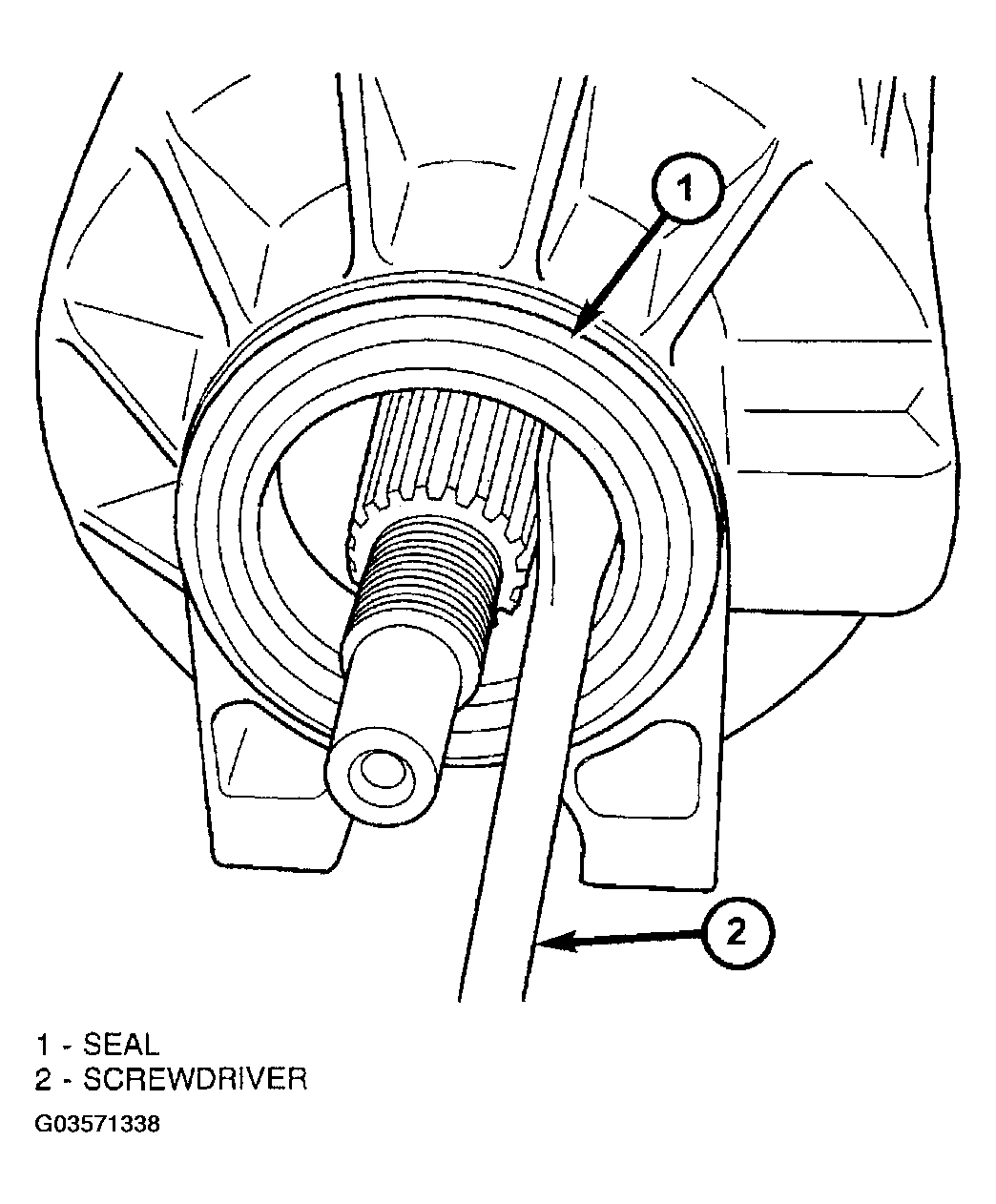

Fig 5: Removing Input Flange Seal

Courtesy of DAIMLERCHRYSLER CORP.
