Steering Column ASSY: Overhaul

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.
  1. PRECAUTION (SEE  AIR BAG RESTRAINT SYSTEMS  )
  2. SEPARATE BATTERY NEGATIVE TERMINAL
  3. REMOVE STEERING WHEEL COVER LOWER NO.2
  4. REMOVE STEERING WHEEL COVER LOWER NO.3
  5. PLACE FRONT WHEELS FACING STRAIGHT AHEAD
  6. REMOVE HORN BUTTON ASSY (SEE  HORN ASSY  )
  7. REMOVE STEERING WHEEL ASSY
    1. Remove the steering wheel assy set nut.
    2. Put matchmarks on the steering wheel assy and main shaft assy.
    3. Using SST, remove the steering wheel assy.

      SST 09950-50013 (09951-05010, 09952-05010, 09953-05020, 09954-05021)

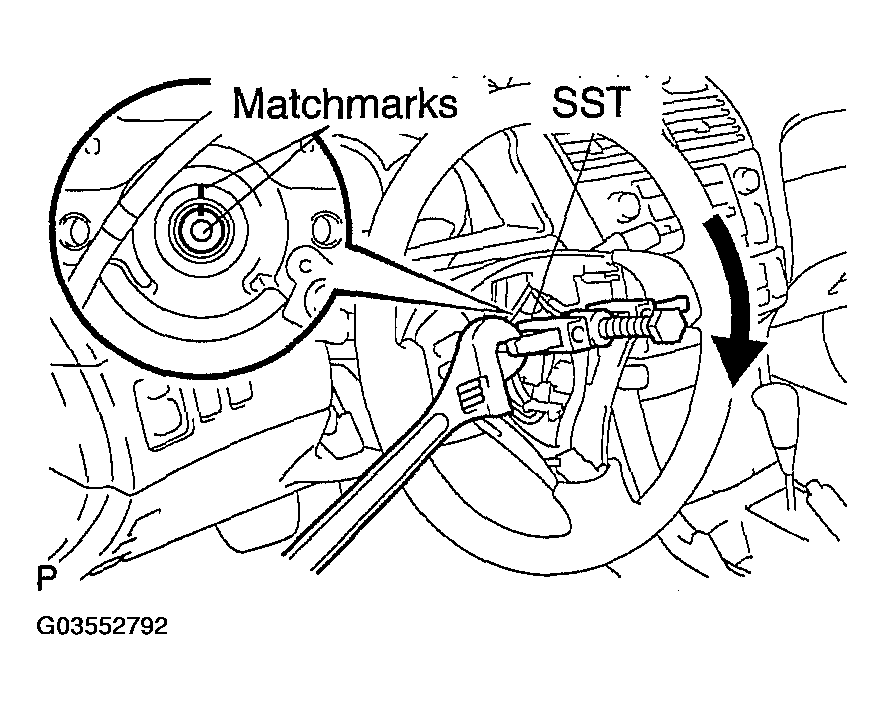

      Fig 1: Removing Steering Wheel Assy
      G03552792Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE STEERING COLUMN COVER LWR
    1. Remove the 2 screws and steering column cover LWR.

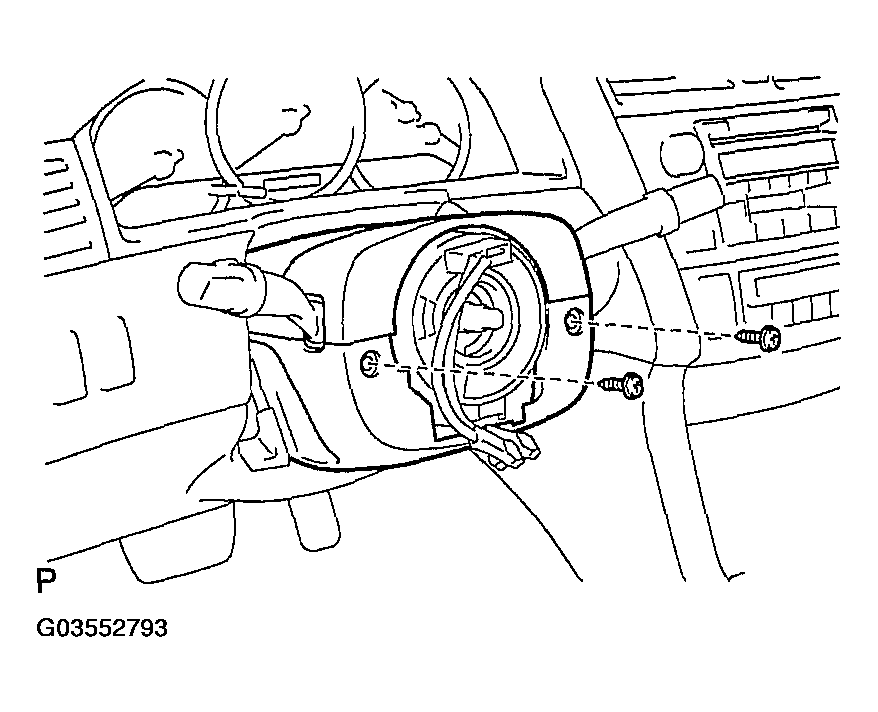

      Fig 2: Removing Steering Column Cover LWR
      G03552793Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE STEERING COLUMN COVER
  10. REMOVE TURN SIGNAL SWITCH ASSY W/SPIRAL CABLE SUB-ASSY
    1. Remove the 3 screws and turn signal switch assy w/spiral cable sub-assy.
  11. REMOVE FRONT DOOR SCUFF PLATE LH (SEE  REPLACEMENT  )
  12. REMOVE COWL SIDE TRIM SUB-ASSY LH (SEE  REPLACEMENT  )
  13. REMOVE INSTRUMENT PANEL FINISH LOWER PANEL LH (SEE  REPLACEMENT  )
  14. REMOVE INSTRUMENT PNL INSERT SUB-ASSY LWR LH
  15. REMOVE INSTRUMENT PANEL FINISH PLATE (SEE  REPLACEMENT  )
  16. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER (SEE  REPLACEMENT  )
  17. REMOVE HEATER TO FOOT DUCT NO.3 (SEE  OVERHAUL  )
  18. SEPARATE STEERING INTERMEDIATE SHAFT ASSY
    1. Disconnect the 4 connectors and wire harness clamp from the instrument panel junction block assy.

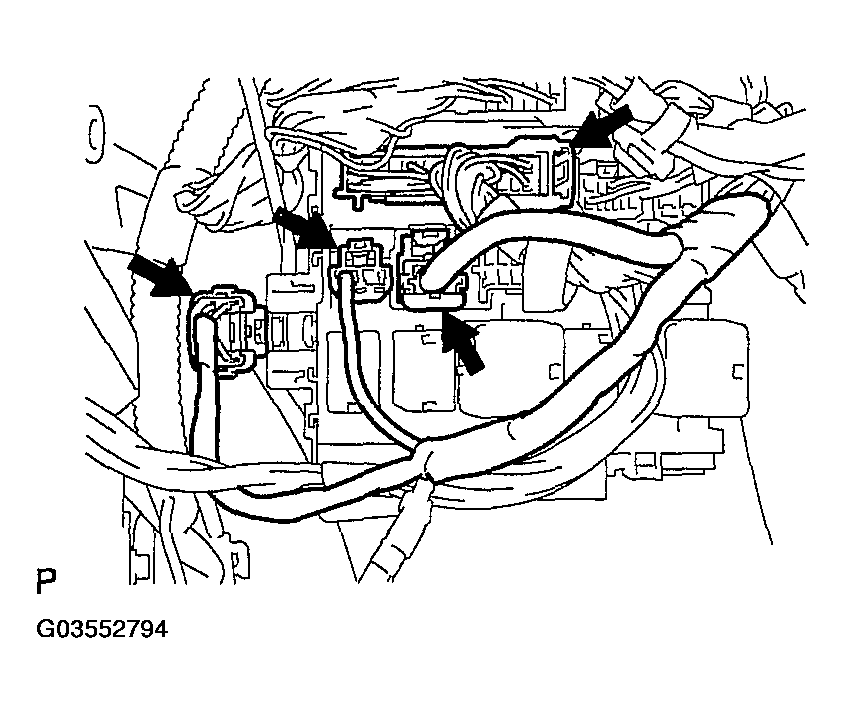

      Fig 3: Disconnecting Connectors & Wire Harness Clamp
      G03552794Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Loosen bolt A and remove the clamp from the steering column hole shield.
    3. Separate the steering column hole cover No.2 from the steering column hole shield.

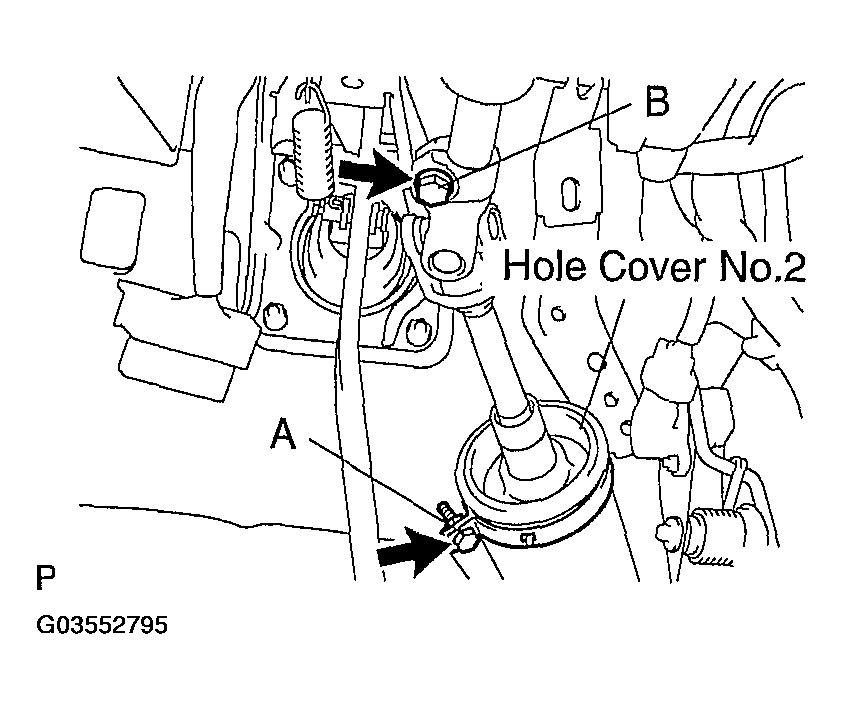

      Fig 4: Separating Steering Column Hole Cover No. 2 From Steering Column Hole Shield
      G03552795Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Loosen bolt B on the steering intermediate shaft sub-assy.
    5. Put matchmarks on the steering intermediate shaft sub-assy and steering gear assy.

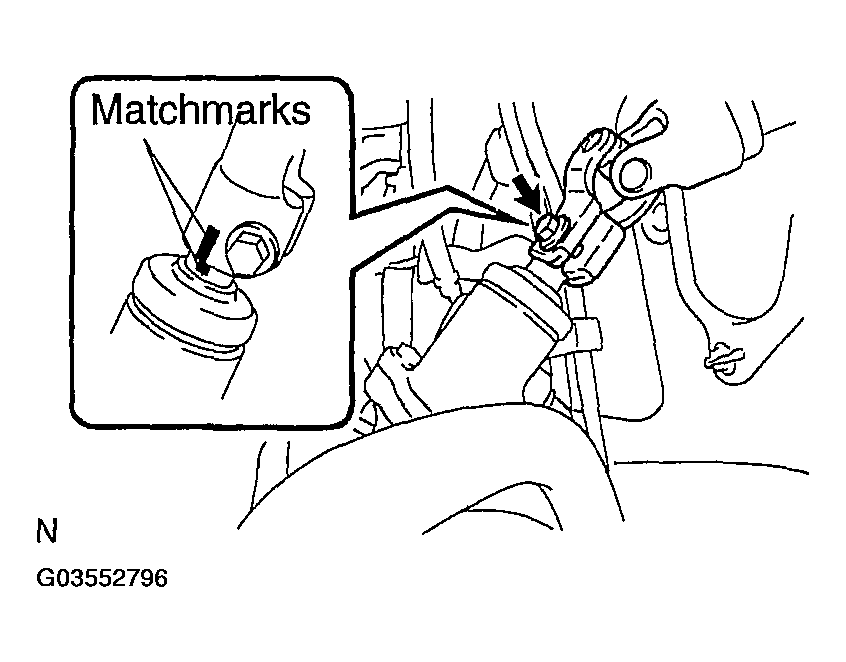

      Fig 5: Putting Matchmarks On Steering Intermediate Shaft Sub-Assy & Steering Gear Assy
      G03552796Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Remove the bolt and separate the steering intermediate shaft sub-assy.
  19. REMOVE STEERING COLUMN ASSY
    1. Disconnect the connectors and wire harness clamps from the steering column assy.
    2. Remove the 3 bolts and steering column assy.

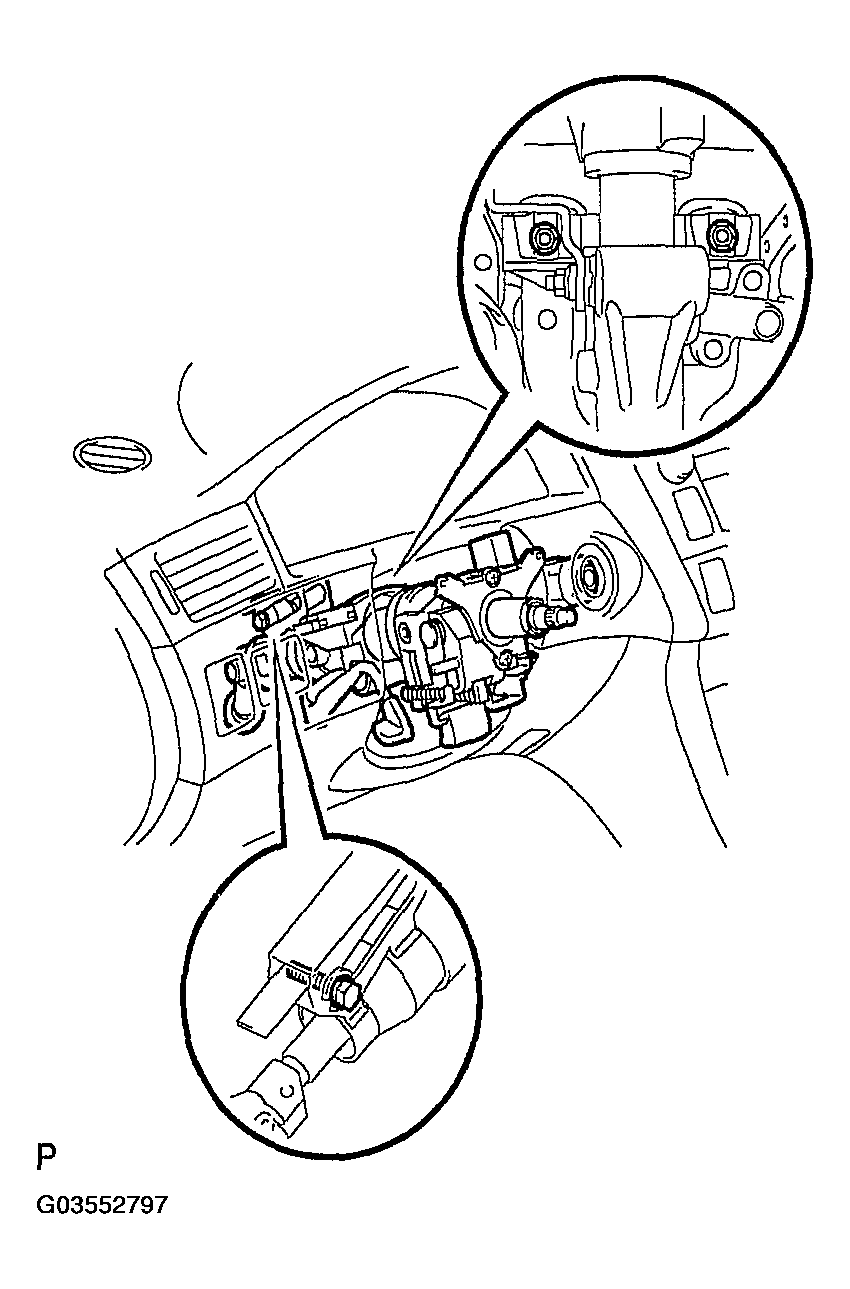

      Fig 6: Removing Steering Column Assy
      G03552797Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE STEERING INTERMEDIATE SHAFT ASSY
    1. Put matchmarks on the steering intermediate shaft sub-assy and steering main shaft assy.
    2. Remove the bolt and steering intermediate shaft sub-assy.
      Fig 7: Removing Steering Intermediate Shaft Assy
      G03552798Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. REMOVE TRANSPONDER KEY AMPLIFIER
    1. Widen the claw hung onto the upper bracket by approximately 1.0 mm (0.039 in.) using a screwdriver.
    2. Pull the transponder key amplifier towards the rear of the vehicle with the claw open.
      NOTE: Do not use excessive force to prevent the case from being damaged.
      Fig 8: Removing Transponder Key Amplifier
      G03552799Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. REMOVE STEERING COLUMN UPPER W/SWITCH BRACKET ASSY
    1. Using a centering punch, mark the center of the 2 tapered-head bolts.
    2. Using a 3 to 4 mm (0.12 to 0.16 in.) drill, drill a hole in the 2 bolt heads.
    3. Using a screw extractor, remove the 2 bolts and steering column upper w/switch bracket assy.

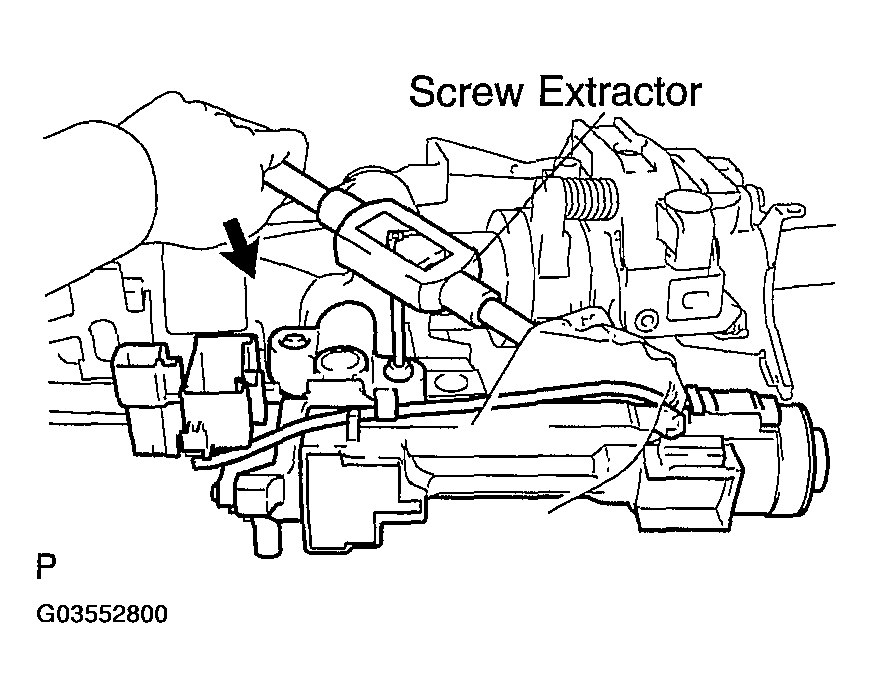

      Fig 9: Removing Steering Column Upper W/Switch Bracket Assy
      G03552800Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. REMOVE IGNITION SWITCH LOCK CYLINDER ASSY
    1. Place the ignition switch lock cylinder assy in the ACC position.
    2. Push down the stop pin with a screwdriver, and pull out the cylinder assy.

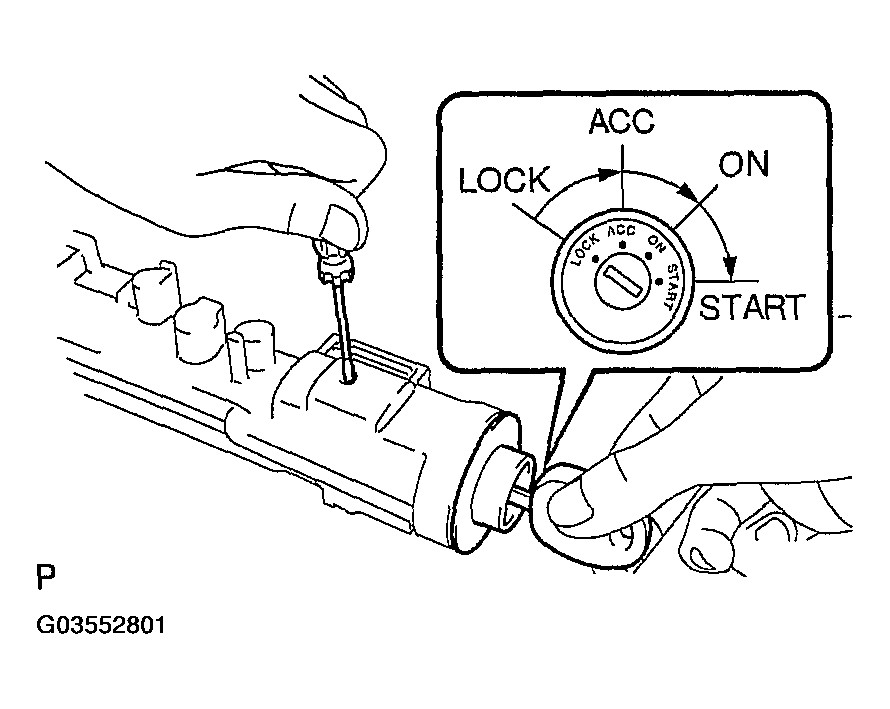

      Fig 10: Removing Ignition Switch Lock Cylinder Assy
      G03552801Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. REMOVE UN-LOCK WARNING SWITCH ASSY
    1. Separate the un-lock warning switch assy connector from the ignition or starter switch assy.
      Fig 11: Separating Un-Lock Warning Switch Assy Connector
      G03552802Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the un-lock warning switch assy by pushing up on the center part and disengaging the 2 claws.

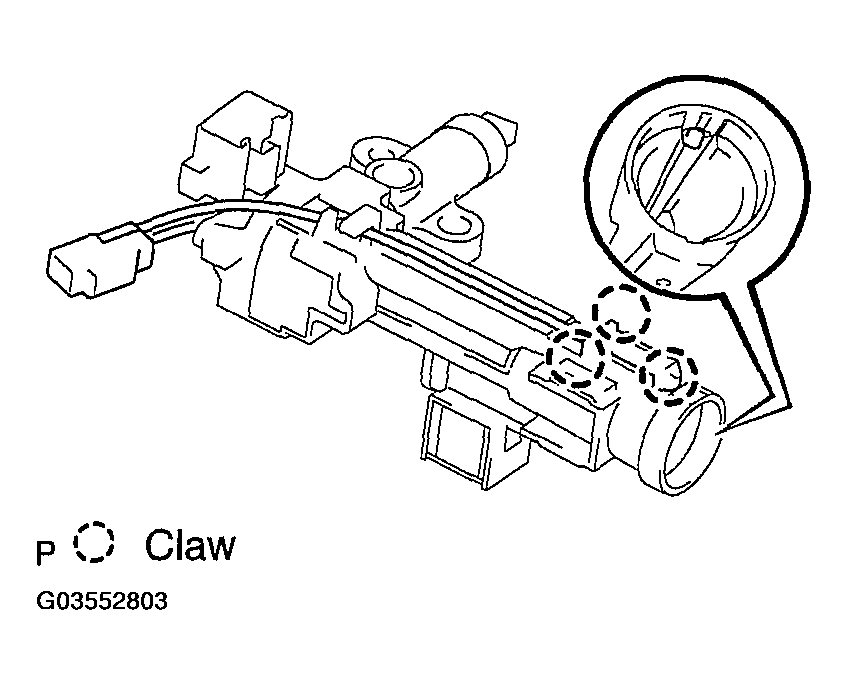

      Fig 12: Removing Un-Lock Warning Switch Assy
      G03552803Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the secondary locking device.
    4. Using a small screwdriver, disengage the locking lug of terminals 3 and 4, and pull the terminals out from the un-lock warning switch assy rear side.
      Fig 13: Disengaging Locking Lug Of Terminals 3 & 4
      G03552804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. REMOVE KEY INTER LOCK SOLENOID (A/T TRANSAXLE)
    1. Remove the 2 screws and solenoid from the steering column bracket assy.
  26. REMOVE IGNITION OR STARTER SWITCH ASSY
    1. Remove the 2 screws and ignition or starter switch assy from the steering column bracket assy UPR.
  27. INSTALL IGNITION OR STARTER SWITCH ASSY
    1. Install the ignition or starter switch assy to the steering column bracket assy UPR with the 2 screws.
  28. INSTALL KEY INTER LOCK SOLENOID (A/T TRANSAXLE)
    1. Install the solenoid to the steering column bracket assy with the 2 screws.
  29. INSTALL UN-LOCK WARNING SWITCH ASSY
    1. Install the un-lock warning switch assy.
    2. Connect terminals 3 and 4 of the un-lock warning switch assy connector.
    3. Connect the un-lock warning switch assy connector to the ignition or starter switch assy.
      Fig 14: Installing Un-Lock Warning Switch Assy
      G03552805Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. INSTALL IGNITION SWITCH LOCK CYLINDER ASSY
    1. Make sure the ignition switch lock cylinder assy is in the ACC position.
    2. Install the ignition switch lock cylinder assy.
  31. INSPECT STEERING LOCK OPERATION
    1. Check that the steering lock mechanism is activated when the key is removed.
    2. Check that the steering lock mechanism is deactivated when the key is inserted and turned to the ACC position.

      HINT:

      If there is any abnormality, replace the ignition switch lock cylinder assy.

  32. INSTALL STEERING COLUMN UPPER W/SWITCH BRACKET ASSY
    1. Temporarily install the steering column upper w/switch bracket assy and steering column upper clamp with 2 new tapered-head bolts.
    2. Tighten the 2 tapered-head bolts until the bolt heads break off.

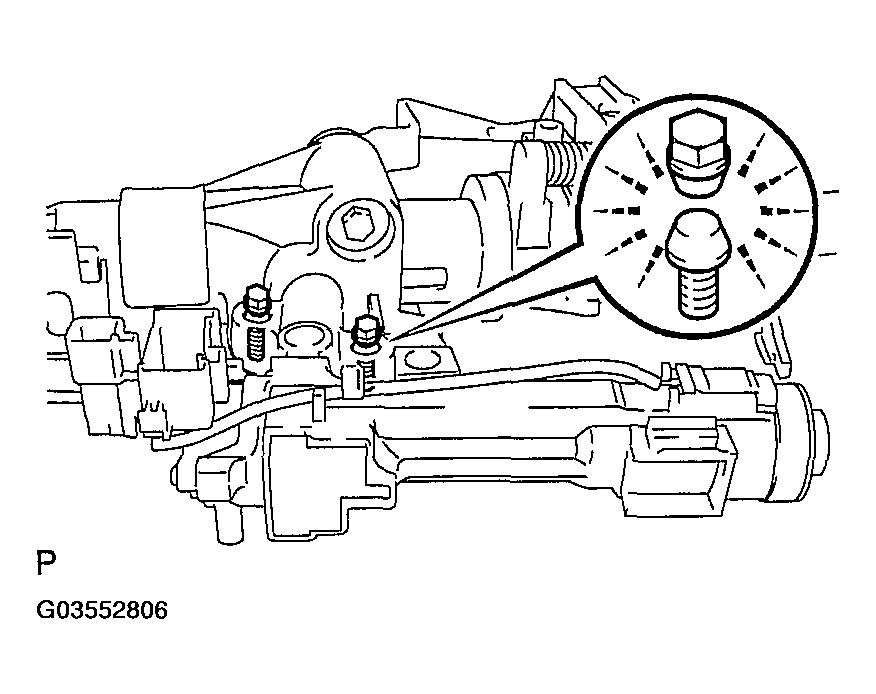

      Fig 15: Installing Steering Column Upper W/Switch Bracket Assy
      G03552806Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. INSTALL TRANSPONDER KEY AMPLIFIER
    1. Align the transponder key amplifier with the installation position of the upper bracket with the amplifier inclined.
    2. Push the transponder key amplifier up and install it to the upper bracket.
      NOTE: Do not push the amplifier up with excessive force.
      Fig 16: Installing Transponder Key Amplifier
      G03552807Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  34. INSTALL STEERING INTERMEDIATE SHAFT ASSY
    1. Align the matchmarks on the steering intermediate shaft sub-assy and the steering main shaft assy.
    2. Temporarily install the steering intermediate shaft sub-assy with the bolt.
      Fig 17: Installing Steering Intermediate Shaft Assy Aligning Matchmarks
      G03552808Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  35. INSTALL STEERING COLUMN ASSY
    1. Install the steering column assy with the 3 bolts.

      Torque: 21.0 N.m (210 kgf.cm, 15 ft.lbf)

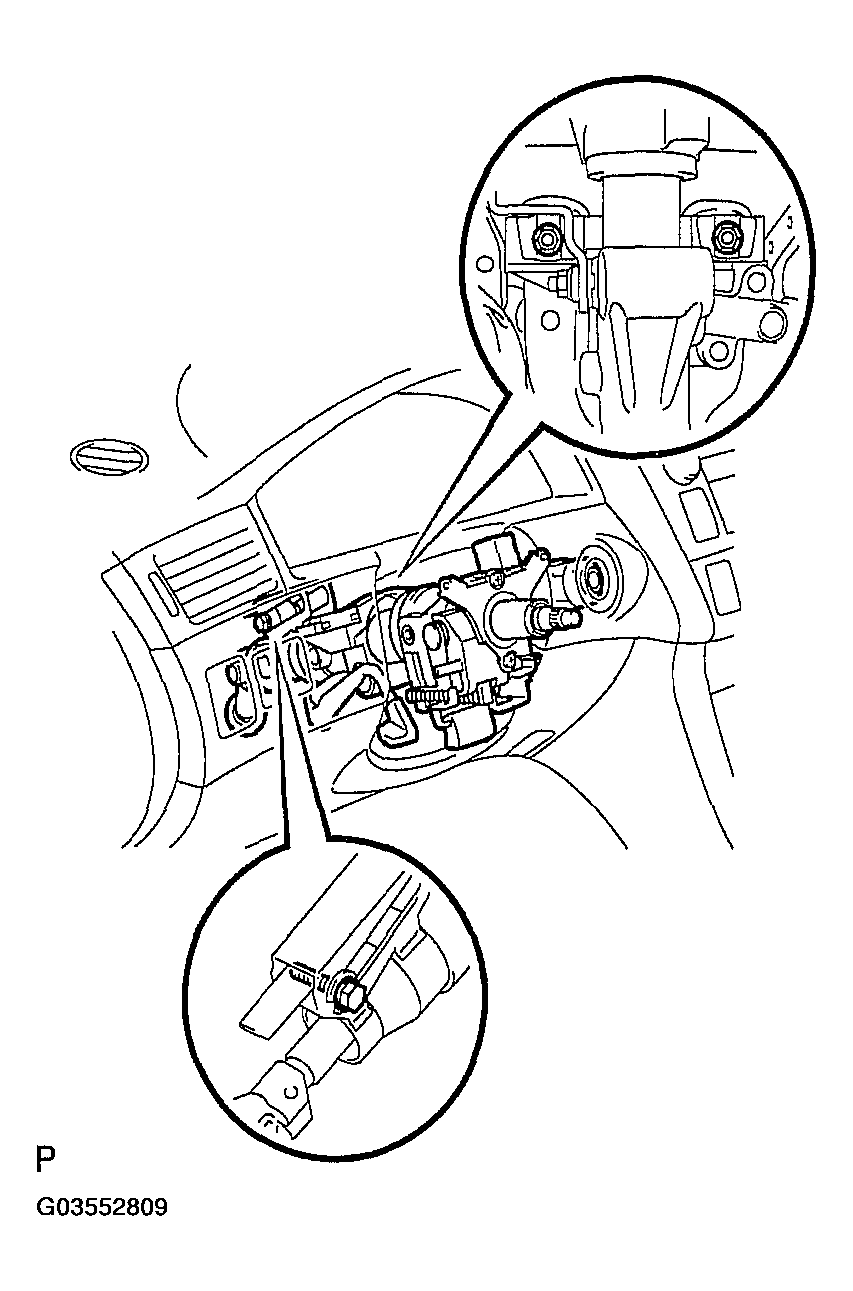

      Fig 18: Installing Steering Column Assy
      G03552809Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the connectors.
    3. Install the wire harness clamps to the steering column tube.
  36. INSTALL STEERING INTERMEDIATE SHAFT ASSY
    1. Align the matchmarks on the intermediate shaft sub-assy and the steering gear assy.

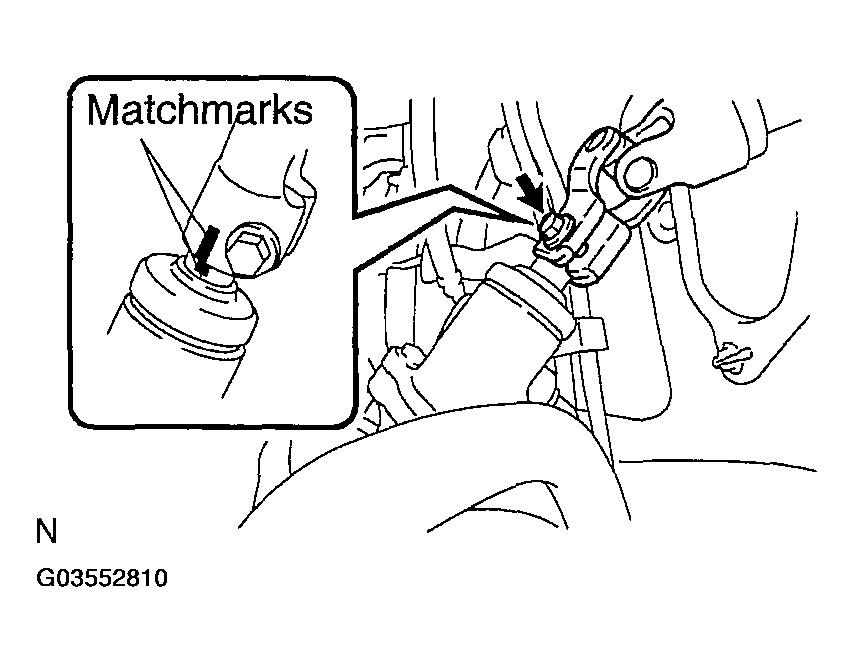

      Fig 19: Aligning Matchmarks On Intermediate Shaft Sub-Assy & Steering Gear Assy
      G03552810Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the bolt.

      Torque: 35.0 N.m (360 kgf.cm, 26 ft.lbf)

    3. Tighten bolt B on the intermediate shaft sub-assy.

      Torque: 35.0 N.m (360 kgf.cm, 26 ft.lbf)

      Fig 20: Tightening Bolt B On Intermediate Shaft Sub-Assy
      G03552811Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Install the steering column hole cover No.2 to the steering column hole shield.
    5. Connect the clamp to the steering column hole shield and tighten bolt A.
    6. Connect the 4 connectors and install the wire harness clamp to the instrument panel junction block assy.

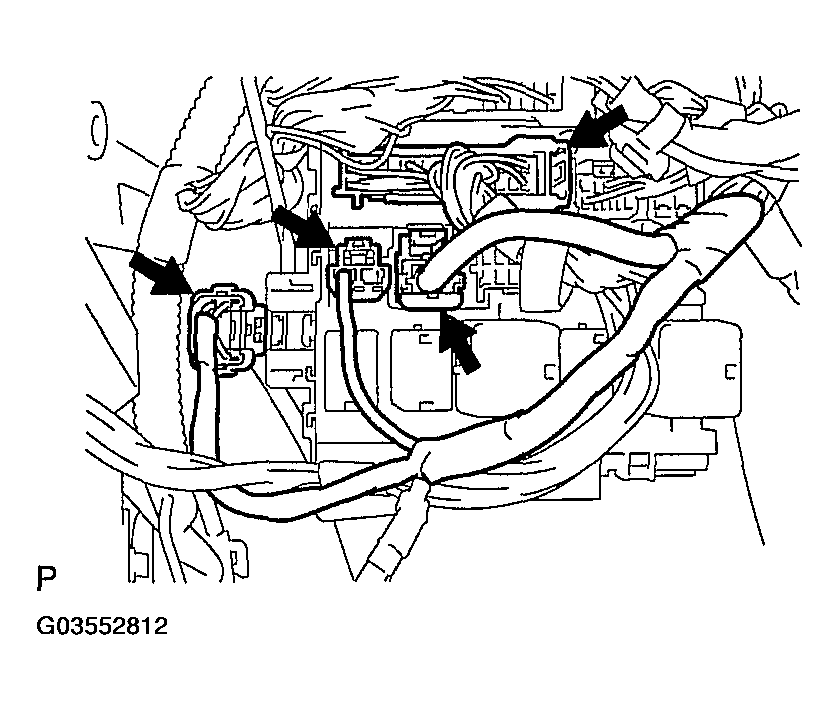

      Fig 21: Connecting Connectors & Installing Wire Harness Clamp
      G03552812Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  37. PLACE FRONT WHEELS FACING STRAIGHT AHEAD
  38. CHECK KEY INTERLOCK OPERATION

    HINT:

    If there is abnormality, replace the key interlock solenoid.

  39. CENTER SPIRAL CABLE (SEE  SPIRAL CABLE  )
  40. INSTALL STEERING WHEEL ASSY
    1. Align the matchmarks on the steering wheel assy and the steering main shaft assy.
    2. Install the steering wheel assy with the set nut.

      Torque: 50 N.m (510 kgf.cm, 37 ft.lbf)

    3. Connect the connector.
  41. INSPECT HORN BUTTON ASSY (SEE  HORN ASSY  )
  42. INSTALL HORN BUTTON ASSY (SEE  HORN ASSY  )
  43. INSPECT STEERING WHEEL CENTER POINT

    HINT:

    When the steering wheel is not properly centered, remove and refit to center.

  44. INSPECT SRS WARNING LIGHT (SEE  AIR BAG RESTRAINT SYSTEMS  )
  45. PERFORM INITIALIZATION (SEE  INITIALIZATION  )

    HINT:

    When disconnecting the negative battery terminal, it is necessary to initialize other systems.
