Inspection Procedure
- Disconnect "N6" connector of navigation ECU and check if AVC-LAN will be recovered normally.
CHECK:
Check that the display will change by pressing either of the Panel switch on the display.
HINT:
If the display is changed, recovery of AVC-LAN can be confirmed.
- OK : Replace navigation ECU (See HOW TO USE THE DIAGNOSTIC CHART AND INSPECTION PROCEDURE ).
- NG : Go to next step.
- Disconnect connector "A38" of audio and rear A/C control switch and check if AVC-LAN will be recovered normally.
CHECK:
Check that the display will change by pressing either of the Panel switch on the display.
HINT:
If the display is changed, recovery of AVC-LAN can be confirmed.
- OK : Replace audio and rear A/C control switch.
- NG : Go to next step.
- Disconnect connector "S33" of stereo component amplifier, check if AVC-LAN will be recovered normally.
CHECK:
Check that the display will change by pressing either of the Panel switch on the display.
HINT:
If the display is changed, recovery of AVC-LAN can be confirmed.
- OK : Replace navigation ECU and stereo amplifier, amplifier and rear control switch (See DISASSEMBLY ).
- NG : Go to next step.
- Disconnect the "S32" connector of stereo component amplifier and check if AVC-LAN will be recovered normally.
CHECK:
Check that the display will change by pressing either of the Panel switch on the display.
HINT:
It can be judged that AVC-LAN is recovered if the display is changed.
- OK : Replace the stereo component amplifier (See HOW TO USE THE DIAGNOSTIC CHART AND INSPECTION PROCEDURE ).
- NG : Go to next step.
- Disconnect the "S35" connector of the stereo component tuner and check if AVC-LAN will be recovered normally.
CHECK:
Check that the display will change by pressing either of the Panel switch on the display.
HINT:
It can be judged that AVC-LAN is recovered if the display is changed.
- OK : Replace the stereo component tuner (See HOW TO USE THE DIAGNOSTIC CHART AND INSPECTION PROCEDURE ).
- NG : Go to next step.
- Disconnect the "R4" connector of the radio and player and check if AVC-LAN will be recovered normally.
CHECK:
Check that the display will change by pressing either of the Panel switch on the display.
HINT:
It can be judged that AVC-LAN is recovered if the display is changed.
- NG : Repair or replace wire harness or connector between radio and player and stereo component tuner (See HOW TO USE THE DIAGNOSTIC CHART AND INSPECTION PROCEDURE ).
- OK : Go to next step.
- Check wire harness and connector between radio and player and multi display (See HOW TO USE THE DIAGNOSTIC CHART AND INSPECTION PROCEDURE
).
- NG : Repair or replace wire harness or connector between radio and player and multi display (See HOW TO USE THE DIAGNOSTIC CHART AND INSPECTION PROCEDURE ).
- OK : Go to next step.
- Skip radio and player and check AVC-LAN.
PREPARATION:
- Disconnect radio and player "R5" connector.

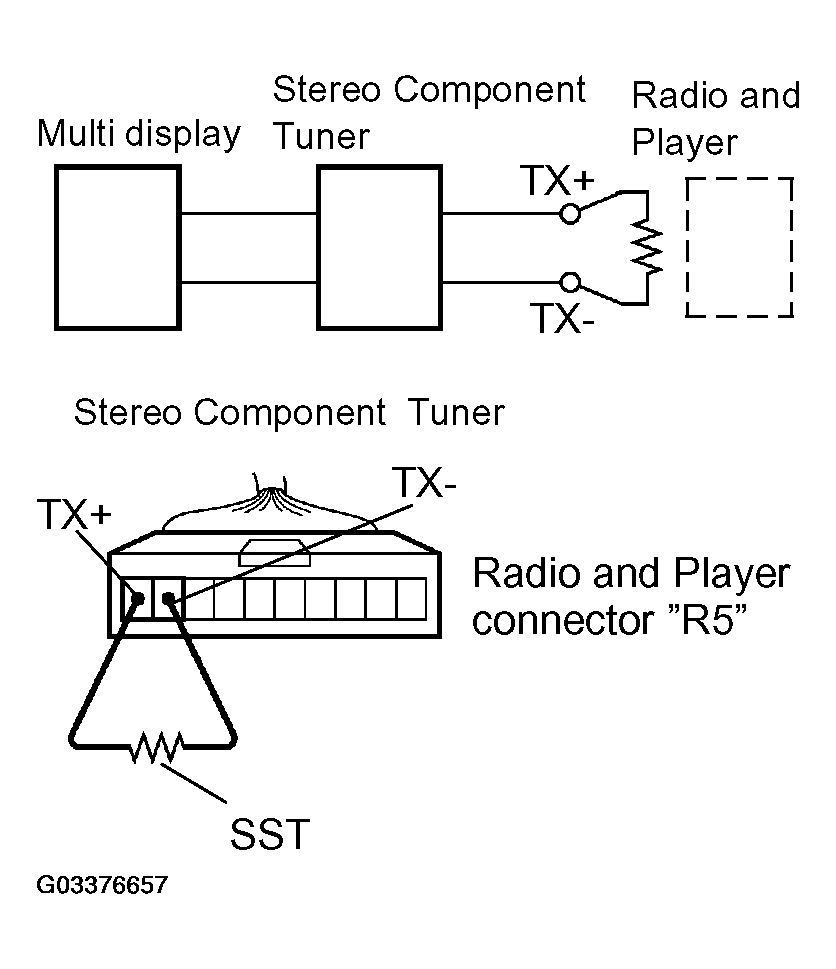

- Using SST (Navigation Check Wire P/N 09843-18050), connect terminal TX+ to terminal TX- of "R5" connector of the radio and player.
CHECK:
Operate the panel switch of the display and check that the navigation system functions (Check that AVC-LAN is recovered.).
- OK : Replace radio and player (See HOW TO USE THE DIAGNOSTIC CHART AND INSPECTION PROCEDURE ).
- NG : Replace multi display (See HOW TO USE THE DIAGNOSTIC CHART AND INSPECTION PROCEDURE ).
