Section 817 (Headlight Cleaner System): Location

WARNING: This page is about a different car, the 2003 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.

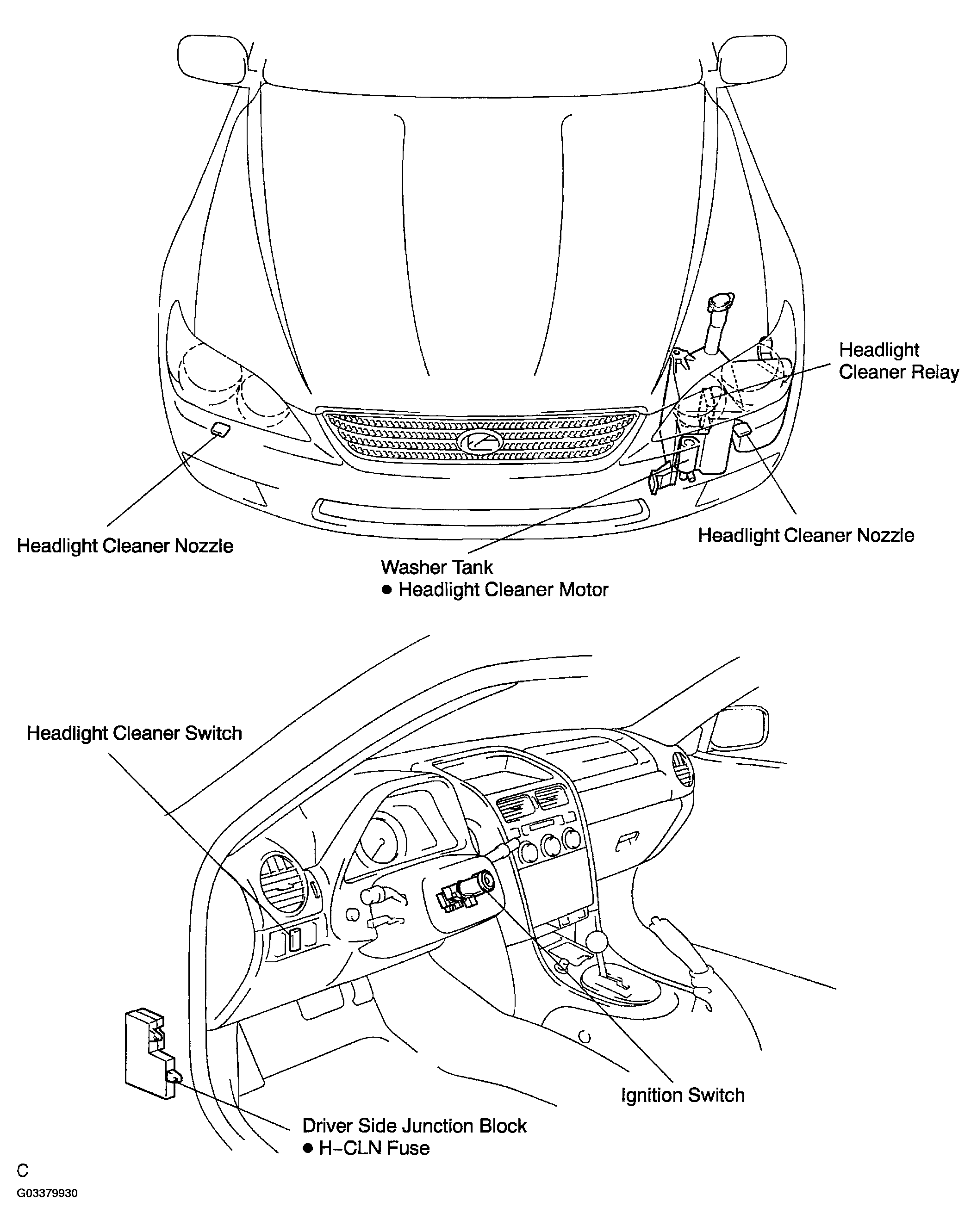

Fig 1: Identifying Headlight Cleaner System Components Location
G03379930Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
