Inspection Procedure

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT FUSE (ECU-B)
    1. Remove the ECU-B fuse from the instrument panel J/B.
    2. Measure the resistance of the fuse.

      Standard: Below 1 Ω

    1. NG : REPLACE FUSE
    2. OK : Go to Next Step.
  2. CHECK WIRE HARNESS (INSTRUMENT PANEL J/B ASSY - BATTERY)
    1. Disconnect the 2I J/B connector.
    2. Measure the voltage of the wire harness side connector.

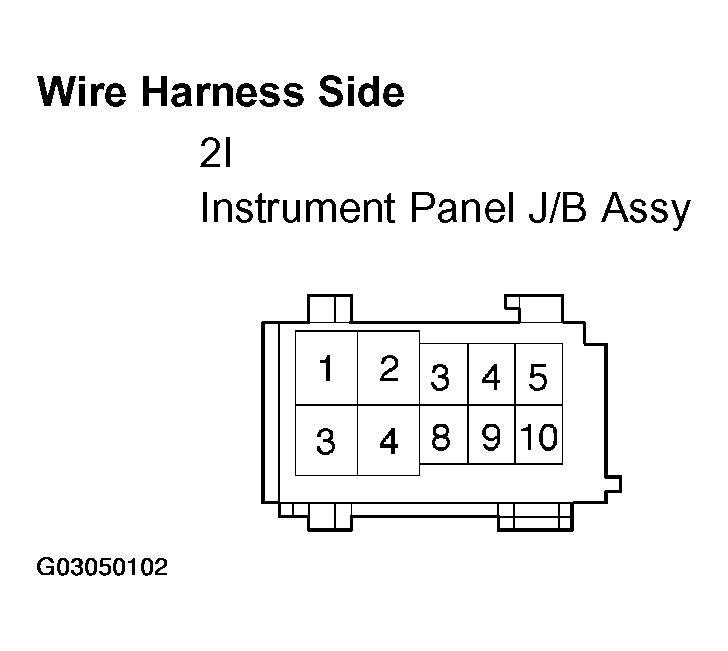

      Fig 1: Measuring Voltage Between 2I & Body Ground
      G03050102Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard:

      CONNECTOR TERMINAL DESCRIPTION

      Tester Connection Specified Condition
      2I-7 - Body ground 10 to 14 V
    1. NG : REPAIR OR REPLACE HARNESS AND CONNECTOR
    2. OK : Go to Next Step.
  3. INSPECT INSTRUMENT PANEL JUNCTION BLOCK ASSY
    1. Disconnect the 2I and 2H*1 or 2M*2 J/B connectors.
    2. Measure the resistance of the J/B.

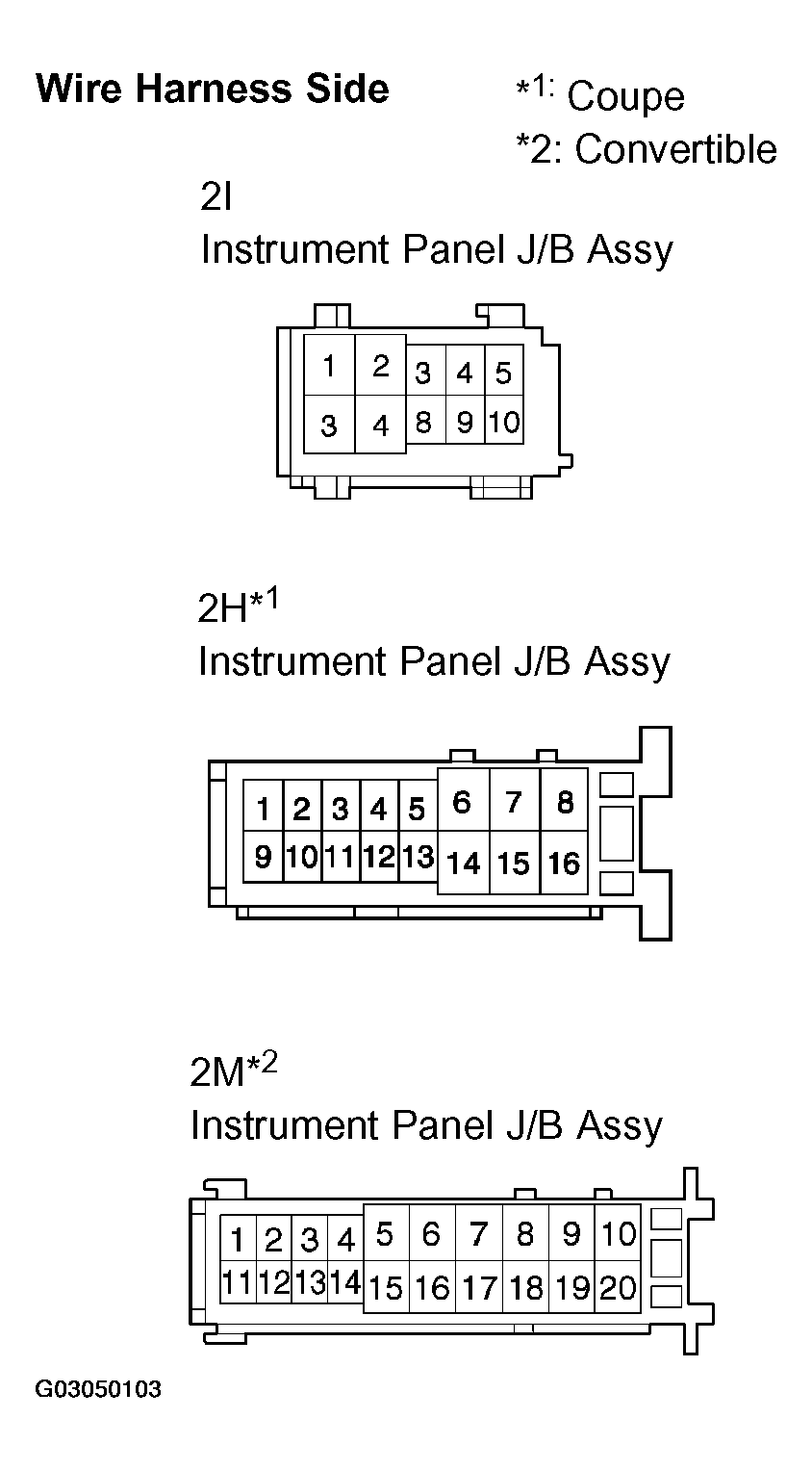

      Fig 2: Measuring Resistance Between Instrument Panel J/B Assy
      G03050103Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard:

      CONNECTOR TERMINAL DESCRIPTION

      Tester Connection Specified Condition
      2I-7 - 2H-2*1 Below 1 Ω
      2I-7 - 2M-14*2 Below 1 Ω
    1. NG : REPLACE INSTRUMENT PANEL JUNCTION BLOCK ASSY
    2. OK : Go to Next Step.
  4. CHECK WIRE HARNESS (INSTRUMENT PANEL J/B ASSY - INSTRUMENT PANEL J/B ASSY AND BODY GROUND)
    1. Disconnect the 2F, 2H**1 and 2M J/B connectors.
    2. Measure the resistance of the wire harness side connectors.

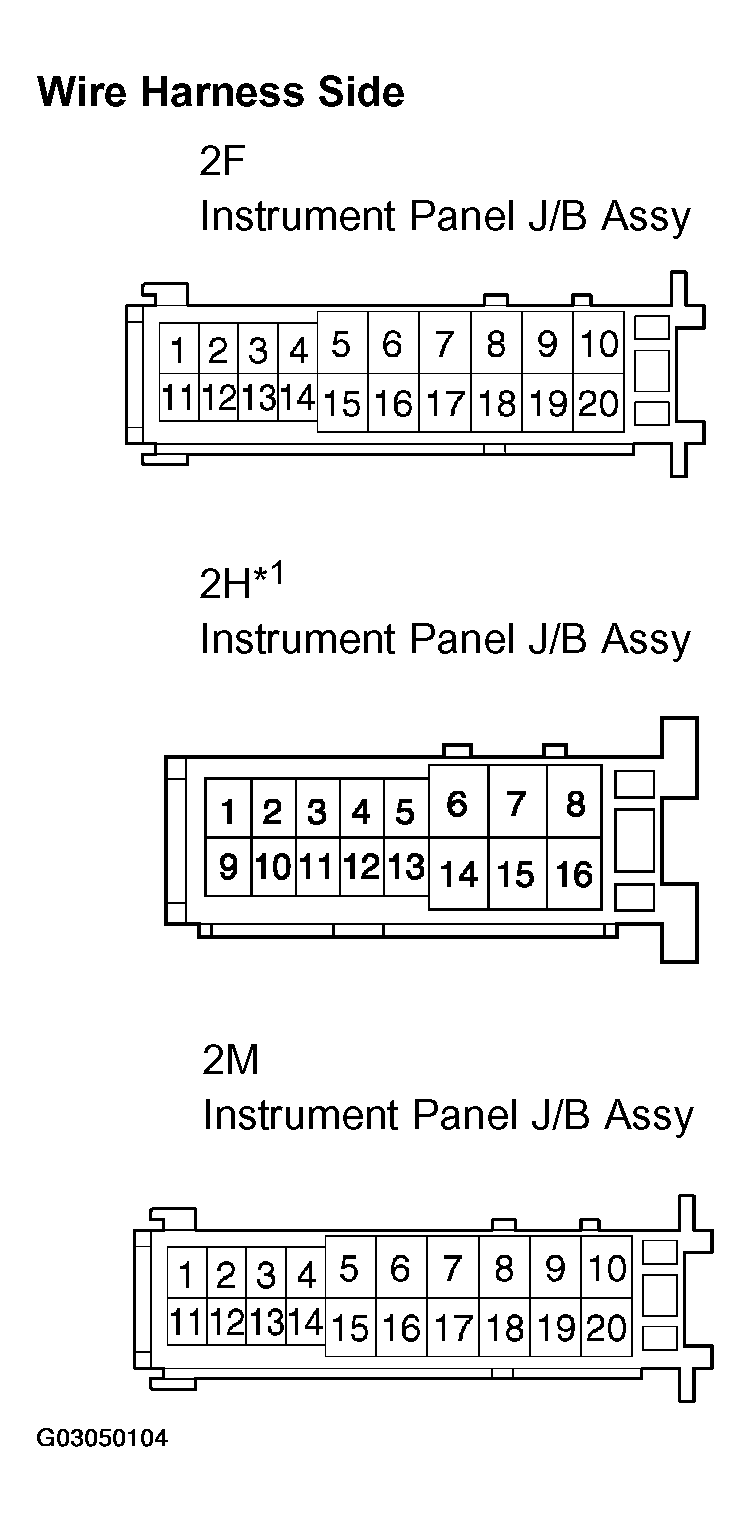

      Fig 3: Measuring Resistance Between Instrument Panel J/B Assy
      G03050104Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard:

      CONNECTOR TERMINAL DESCRIPTION

      Tester Connection Specified Condition
      2F-1 - 2H-2(1) Below 1 Ω
      2F-1 - 2M-14(2) Below 1 Ω
      2M-9 - Body ground Below 1 Ω
      2F-10 - Body ground Below 1 Ω
      (1) : Coupe
      (2) : Convertible
    1. NG : REPAIR OR REPLACE HARNESS AND CONNECTOR
    2. OK : PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE (See  PROBLEM SYMPTOMS TABLE  )
