Terminals Of Ecu

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

INSTRUMENT PANEL JUNCTION BLOCK ASSY (MULTIPLEX NETWORK BODY ECU)

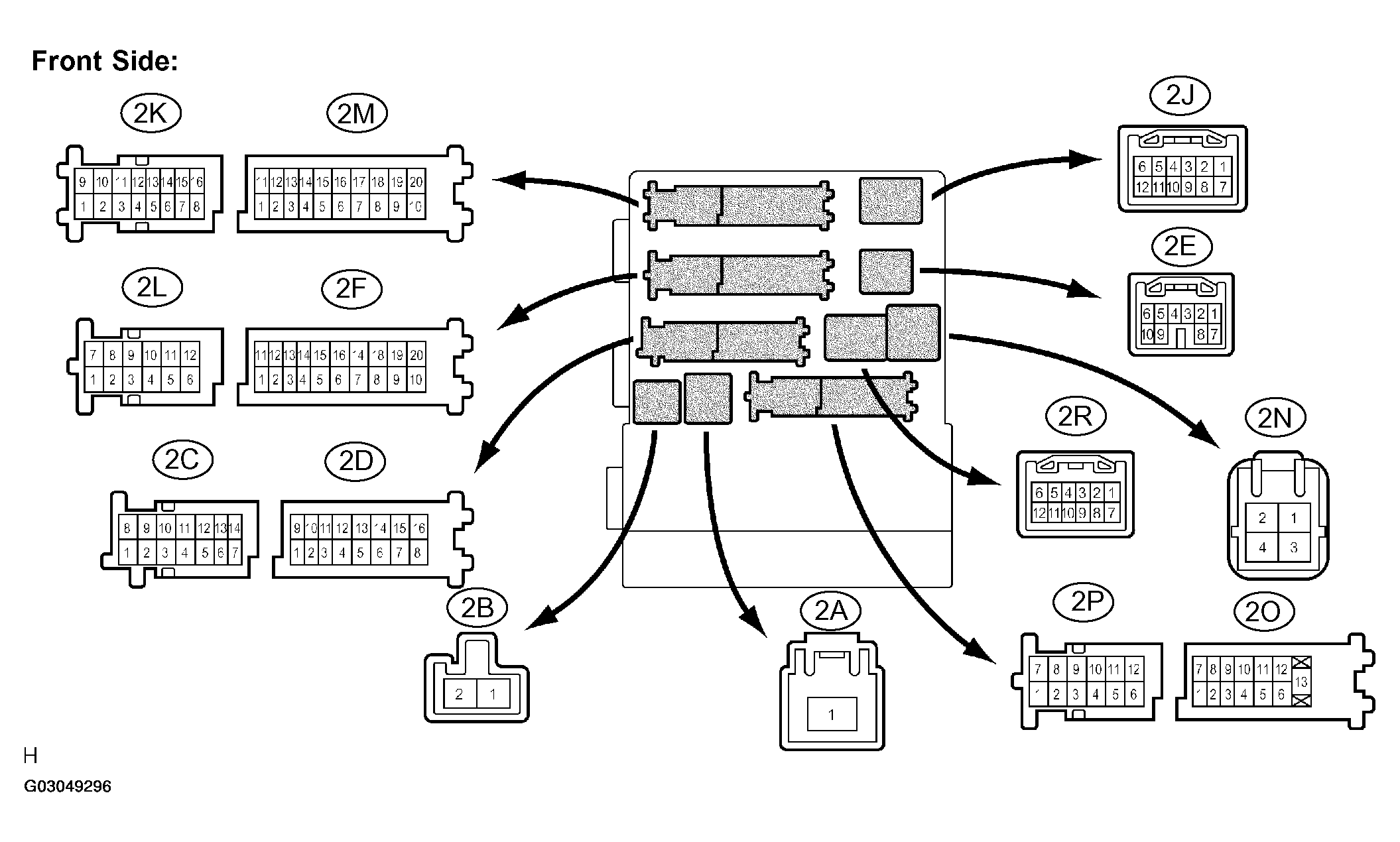

Fig 1: Instrument Panel Junction Block Assy (Multiplex Network Body ECU) Terminals - Front Side
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

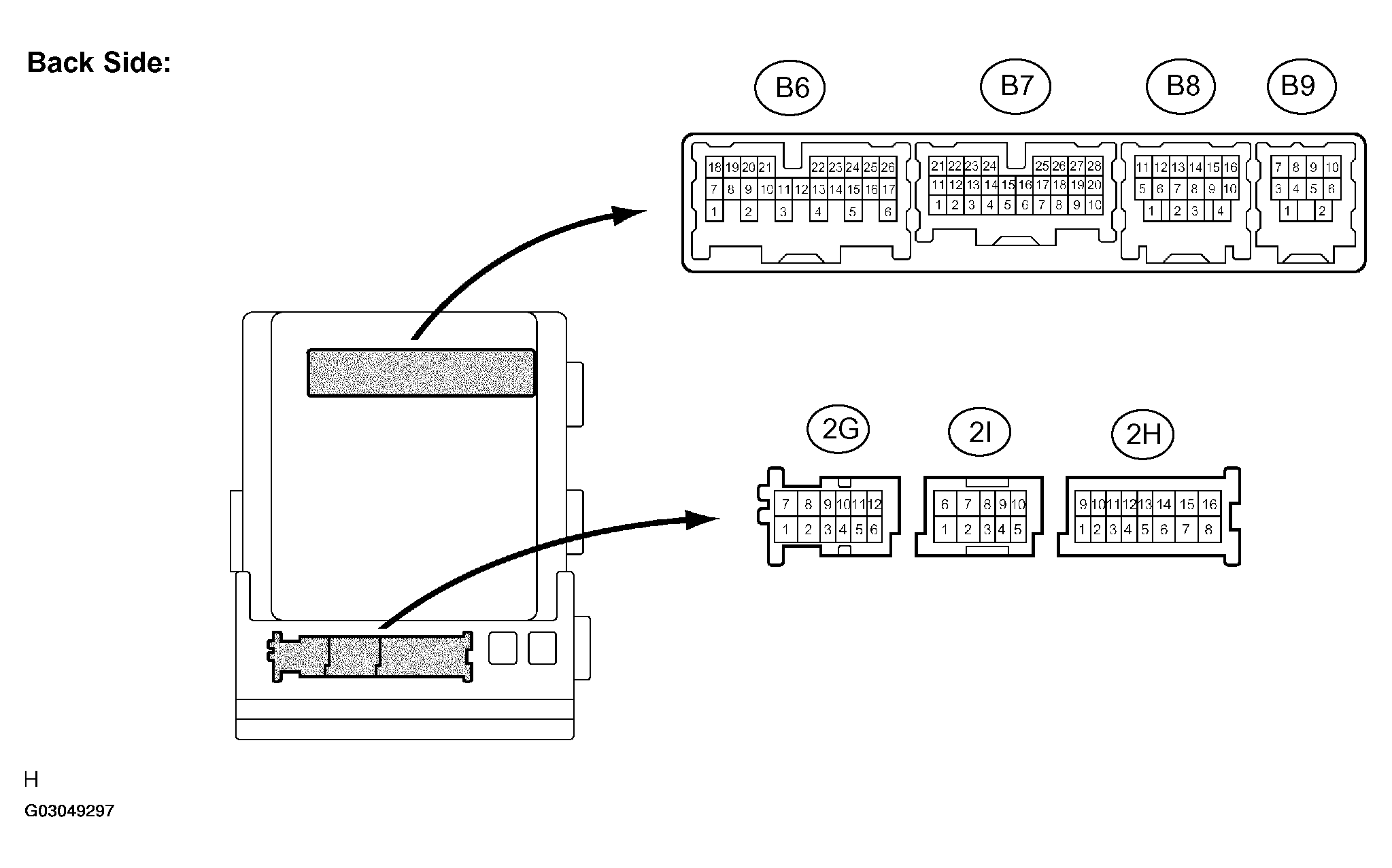

Fig 2: Instrument Panel Junction Block Assy (Multiplex Network Body ECU) Terminals - Back Side
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

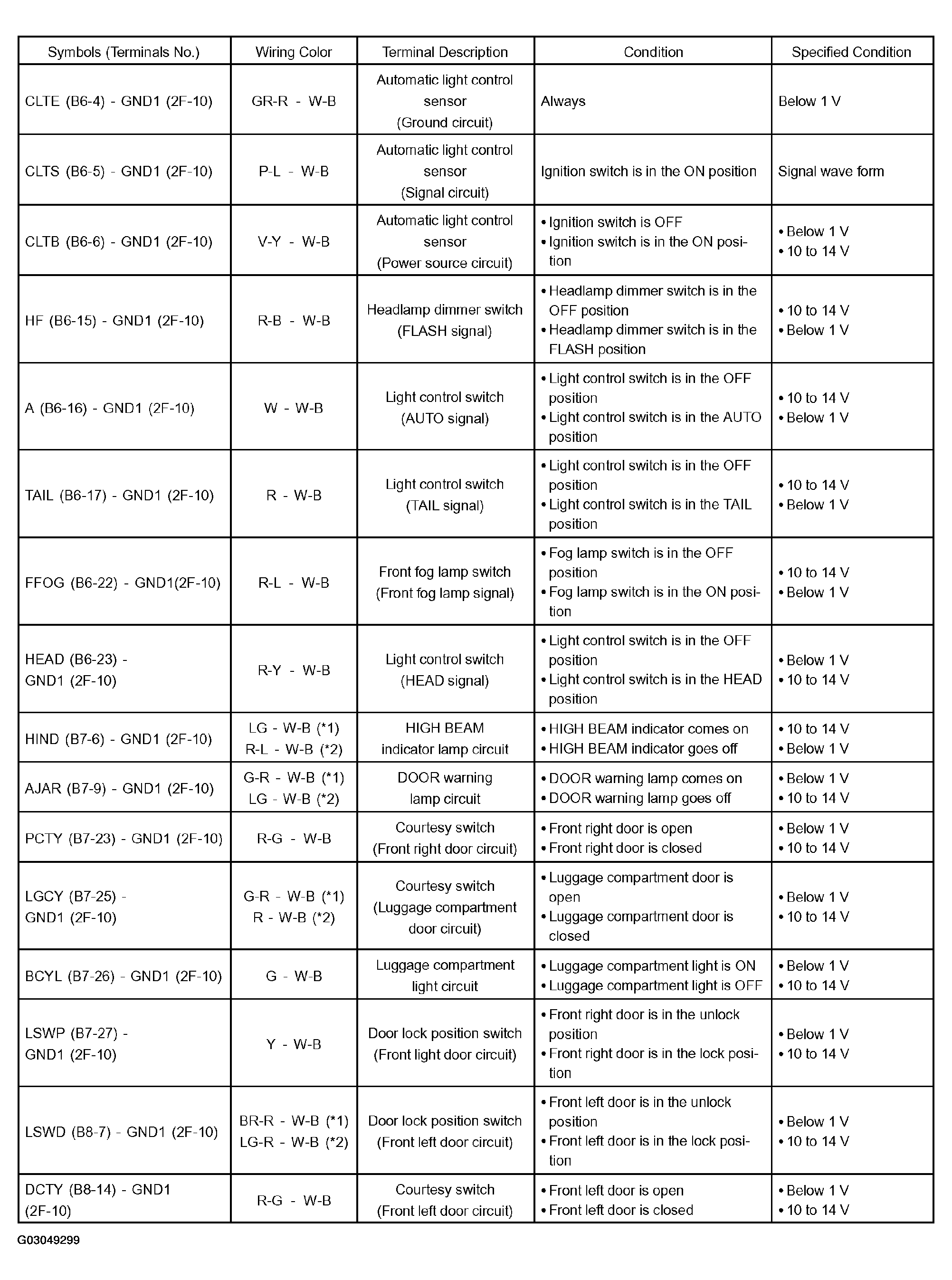

Fig 3: Terminal & Wiring Description Table (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

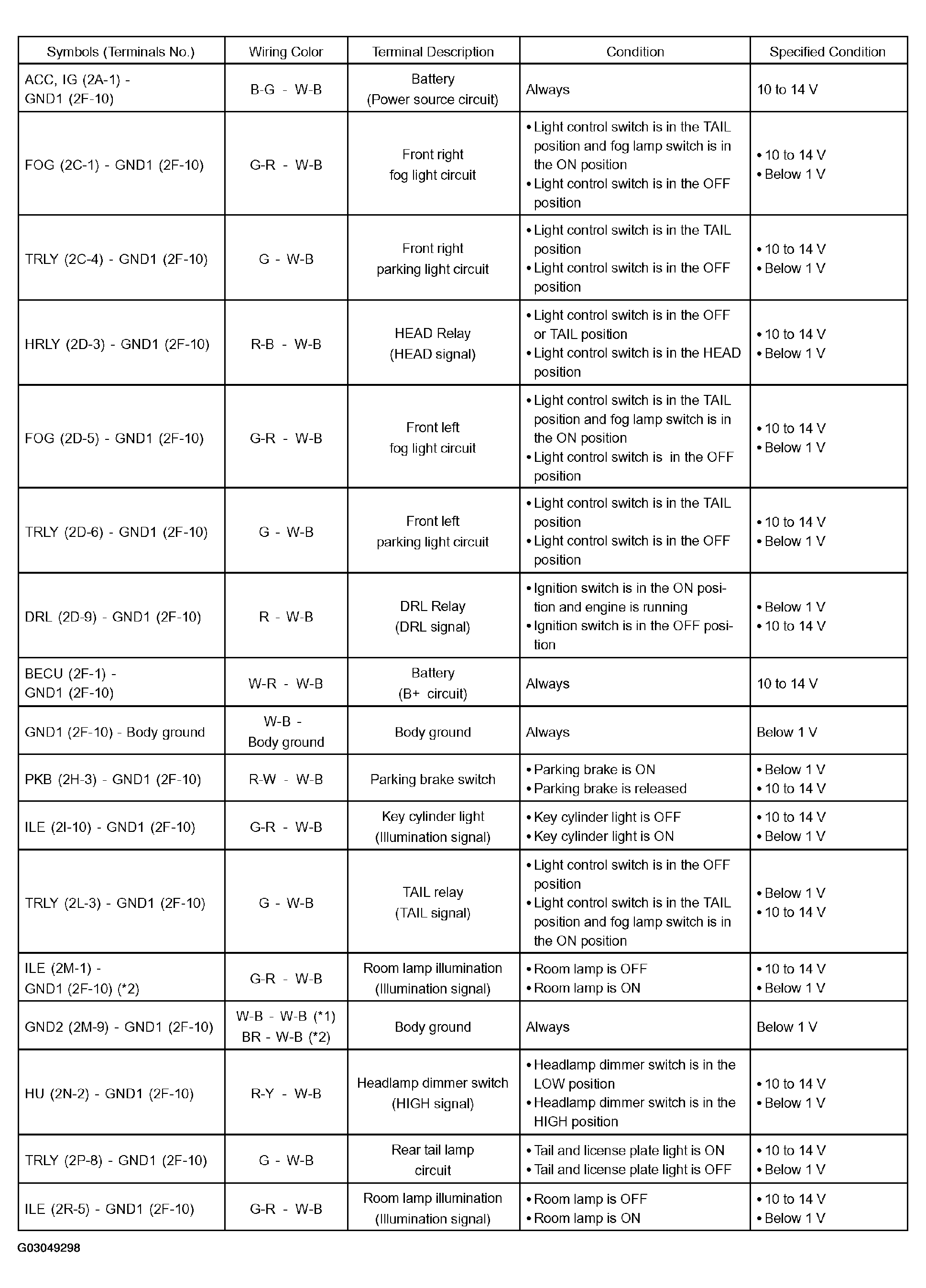

Fig 4: Terminal & Wiring Description Table (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

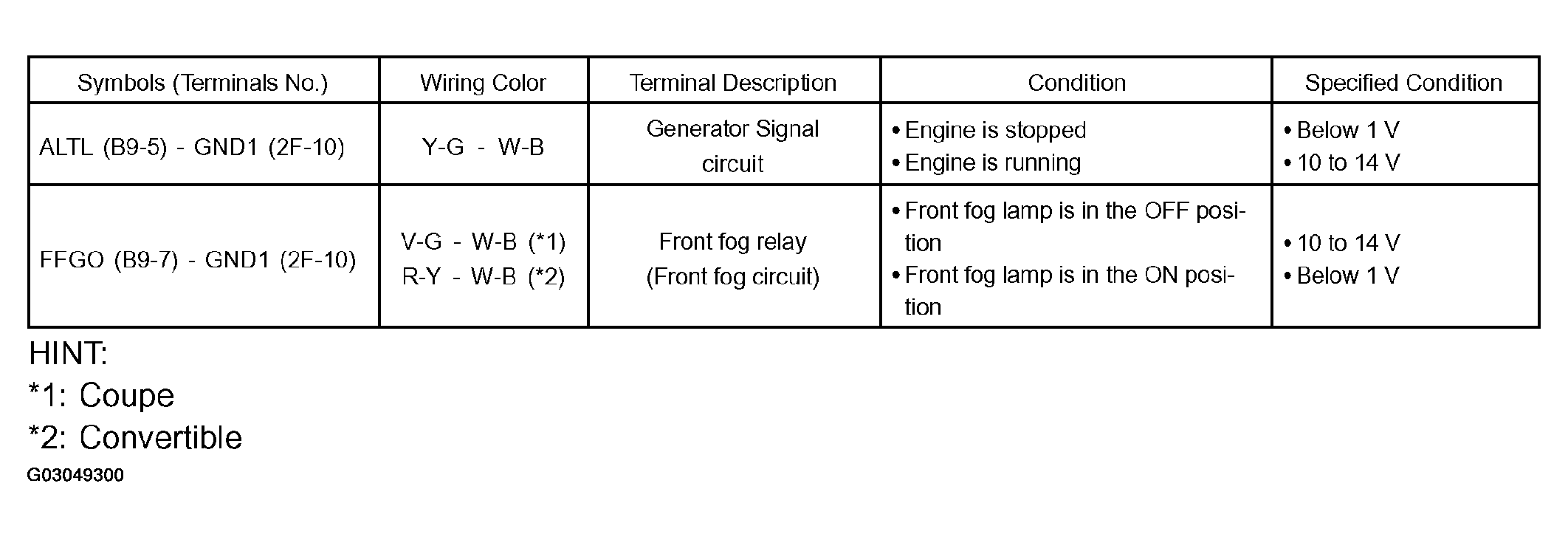

Fig 5: Terminal & Wiring Description Table (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
