Fail-Safe Chart

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

If any of the following codes are recorded, the ECM enters fail-safe mode.

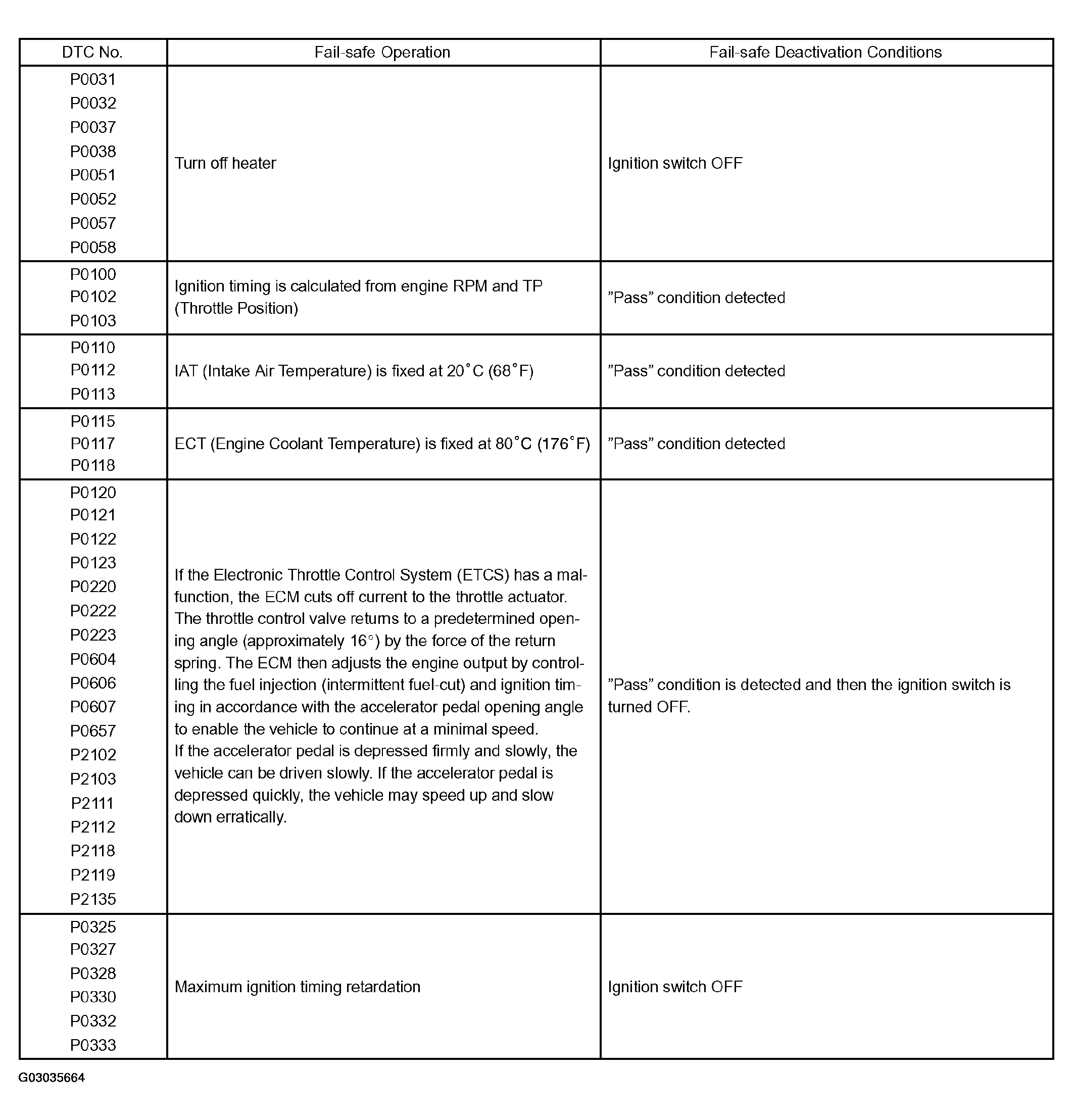

Fig 1: Fail-Safe Chart (1 Of 2)
G03035664Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

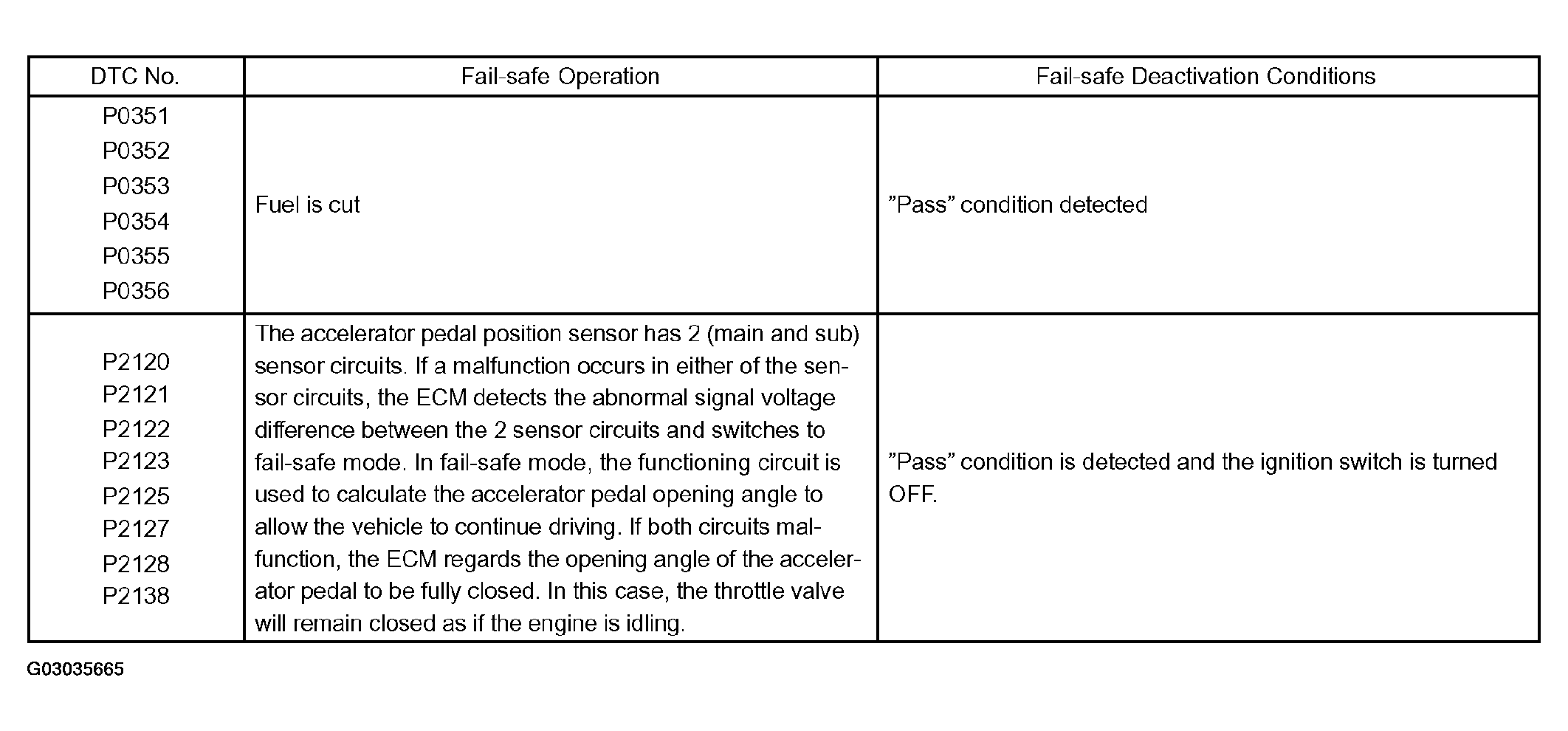

Fig 2: Fail-Safe Chart (2 Of 2)
G03035665Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
