Headlight dimmer switch circuit: Wiring Diagram

WARNING: This page is about a different car, the 2003 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

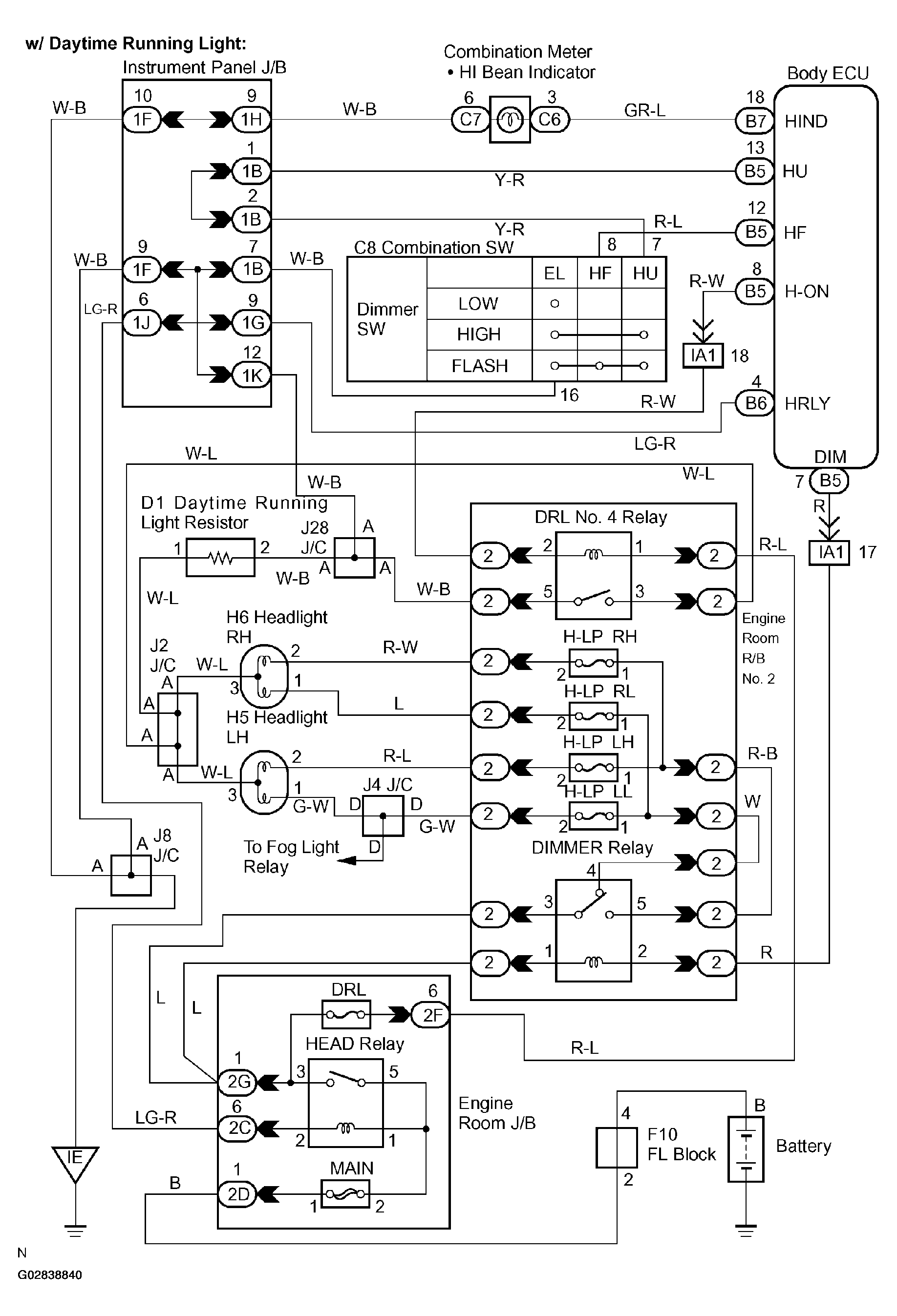

Fig 1: Headlight Dimmer Switch Circuit (W/Daytime Running Light) - Wiring Diagram
G02838840Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

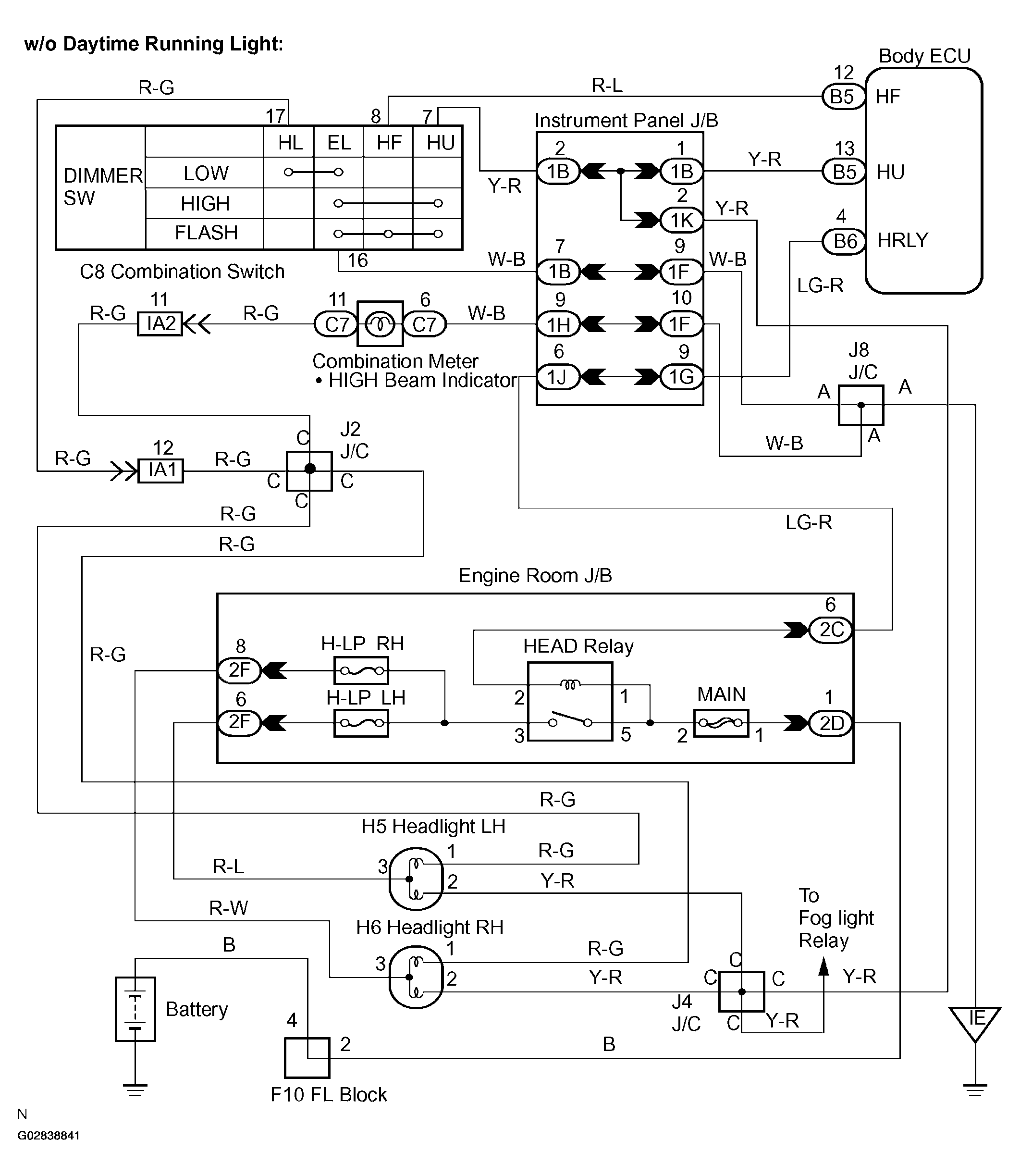

Fig 2: Headlight Dimmer Switch Circuit (W/O Daytime Running Light) - Wiring Diagram
G02838841Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
