Knock Sensor (1NZ-FXE): Components

WARNING: This page is about a different car, the 2004 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

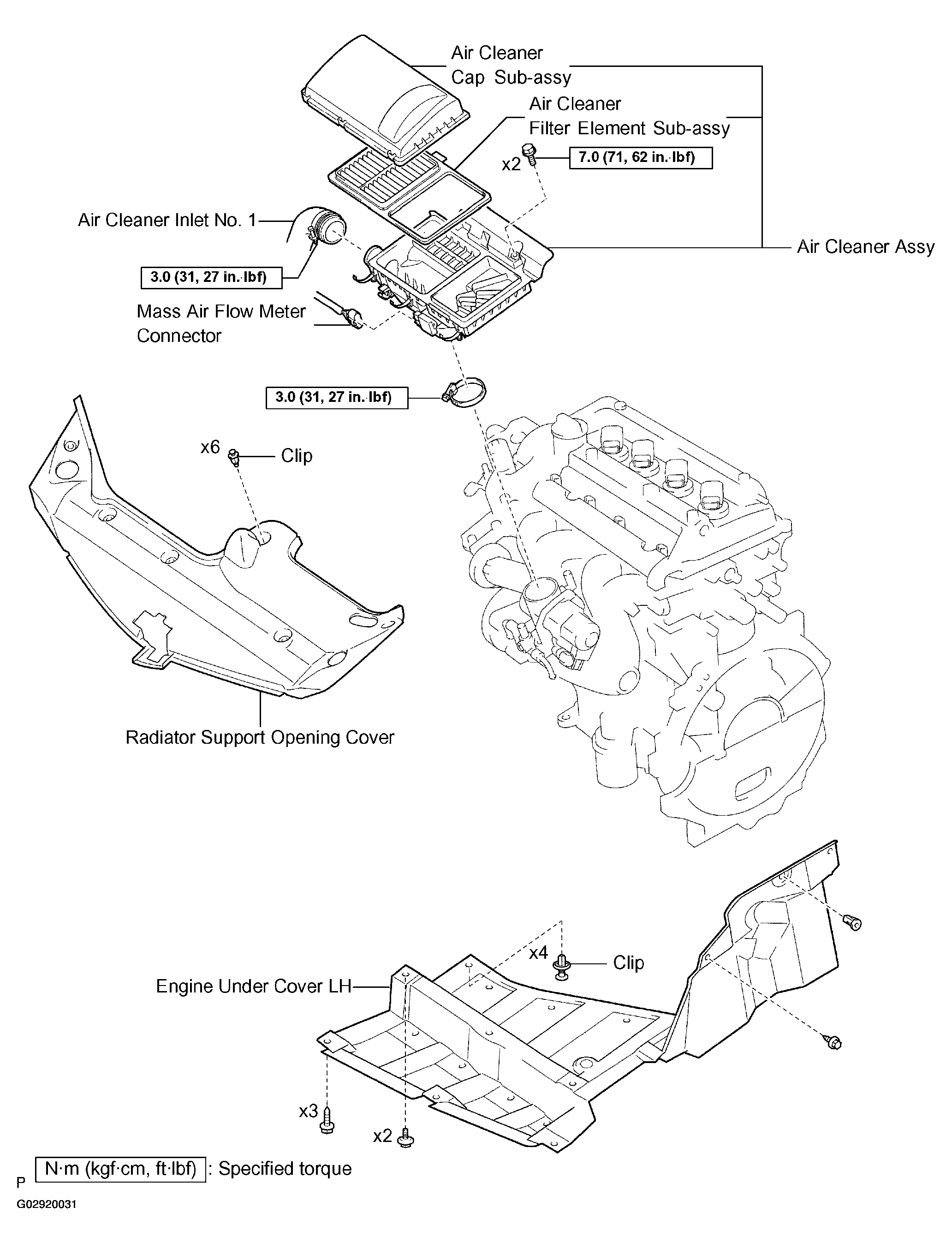

Fig 1: Locating Knock Sensor (1NZ-FXE) Components (1 Of 2)
G02920031Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

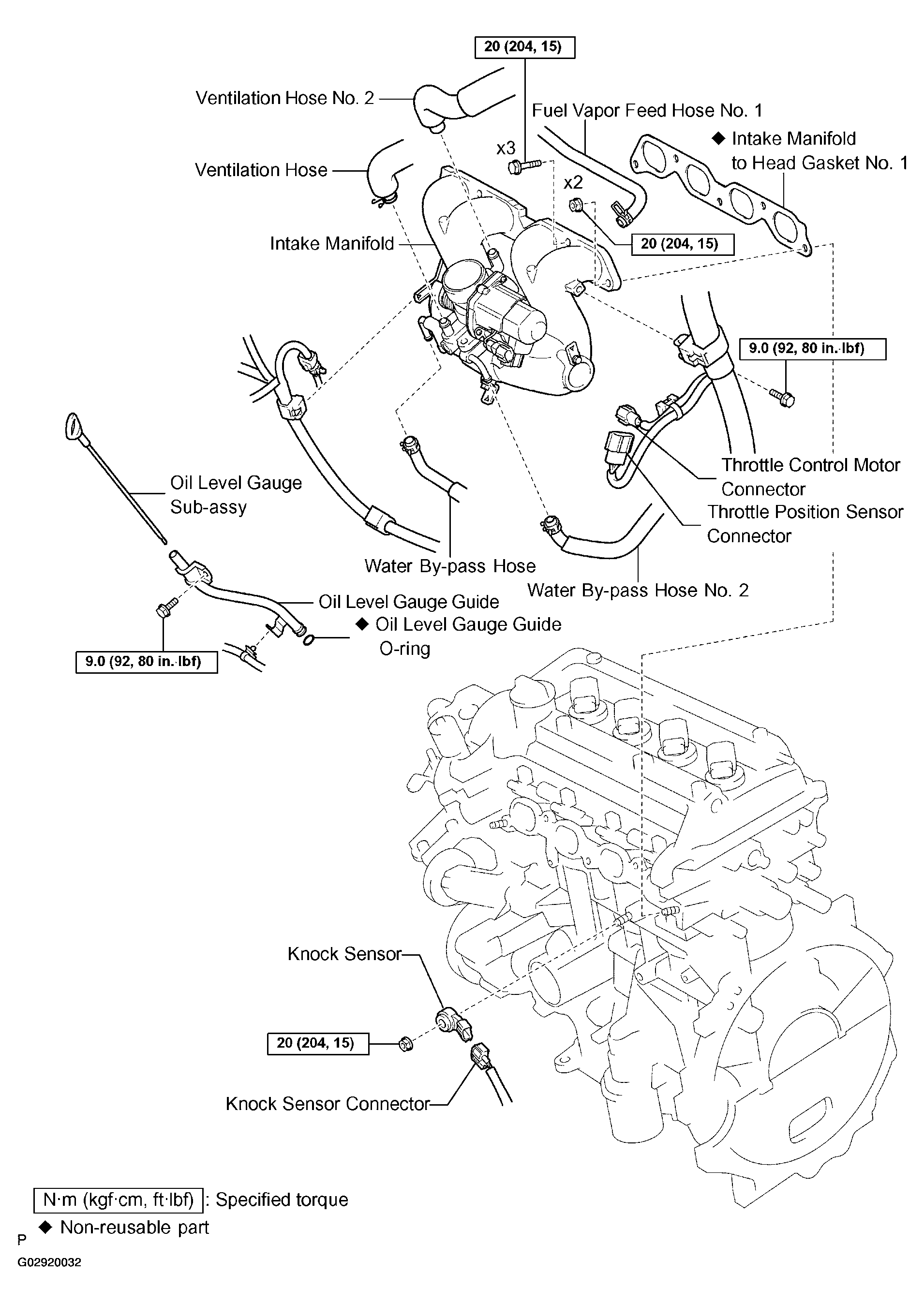

Fig 2: Locating Knock Sensor (1NZ-FXE) Components (2 Of 2)
G02920032Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
