Circuit Inspection

WARNING: This page is about a different car, the 2004 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

How to read and use each page is shown below.

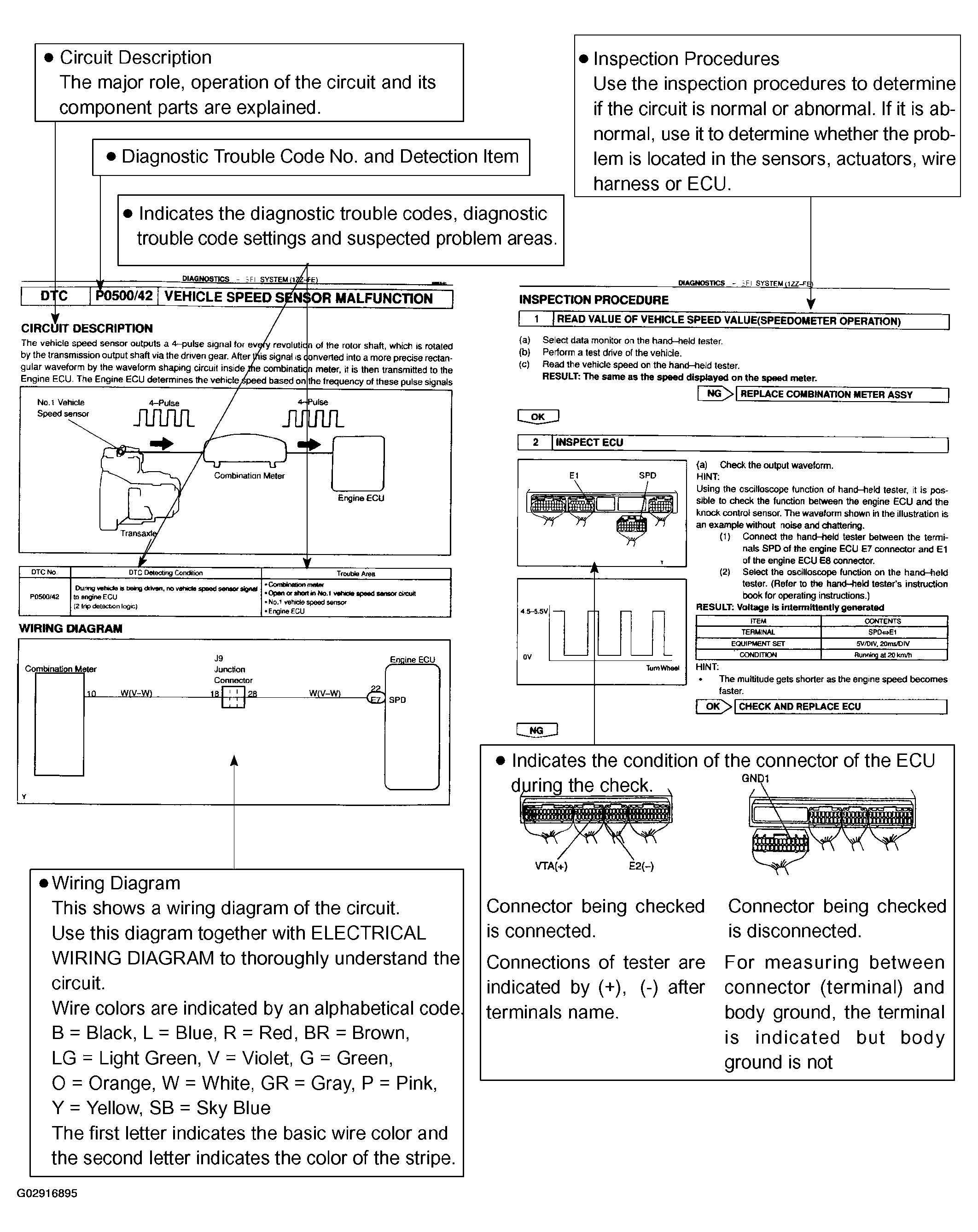

Fig 1: Reading Circuit Description
G02916895Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
