Heater Control Assembly: Removal

WARNING: This page is about a different car, the 2002 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove center cluster integration panel.
    1. Remove the 3 heater control knobs.

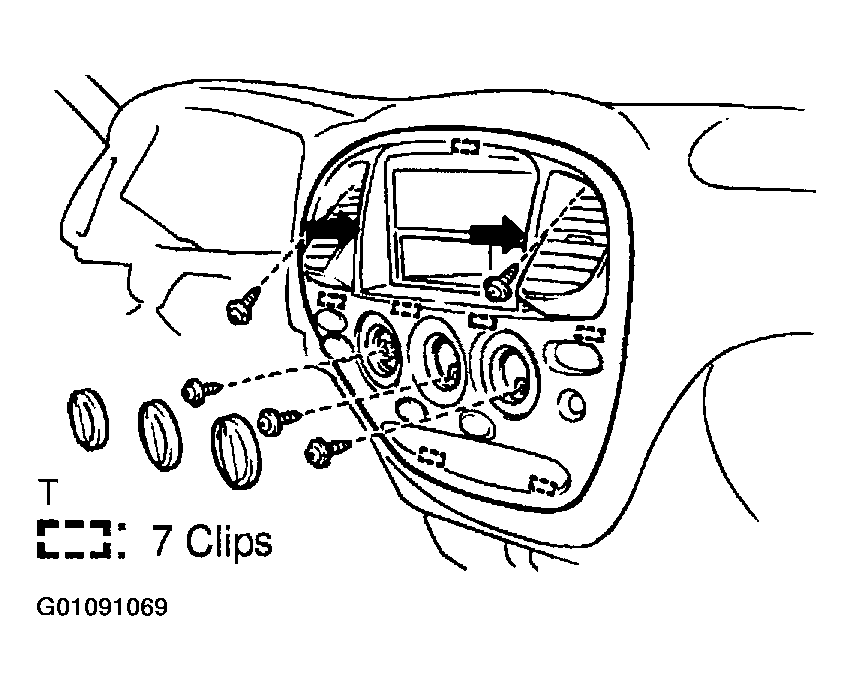

      Fig 1: Locating Knobs & Screws For Removal Of Center Cluster Integration Panel
      G01091069Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 5 screws.
    3. Remove integration control panel by pulling the portions indicated by arrows in Fig 1.
    4. Disconnect the connector.
  2. Remove lower LH finish panel.
  3. Remove heater to register duct No. 2.
  4. Remove glove compartment door.
  5. Remove lower No. 2 finish panel.
  6. Remove heater to register duct No. 4. See step 25 under REMOVAL under INSTRUMENT PANEL.
  7. Disconnect heater control cables.

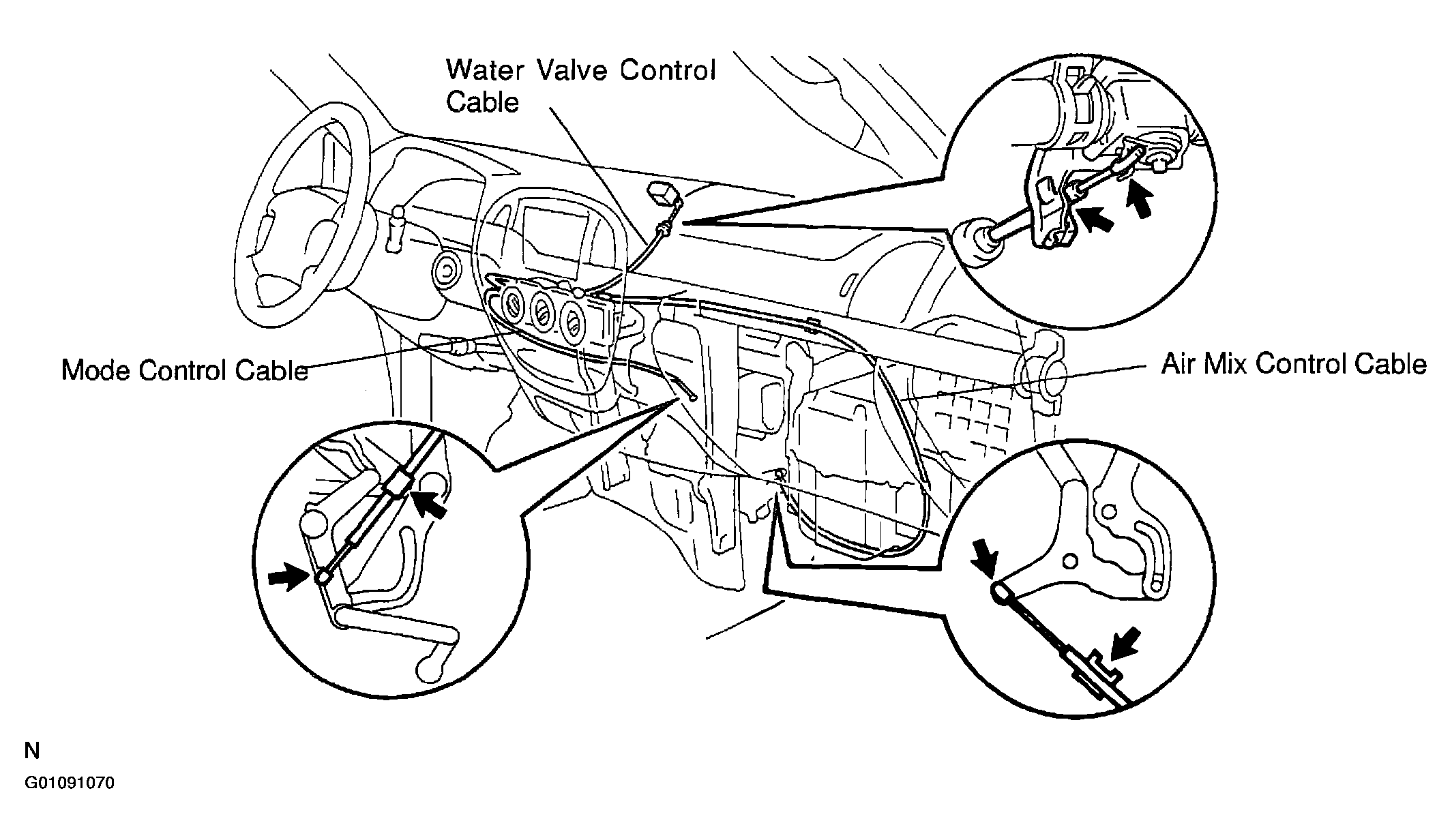

    Fig 2: Locating Control Cables For Disconnection
    G01091070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. Remove heater control assembly.
    1. Remove the heater control assembly, then disconnect the connectors.

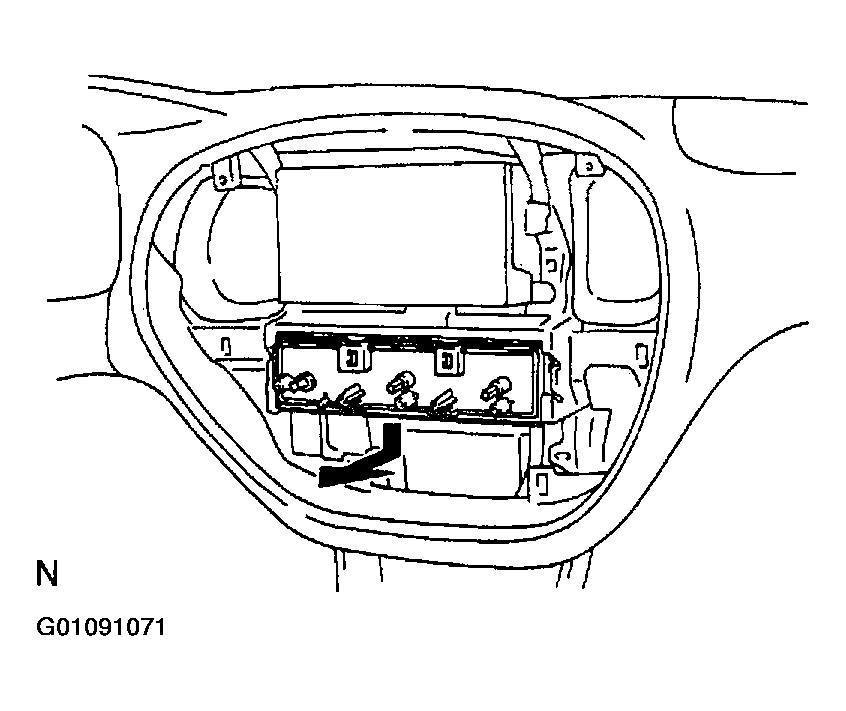

      Fig 3: Removing Heater Control Assembly
      G01091071Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
