Heater Control Assembly: Reassembly

WARNING: This page is about a different car, the 2002 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

Install def. mode switch.
1. Install the switch.
NOTE: After installation, check the 2 fitting claws.

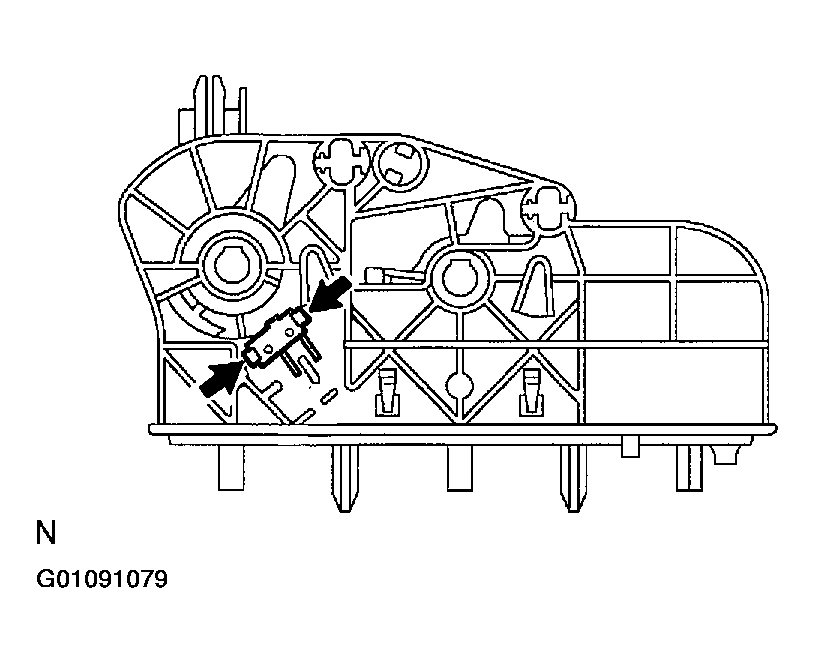

Fig 1: Checking Fitting Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Install blower speed control switch.
1. Install the switch with the 2 screws.

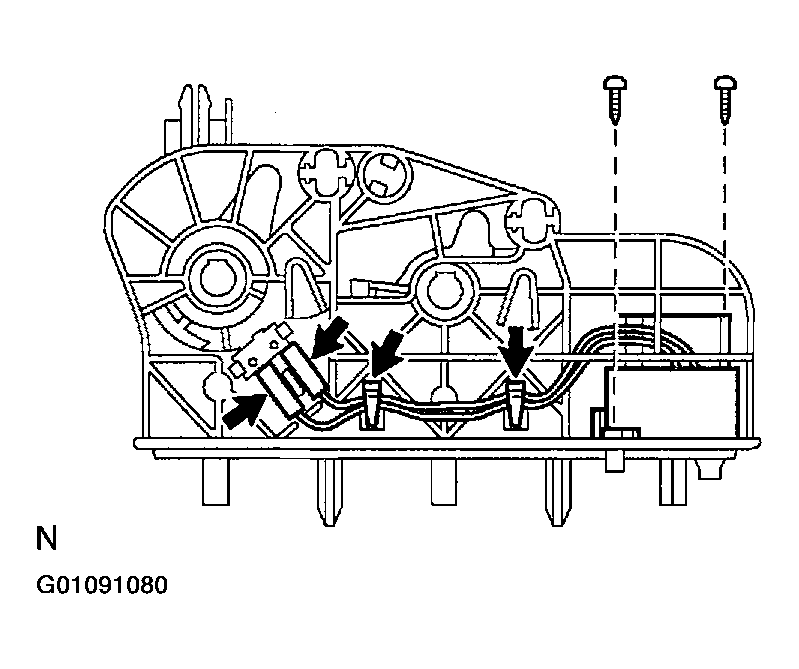

  Fig 2: Locating Screws For Installation Of Blower Speed Control Switch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the connector.
Install heater control cables.
1. Install the heater control cables to the heater control assembly.
