Heater Control Assembly: Installation

WARNING: This page is about a different car, the 2002 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

Install heater control assembly.
1. Connect the connectors.
2. Pass the heater control as shown in Fig 1.

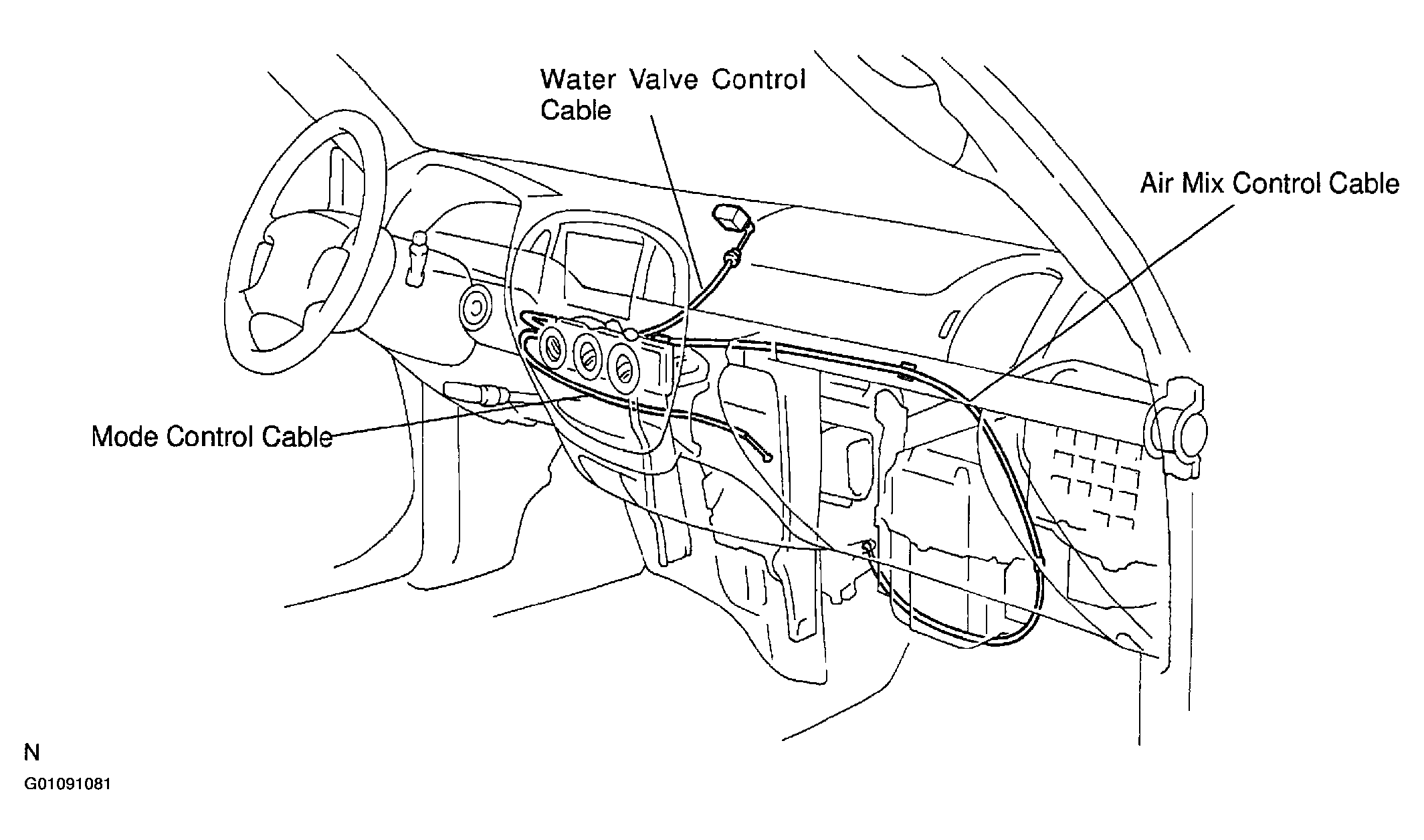

  Fig 1: Identifying Control Cables
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. When using the removed one:
  Install the heater control assembly.

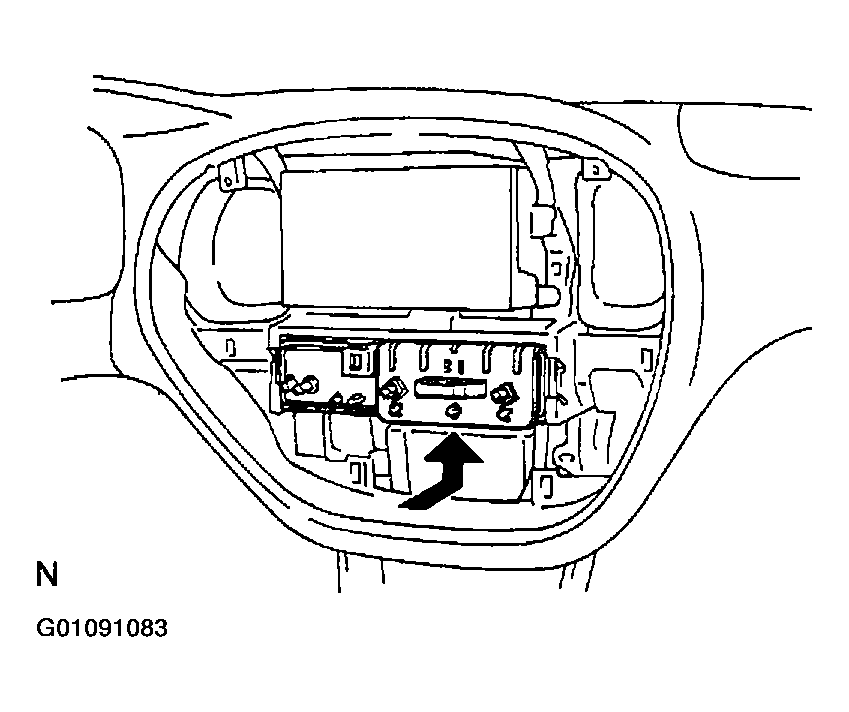

  Fig 2: Re-Installing Heater Control Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. When Using a new one:
  Install the heater control assembly.

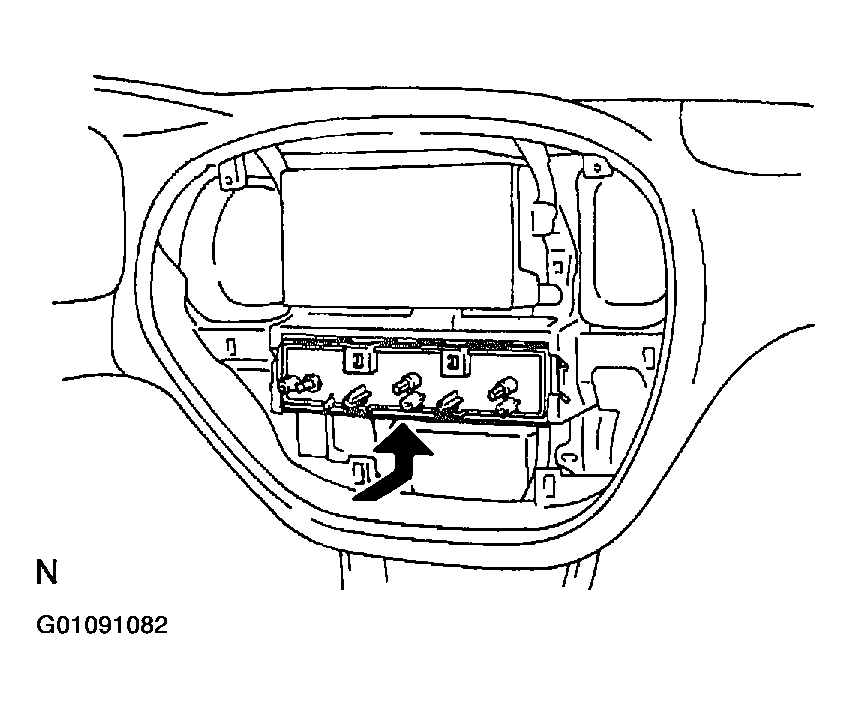

  Fig 3: Installing New Heater Control Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Adjust heater control cables.
1. Set the mode control dial at "FACE" position.
2. Set the temperature control dial at "MAX. COOL" position.
3. Adjust mode control cable.
  1. Pull the air inlet control link to "FACE" position, connect the control cable and lock the clamp.
    NOTE: Lock the clamp during lightly pulling the outer cable in the direction, as shown in Fig 4 by an arrow.
4. Adjust air mix control cable.
  1. Pull the air inlet control link to "COOL" position, connect the control cable and lock the clamp.

    Fig 5: Adjusting Air Mix Control Cable
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  NOTE: Lock the clamp during lightly pushing the outer cable in the direction as shown in Fig 5 by an arrow.
5. Adjust water valve control cable.
  1. Pull the air inlet control link to "COOL" position, connect the control cable and lock the clamp.

    Fig 6: Adjusting Water Valve Control Cable
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NOTE: Lock the clamp during lightly pushing the outer cable in the direction, as shown in the illustration by an arrow.
Install heater to register duct No. 4.
Install lower No. 2 finish panel.
Install glove compartment panel.
Install heater to register duct No. 2
Install lower LH finish panel. See INSTALLATION .
Install center cluster integration panel.
1. When replacing the heater control assembly:
  Pull off the cover.
2. Install the center cluster integration panel, then connect the 2 connectors.
3. Install the 5 screws.

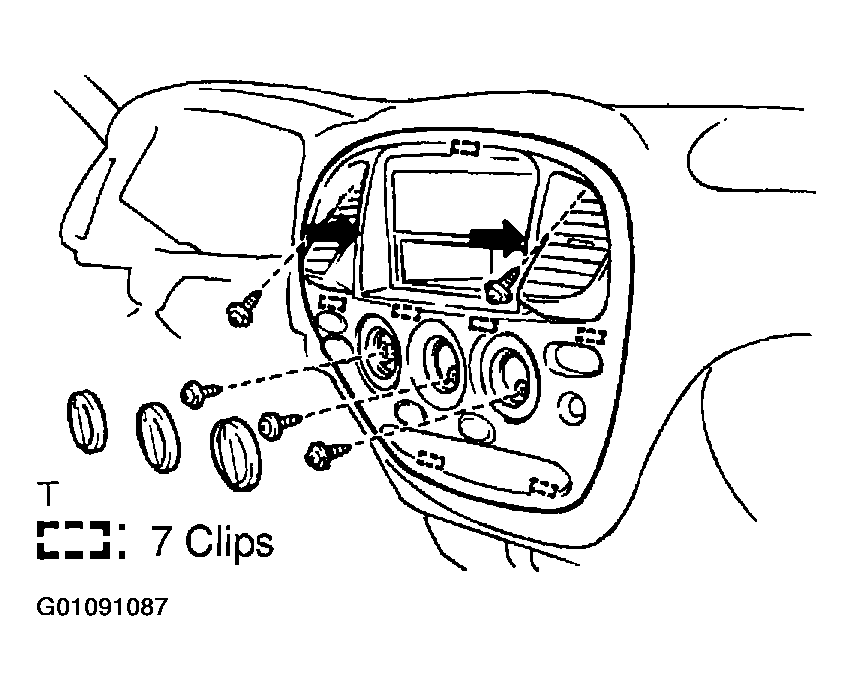

  Fig 7: Locating Knobs & Screws For Installation
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the 3 heater control knobs.
