Circuit Description

WARNING: This page is about a different car, the 2004 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

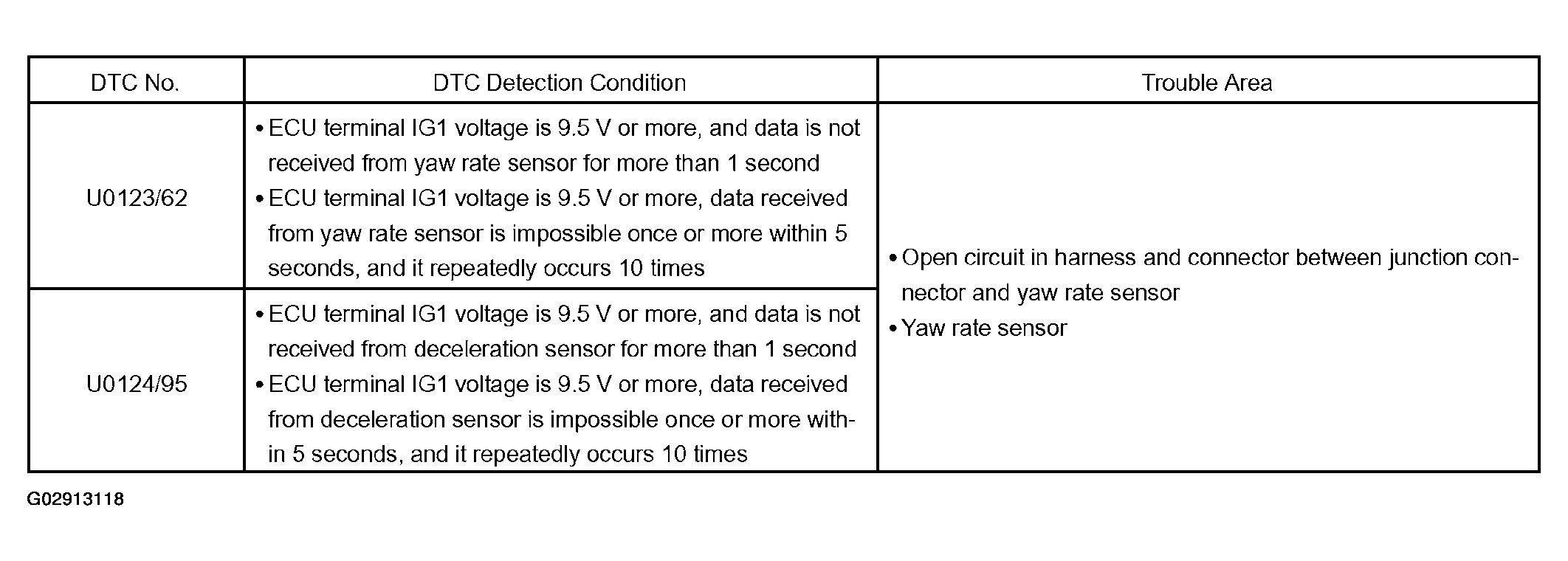

Fig 1: DTC Trouble Detection Table For Yaw Rate Sensor (U0123/62 & U0124/95)
G02913118Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
