Test No. 1: Window Moves Down During Up Operation

WARNING: This page is about a different car, the 2002 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: See Fig 1.

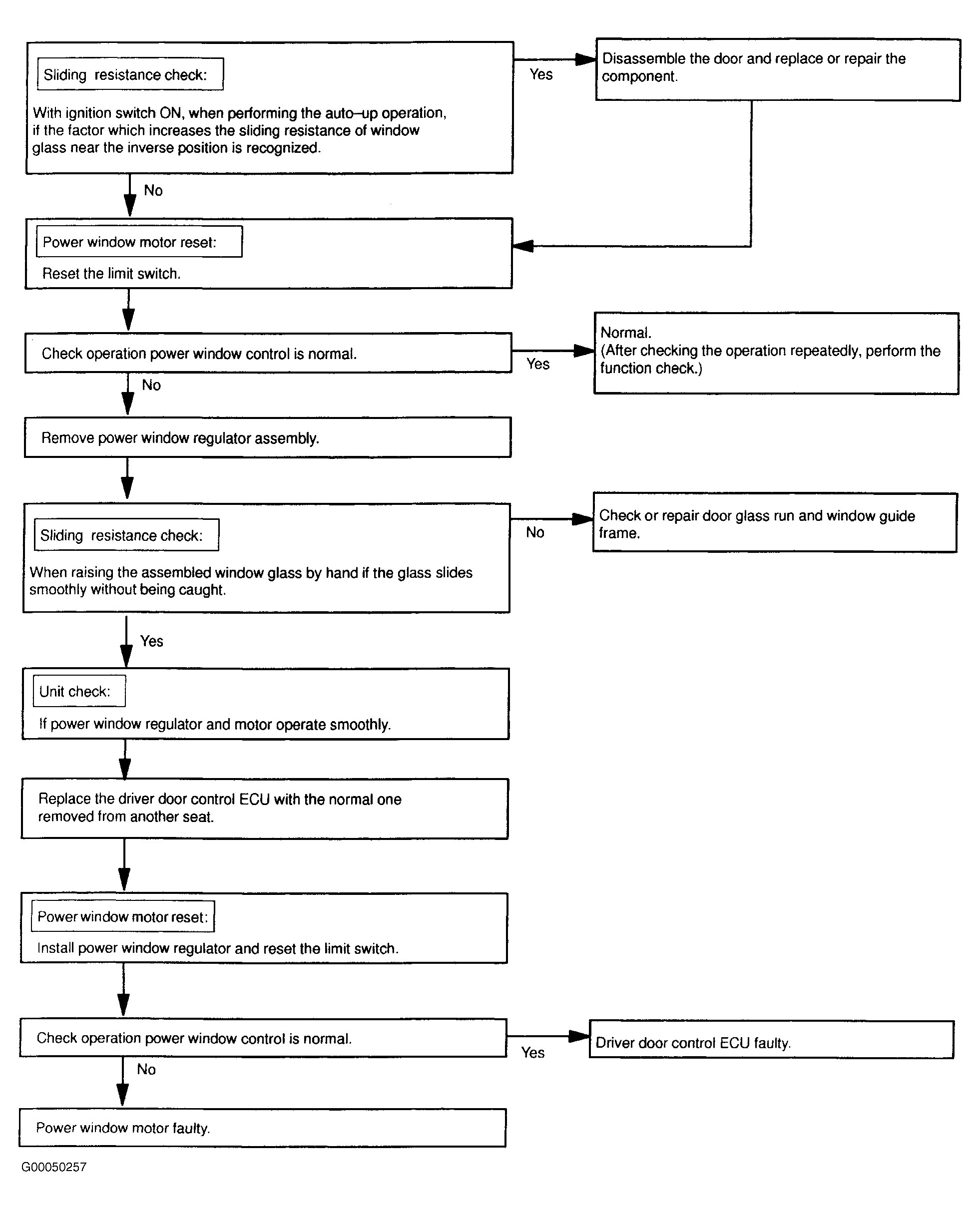

Fig 1: Window Moves Down During Up Operation
G00050257Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
