Stop Light Switch Circuit: Wiring Diagram

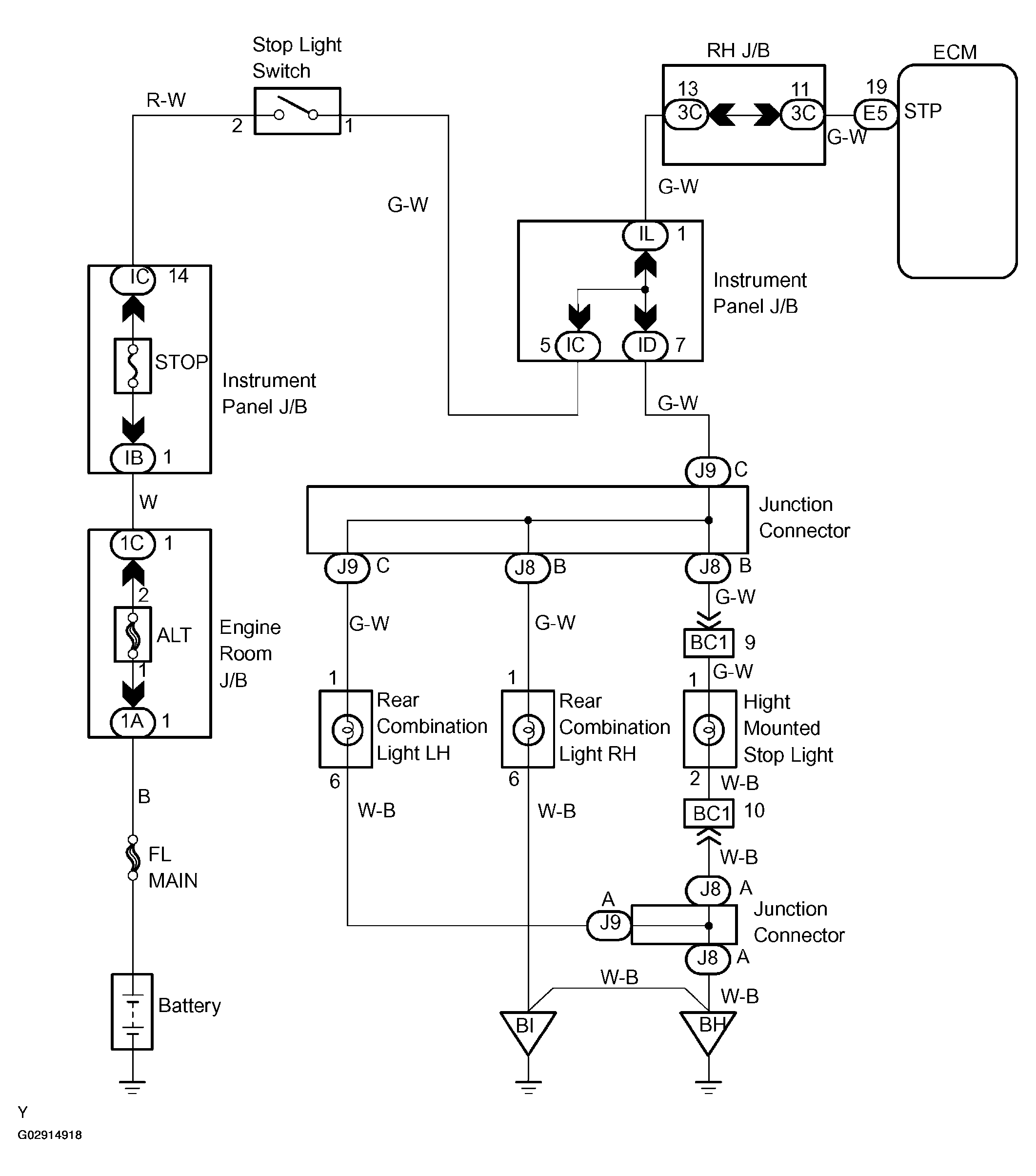

Fig 1: Wiring Diagram Stop Light Switch Circuit

G02914918

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
