Engine Control System (SFI) - Diagnostics (1ZZ-FE)
>>
Fail-Safe Chart
Fail-Safe Chart
If any of the following codes is recorded, the ECM enters the fail-safe mode.

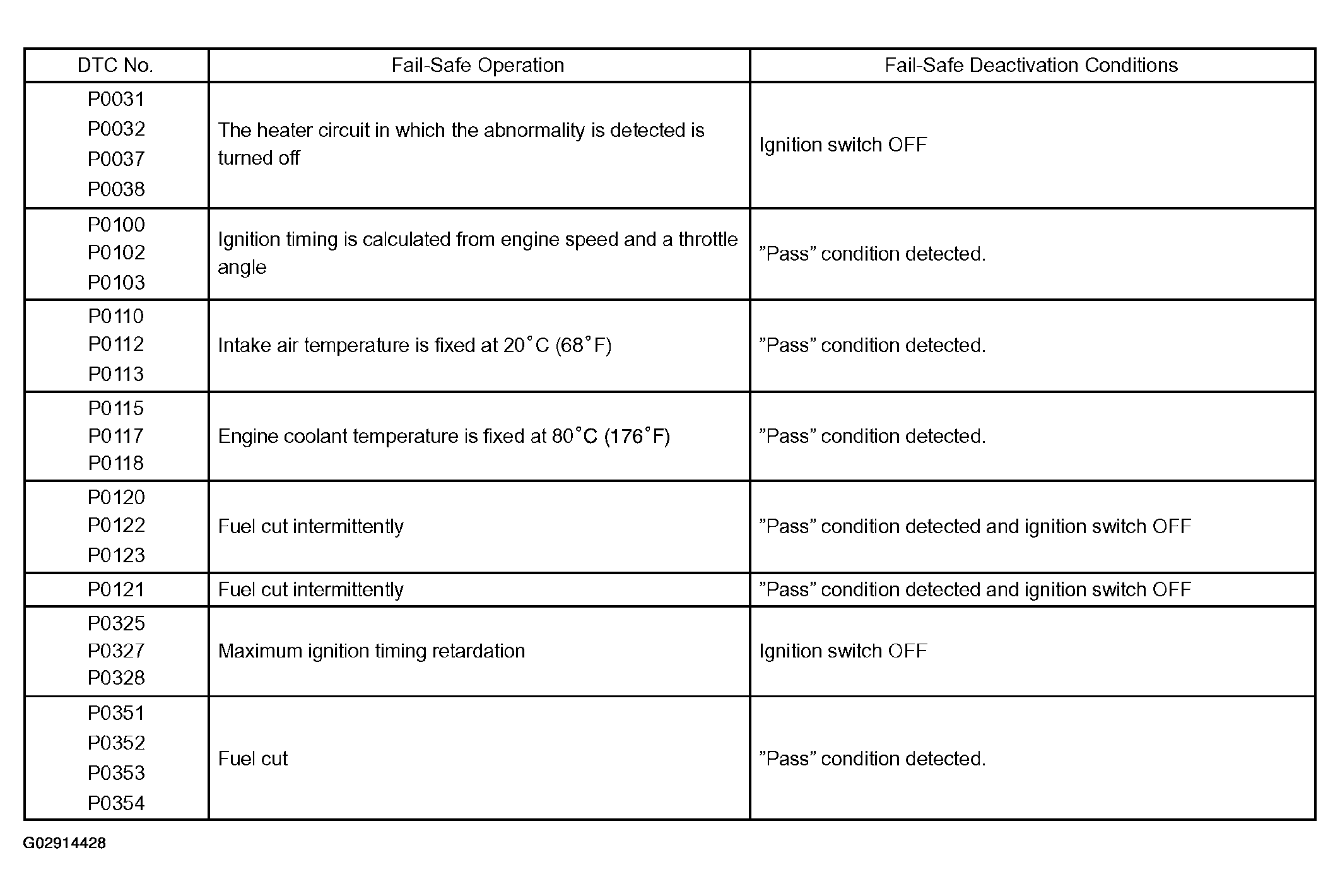

Fig 1: SFI System Fail-Safe Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
