DTC P0617: Starter Relay Circuit High: Wiring Diagram

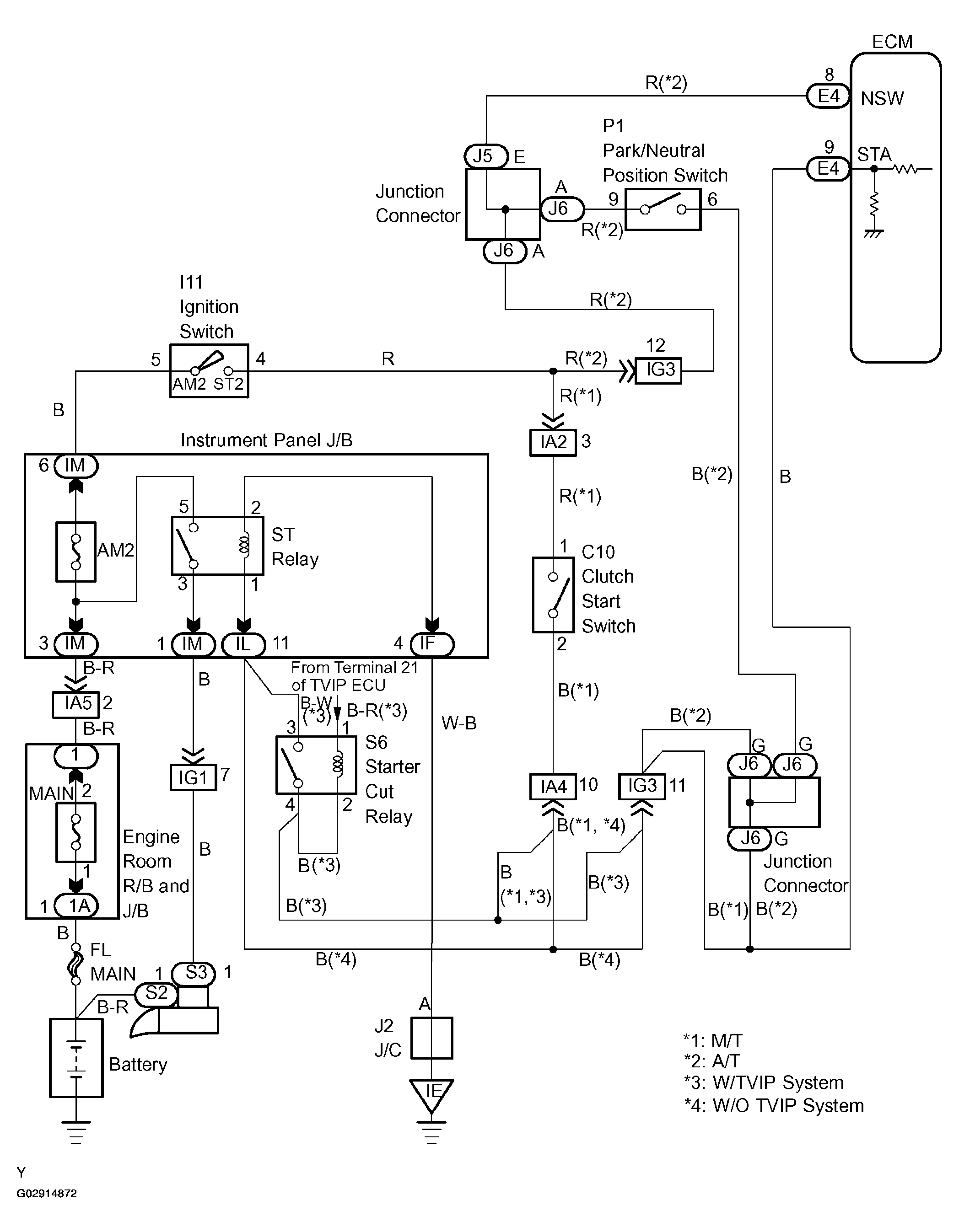

Fig 1: Wiring Diagram - Starter Relay Circuit

G02914872

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
