Engine Control System (SFI) - Diagnostics (1ZZ-FE)
>>
DTC P0505: Idle Air Control System, DTC P0511: Idle Air Control Circuit
>>
Wiring Diagram
DTC P0505: Idle Air Control System, DTC P0511: Idle Air Control Circuit: Wiring Diagram

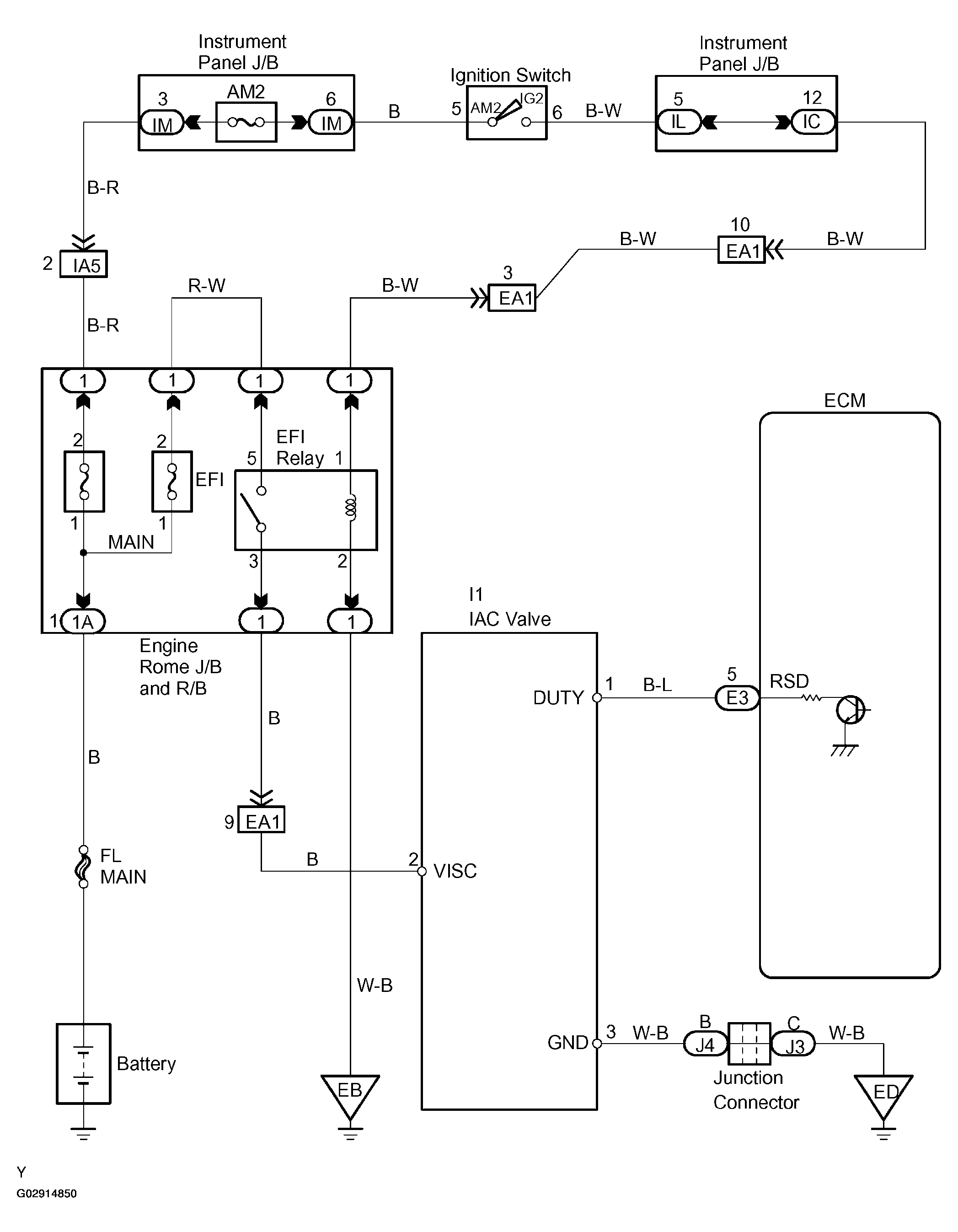

Fig 1: Wiring Diagram - Idle Air Control Circuit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
