Monitor Strategy

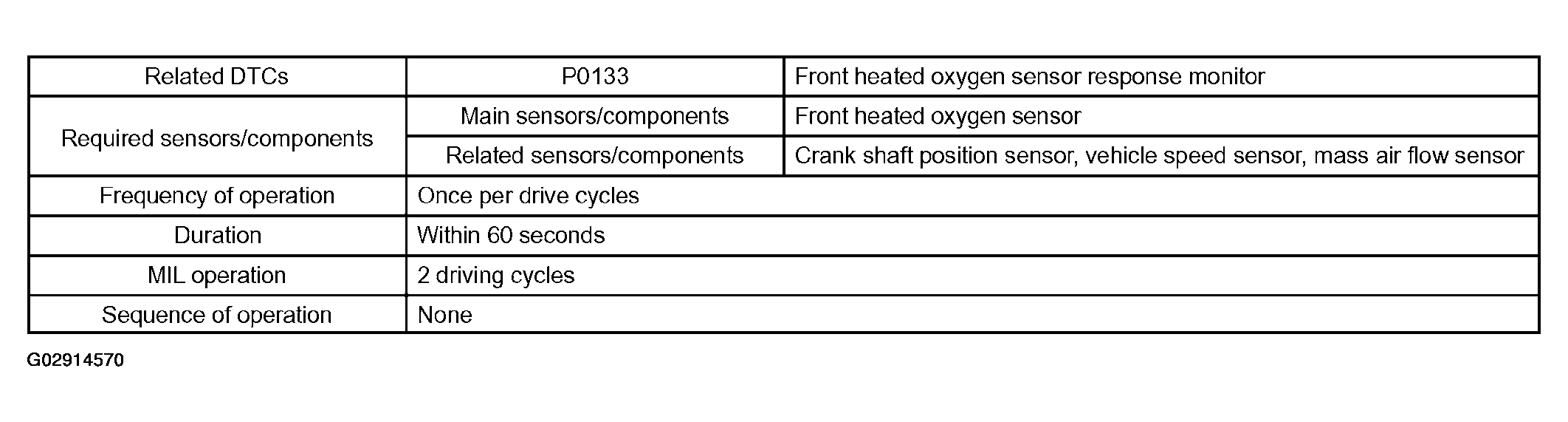

Fig 1: Monitor Strategy Table
G02914570Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
