Home >> Toyota >> 2004 >> Matrix Base, FWD, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System (SFI) - Diagnostics (1ZZ-FE) >> DTC P0116: Engine Coolant Temp. Circuit Range/Performance Problem >> Typical Enabling Conditions

Typical Enabling Conditions

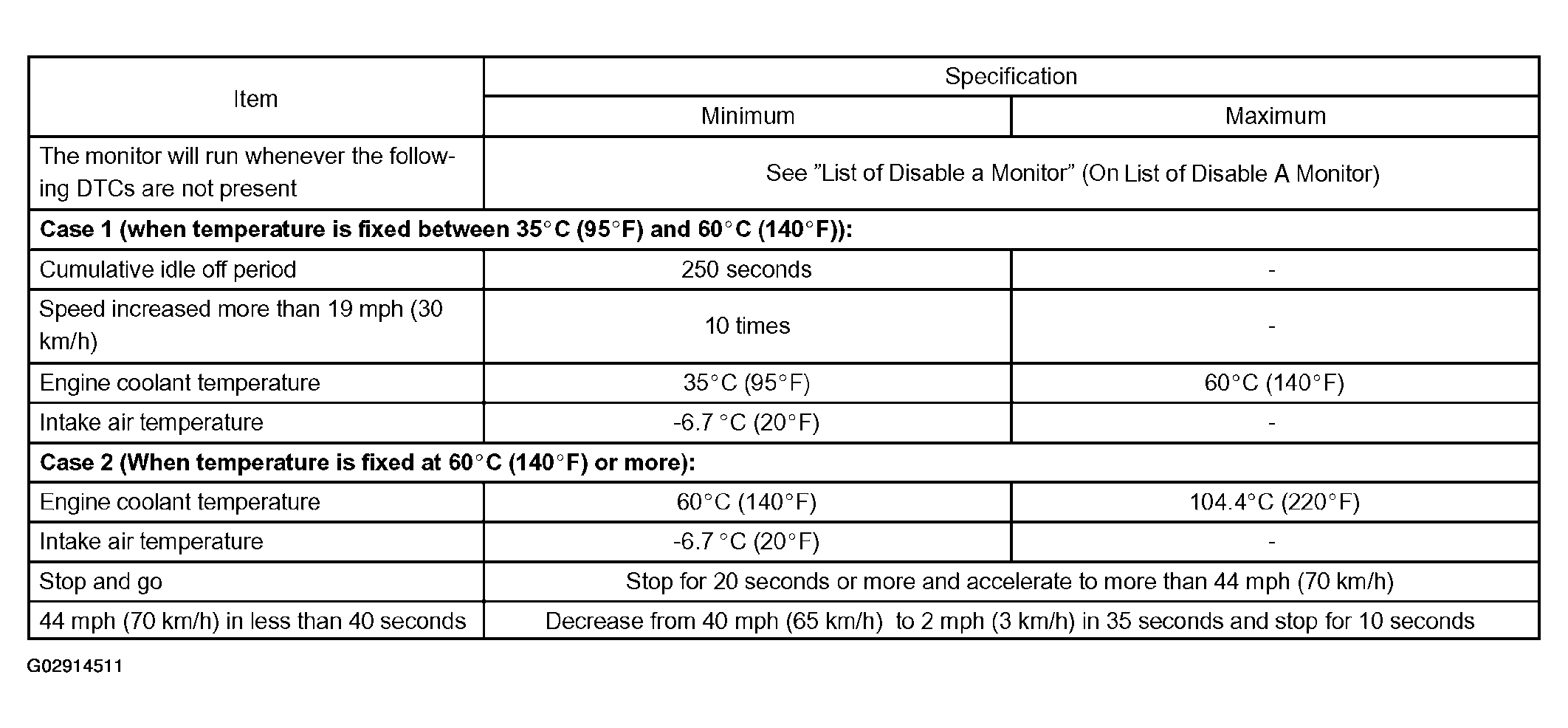

Fig 1: Typical Enabling Conditions Table
G02914511Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
